Grinding Machines - Conventional

Cylindrical Grinding Machine with Internal Grinding
DANOBAT 2500 RP

1992; Grinding dia. 348 mm; btw centres 2500 mm; centre height 175 mm; work spindle drive 0.75 kw; grinding spindle motor 7.5 kw; internal grinding power 1.1 kw; swing-down internal grinding attachment, dressing unit, Marposs measuring, steady.

Proposal Number: V-4534

Click here and receive a full specification by email

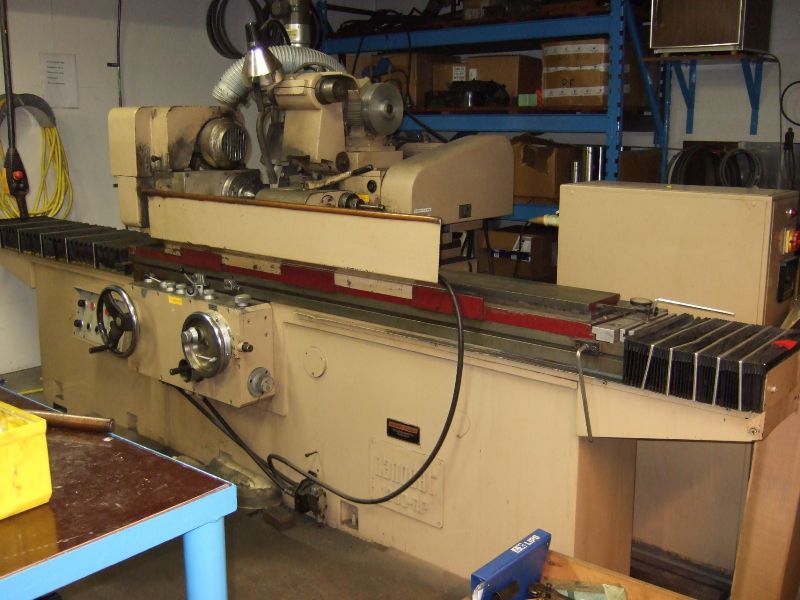

Universal Cylindrical Grinder with Internal Grinding
DANOBAT RP1200

1972; Centre height 170 mm; grinding Ø 340 mm; between centres 1200 mm; grinding length 1200 mm; grinding wheel Ø 500 mm; bore 203 mm; width 50 mm; motor 7.5 KW; spindle speeds up to 500 rpm; 3-jaw chuck 160 mm Ø; 4-jaw chuck 160 mm; internal grinding: Ø 20/340 mm; length 250 mm; taper grinding 5 deg; with swivelling grinding / workpiece spindle & internal grinding attachment.

Proposal Number: V-4798

Click here and receive a full specification by email

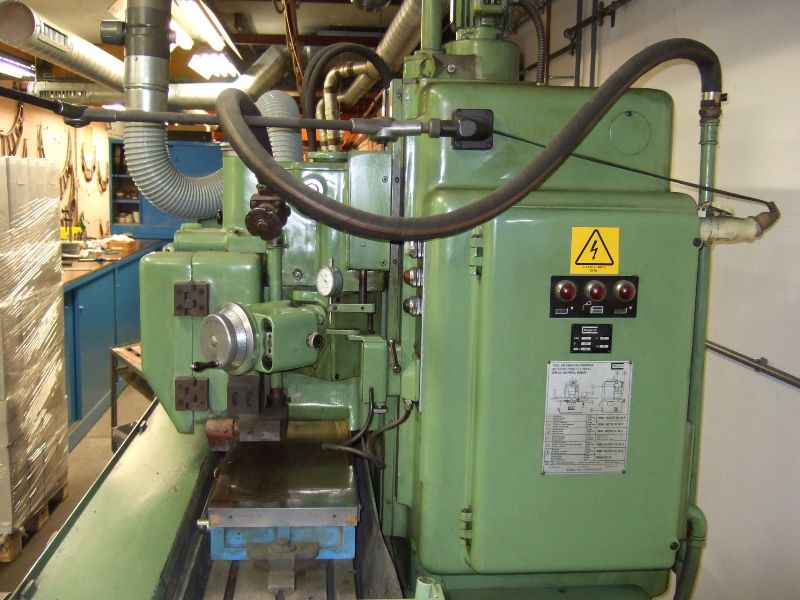

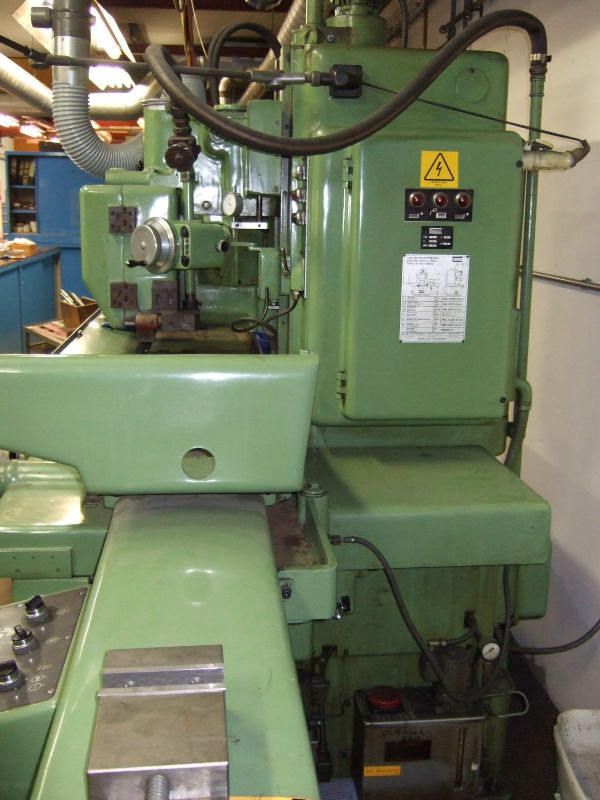

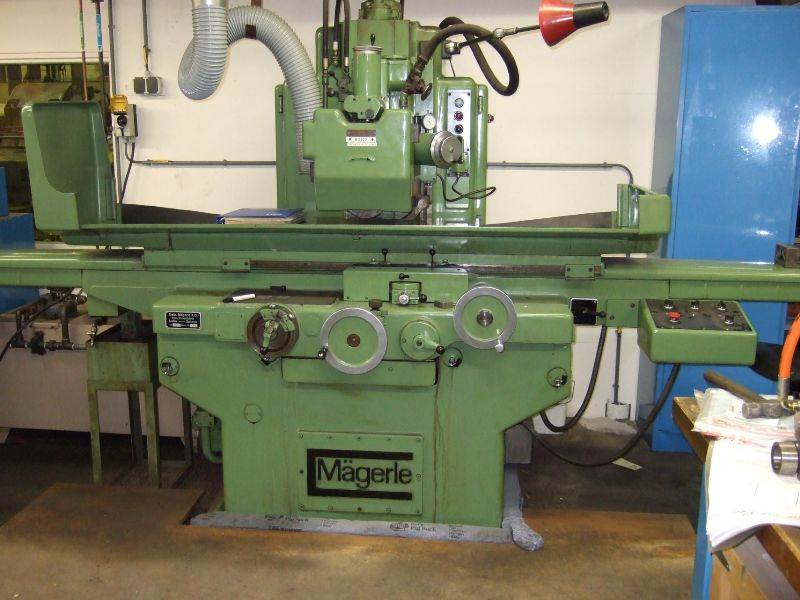

Conventional Surface Grinder
MAGERLE F12

1974; Table 1250 x 240 mm; grinding length 1200 mm; grinding width 300 mm; spindle to table 130 / 555 mm; travel 1330 mm; table cross travel 270 mm; grinding wheel travel 425 mm; dia 220 / 300 mm; wheel bore 127 mm; width 30 mm.

Proposal Number: V-4799

Click here and receive a full specification by email

Universal Circular Roll Grinding Machine
Schaudt AR1000

1968; Grinding dia. with / w'out steady 160 / 250 mm; length 1000 mm; centre height 180 mm; work spindle bore 38 mm, swivel 90 deg; grinding spindle swivel 30 deg; 350 kw work between centres, 50 kg work in the chuck; Grinding wheel: dia 500 mm, width 80 mm, bore 203 mm. lots of accessories, v good condition.

Proposal Number: V-4058

Click here and receive a full specification by email

Surface Grinding Machine with Rotary Grinding Head
ZOCCA RPVA 2000/600

1973; Magnetic table size 2200 x 600 mm; Grinding area 2000 x 600 mm; Vertical spindle with rotary segment grinding head; Grinding motor 75 KW; Wet grinding facility with magnetic separator.
