Vertical CNC Machining Centres
Vertical 5-Axis Machining Centre
Makino D800Z
Manufactured new in 2020 by Makino Japan
2 Axis NC Rotary Tilting Table.
Table diameter 800 mm.
Table load max. 1200 kg.
Rotary axis C axis 360°.
Tilting axis B axis 0° ~ -180°.
Workpiece diameter max. 1000 mm.
Workpiece height max. 500 mm.
X axis 1200 mm.
Y axis 1100 mm.
Z axis 650 mm.
Cutting feeds X,Y,Z to 36000 mm/min.
Cutting feeds C,B to 18000 °/min.
Spindle drive motor rating 18.5/22 KW.
Spindle speeds 50 - 18000 rpm.
Torque at the spindle max. 239 Nm.
Tool taper HSK-A100.
Tool magazine positions - 117.
Tool diameter max. 140 mm.
Tool length max. 350 mm.
Tool weight max. 20 kg.
Used sparingly for test piece reference machining CLEAN ROOM - 550 spindle run hours !
Proposal Number: MV-6394
Click here to Contact Us for more details
Vertical 5-Axis Machining Centres – Mill-/Turn Centres

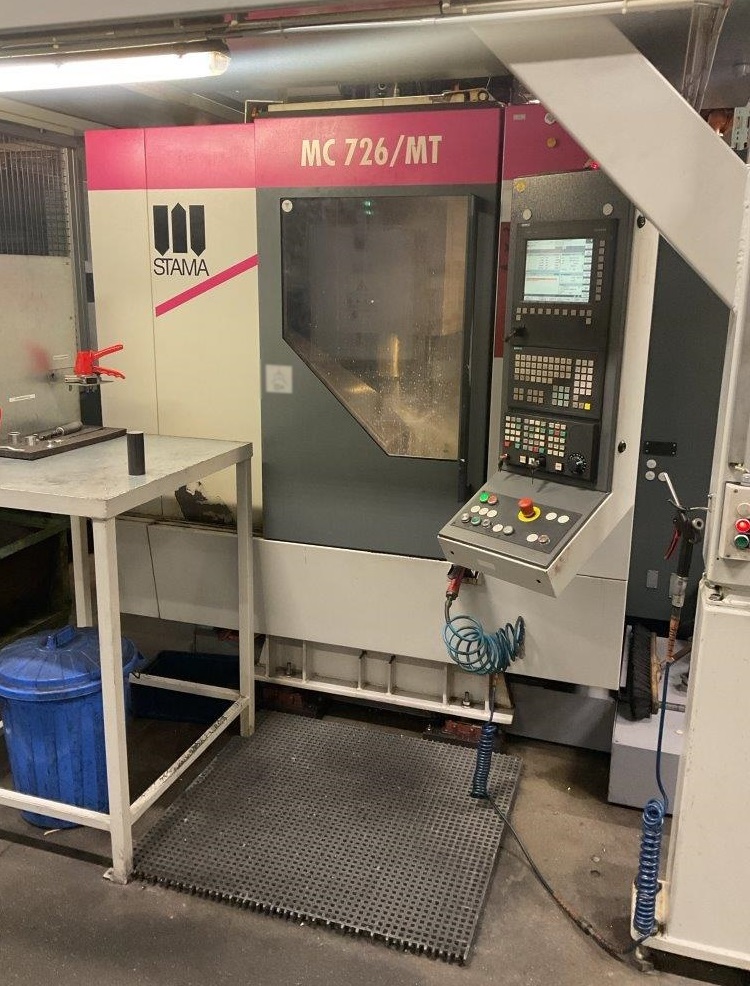

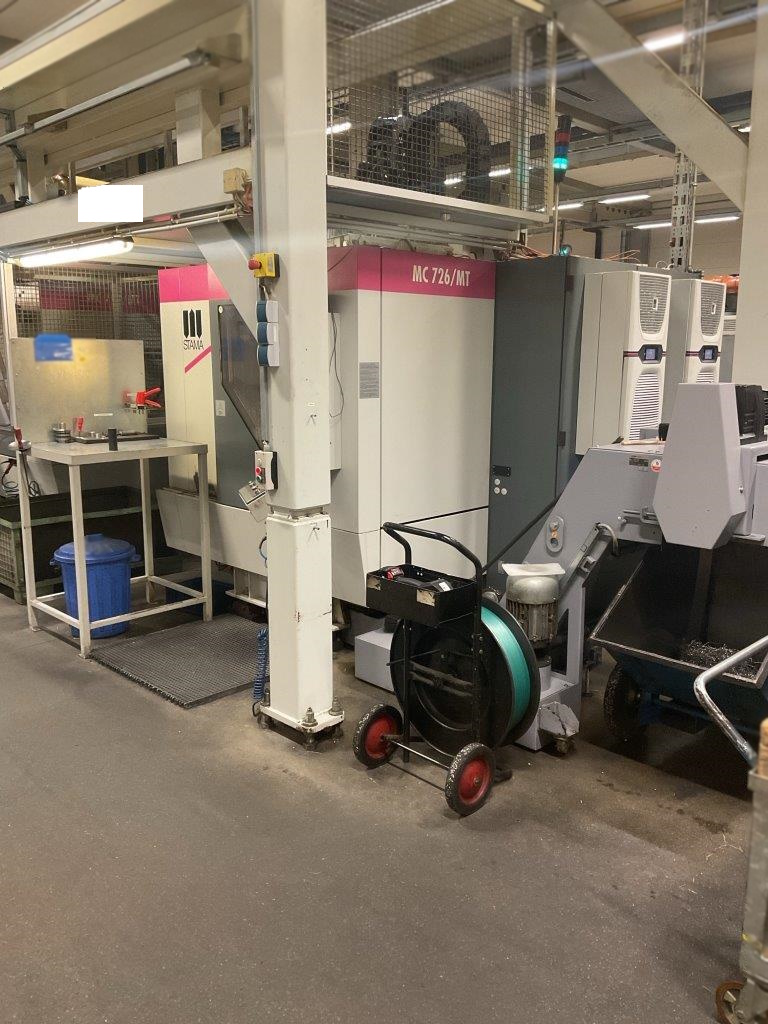

2 units Stama MC726/MT – Milling / Turning – from billet
Year 2008

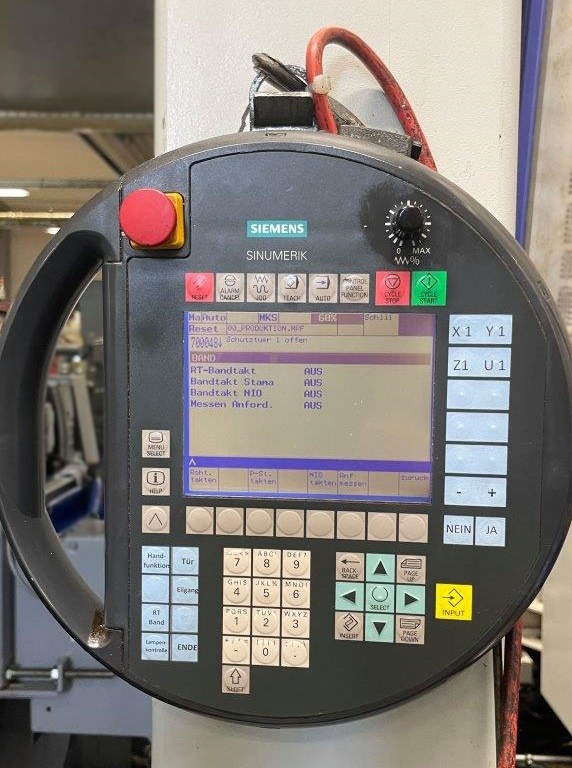

Siemens Sinumerik 840D sl CNC

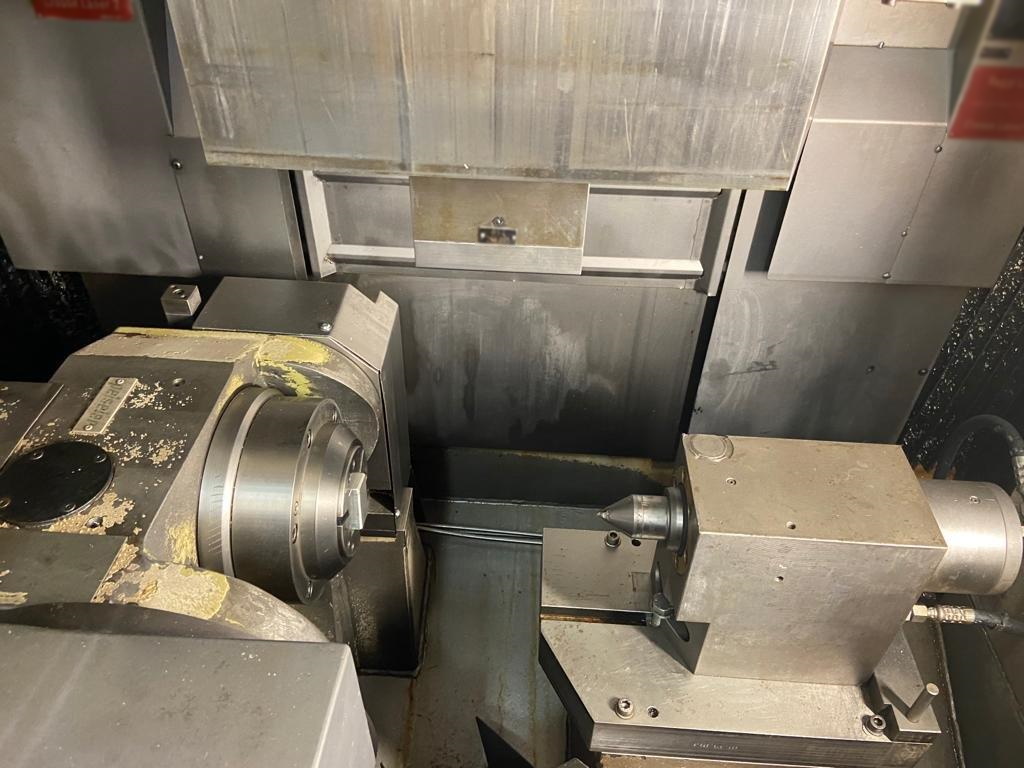

2-Axis NC Rotary / Tilting table with collet chuck
Clamping capacity 15 ~ 80 mm diameter
C-Axis 360°
A-Axis 120°
X 500 mm
Y 380 mm
Z 360 mm
42 station ATC
Turning spindle 20/50KW / 4000 rpm
Milling spindle 17/37 KW / 10500 rpm
2 x machines available as a machining cell or individual machines sale

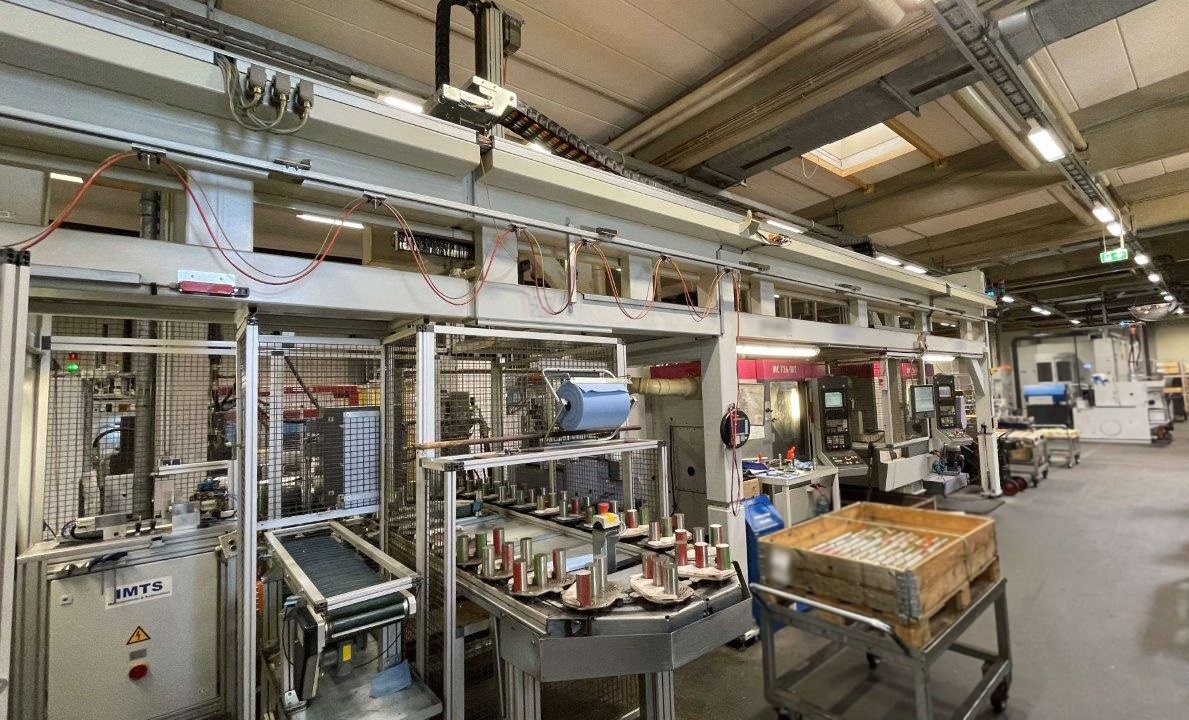

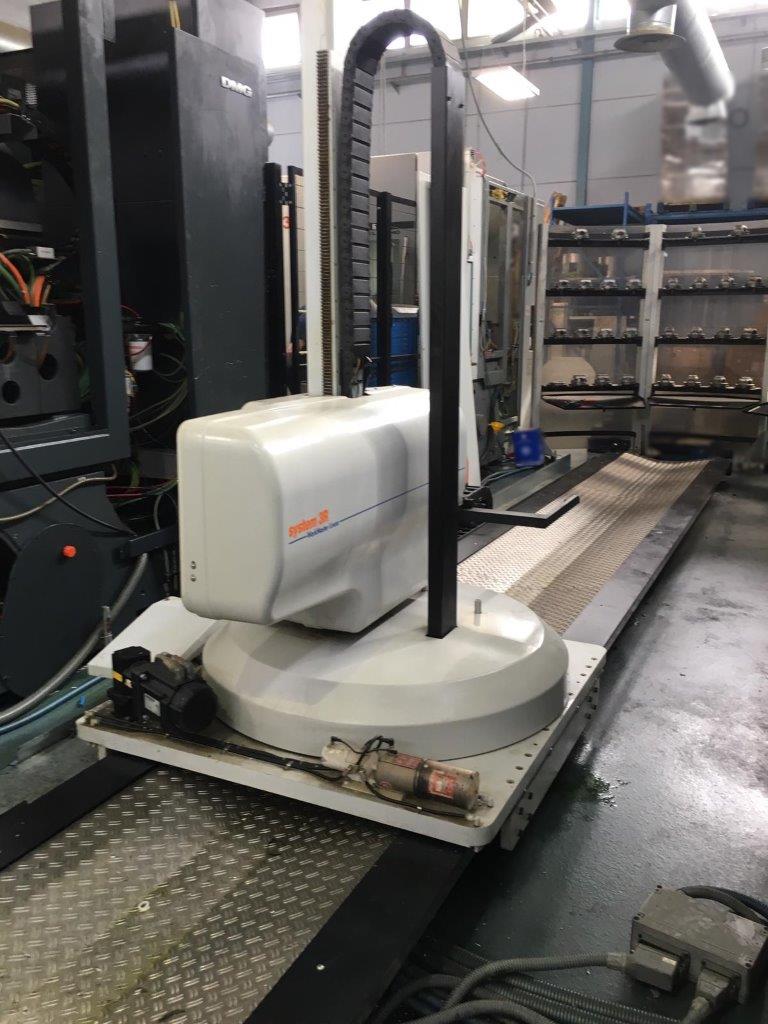

Equipped with a Promot Gantry loader and parts conveyor

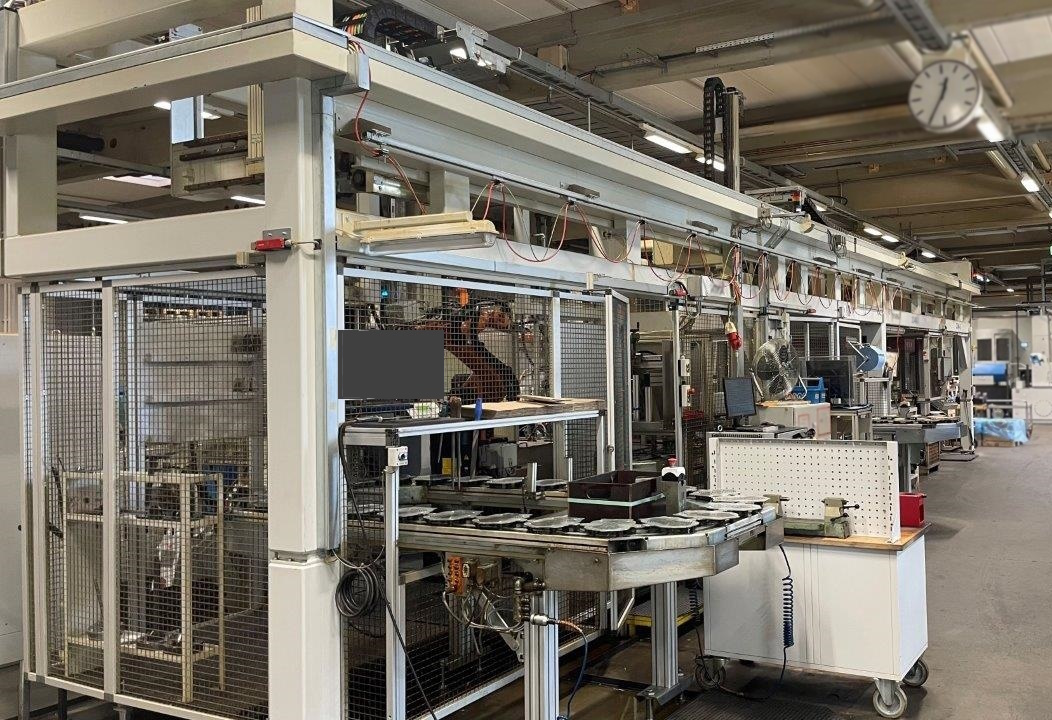

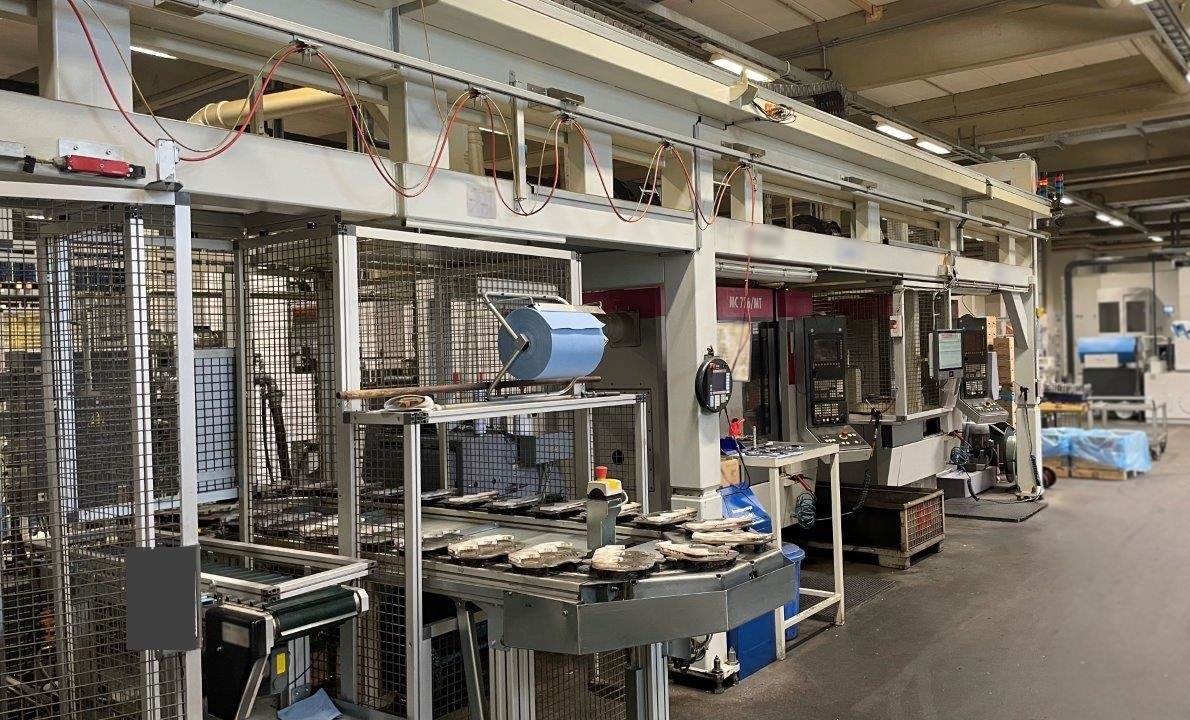

They are currently connected in a production line.
Both machines have their own chip conveyor, but they have only one coolant tank with different coolant pumps.
Under power in the factory.
Both machines are well maintained and in perfect condition.
Regular maintenance carried out by Stama up to 2021, since then only low utilization.
ALSO AVAILABLE AS SINGLE MACHINE!
Proposal Number: MV-6363 & MV-6389
Click here to Contact Us for more details

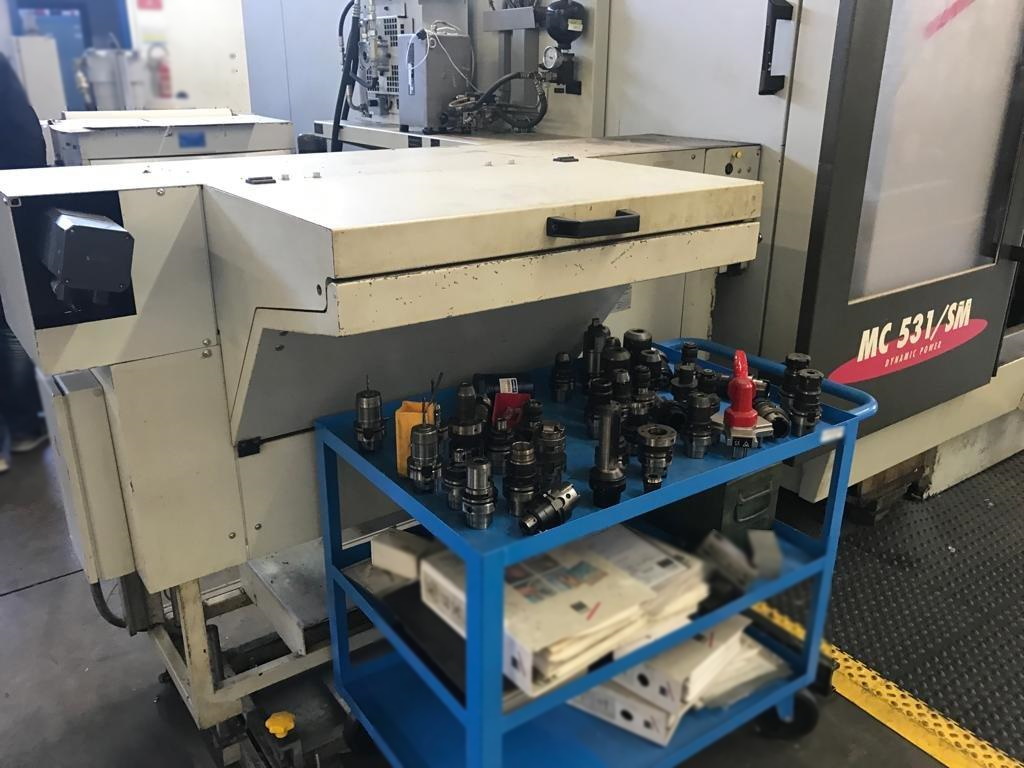

CNC 5-Axis Vertical Machining Centre with Bar Working

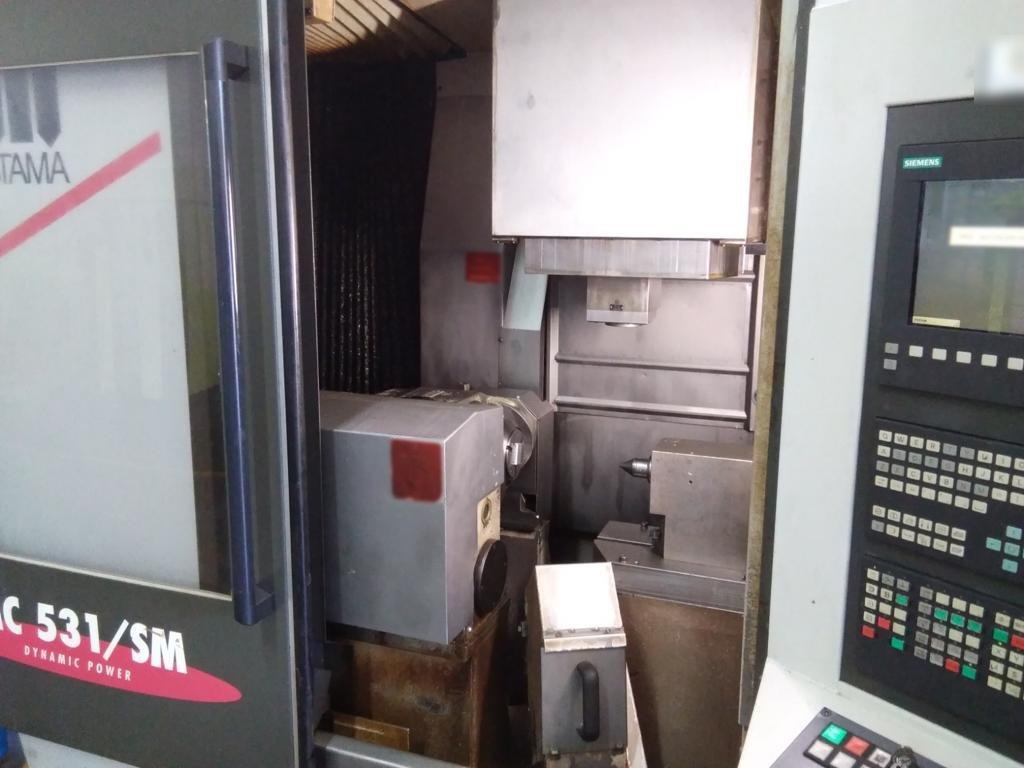

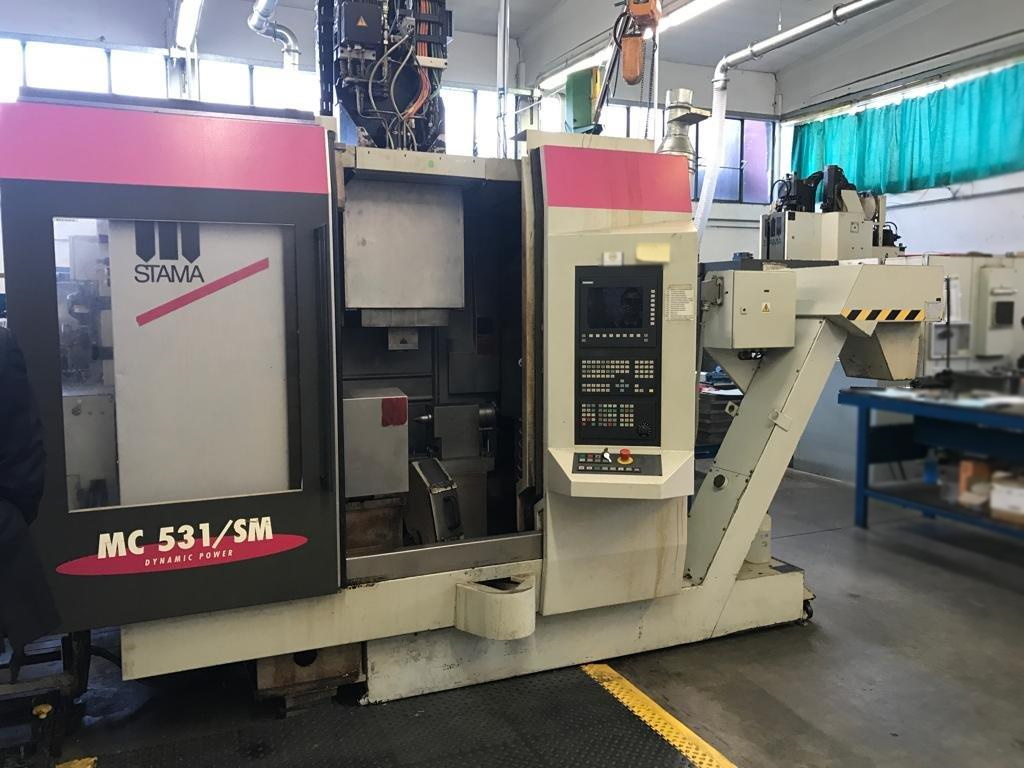

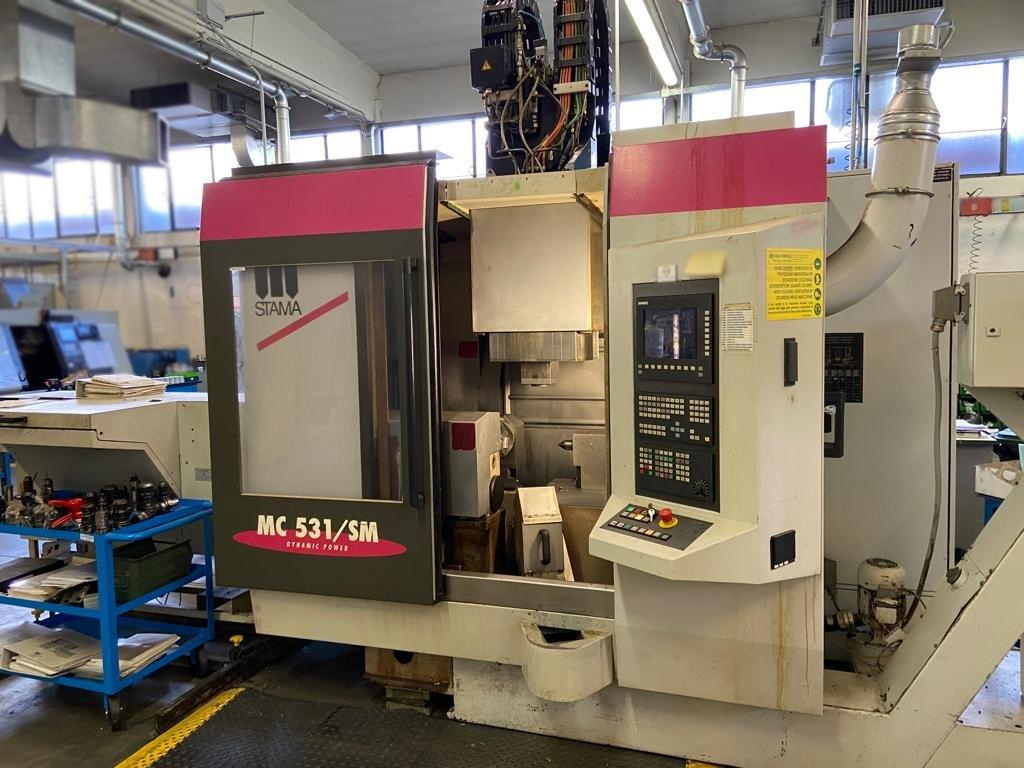

Stama MC 531/SM Dynamic Power
New in 1999 / Overhauled in 2017
Siemens 840D CNC control

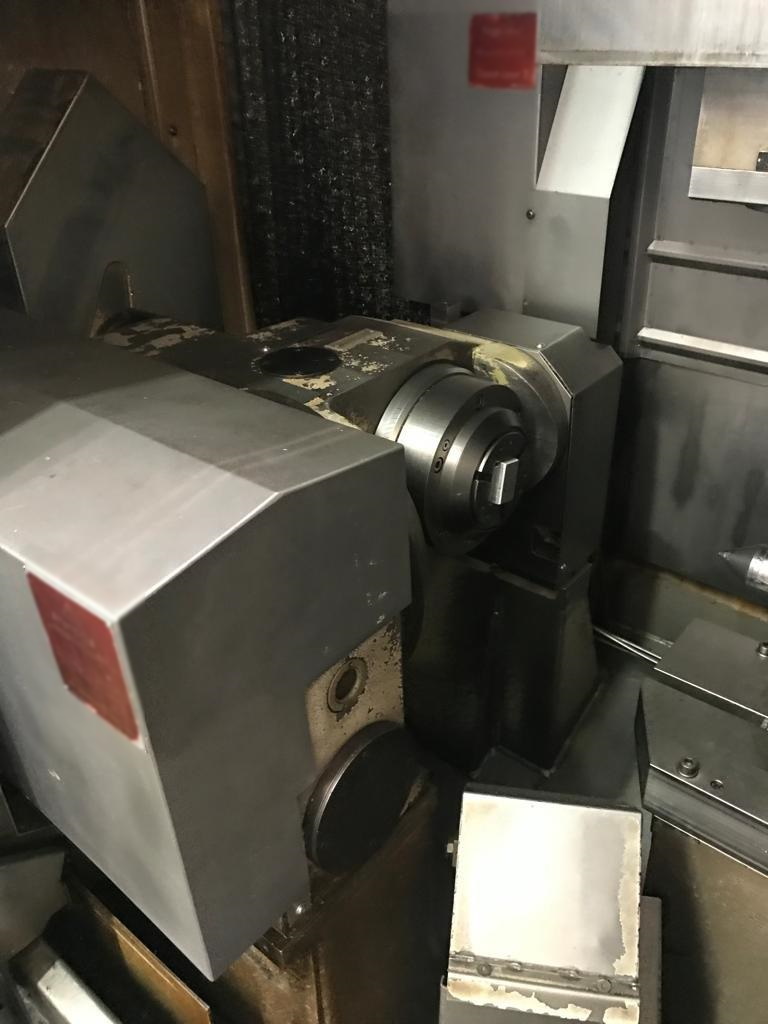

2-Axis NC Swivelling Rotary table
Table diameter 210 mm
Table with spindle nose ASA 8
Table spindle bar capacity 20 ~ 80 mm Ø
Bar length max. 800 mm
Longitudional travel X 800 mm
Cross travel Y 400 mm
Vertical travel Z 350 mm
Table rotary axis 4th Axis (continuous) B-Axis 360° / 0.001°
Table swiveling 5th Axis (continuous) A-Axis 105° / 0.001°
Vertical clearance spindle to table: min./max. 265 / 615 mm
Feedrates X/Y/Z 1 – 10000 mm/min.
Rapids up to X/Y/Z 45000 mm/min.
Spindle taper HSK-A63
Spindle motor rating 14/21 KW AC
Spindle speeds 36 – 9000 rpm
Spindle torque max. 70 Nm
Tool magazine positions 78 station ATC
Tool taper HSK-A63
Tool Ø without adjacent tools max. 125 mm
Tool length max. 250 mm
Tool weight max. 12 kg
Tool change time 2.4 sec.
Chip to chip time 3 sec.
Milling capacity max. 350 cm³/min.
Drilling capacity Ø max. 40 mm
Threading capacity Ø max. M 27
Machine weight approx. 7200 kg
Machine size (not floor space) LxWxH 3000 x 4050 x 2930 mm
Equipped with:
2-Axis NC-Rotary swivelling table.
Table as work carrier for up to 80 mm diameter bar.
Max. bar length 800 mm.
Hainbuch grippers (fast connection) diameter 180 mm.
Short bar magazine.

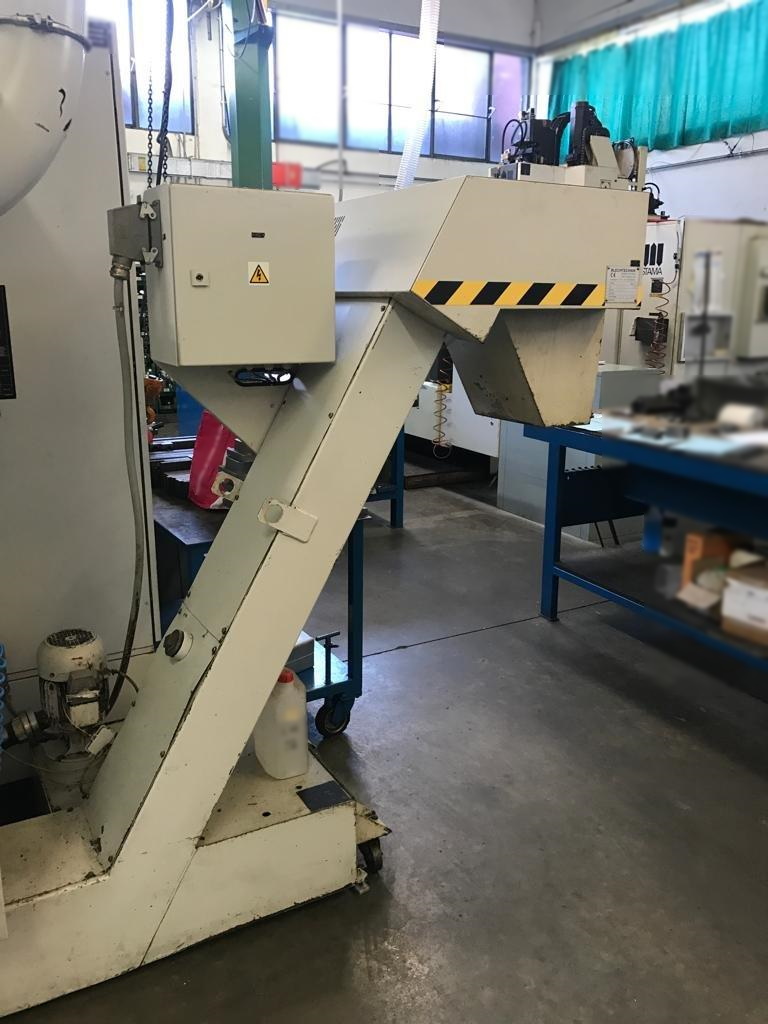

Chip conveyor.
Milling spindle Internal coolant supply 70 bar with magnetic filter.
BLUM laser tool measurement.

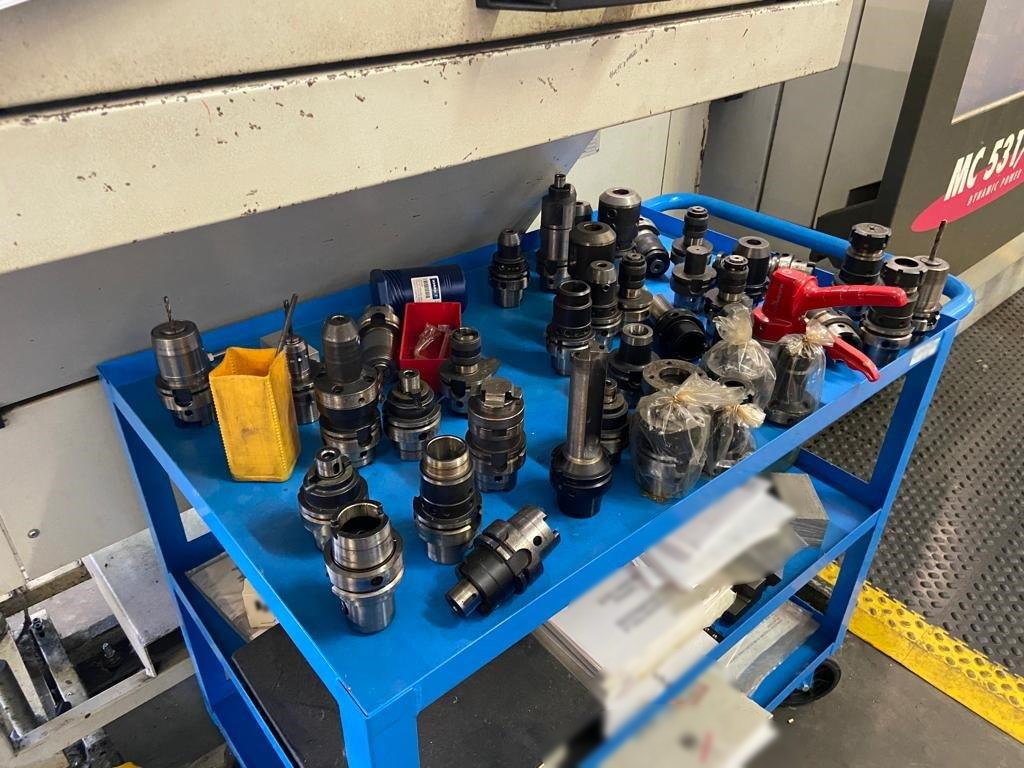

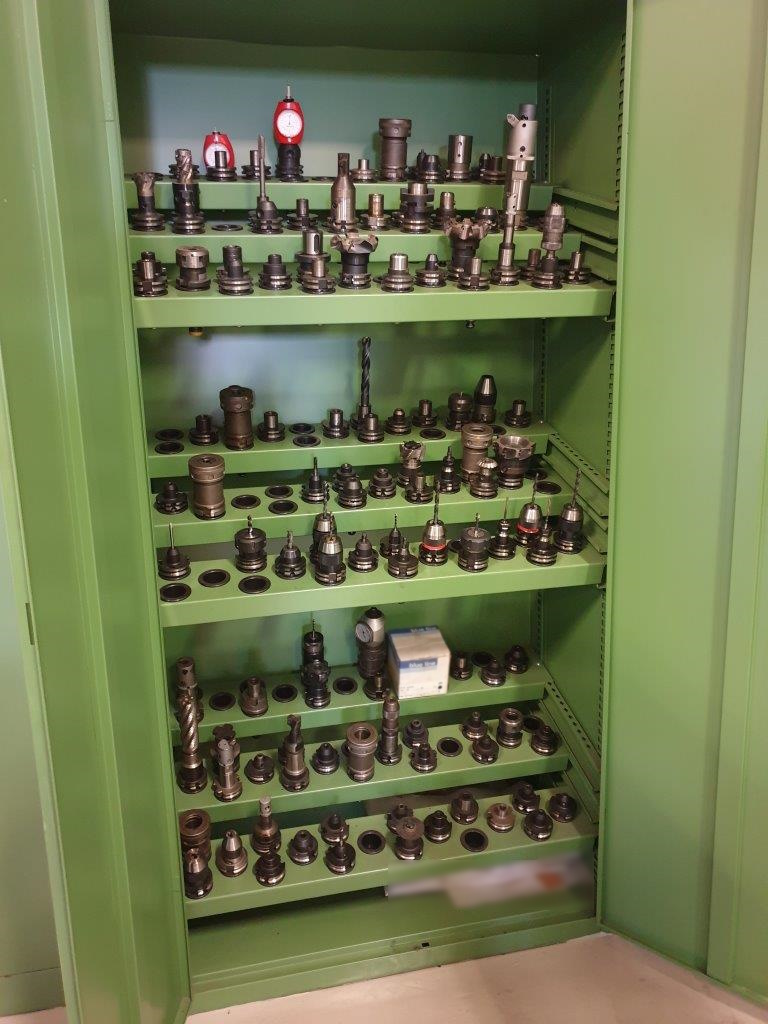

Tool Holders.

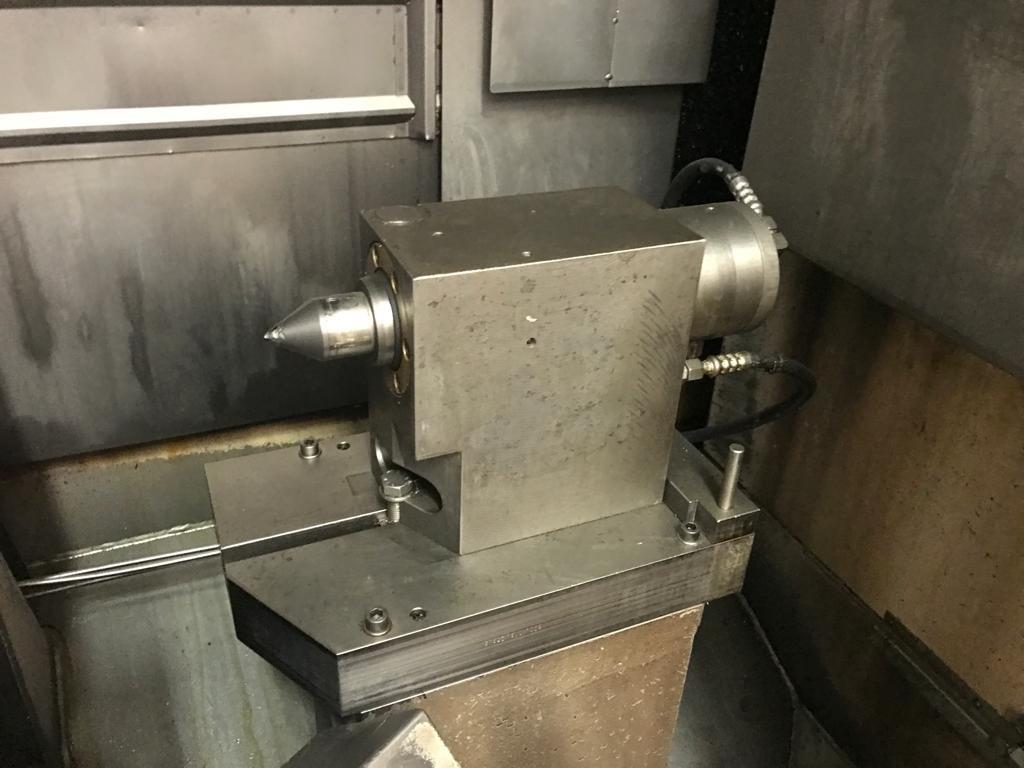

Hydraulic tailstock.

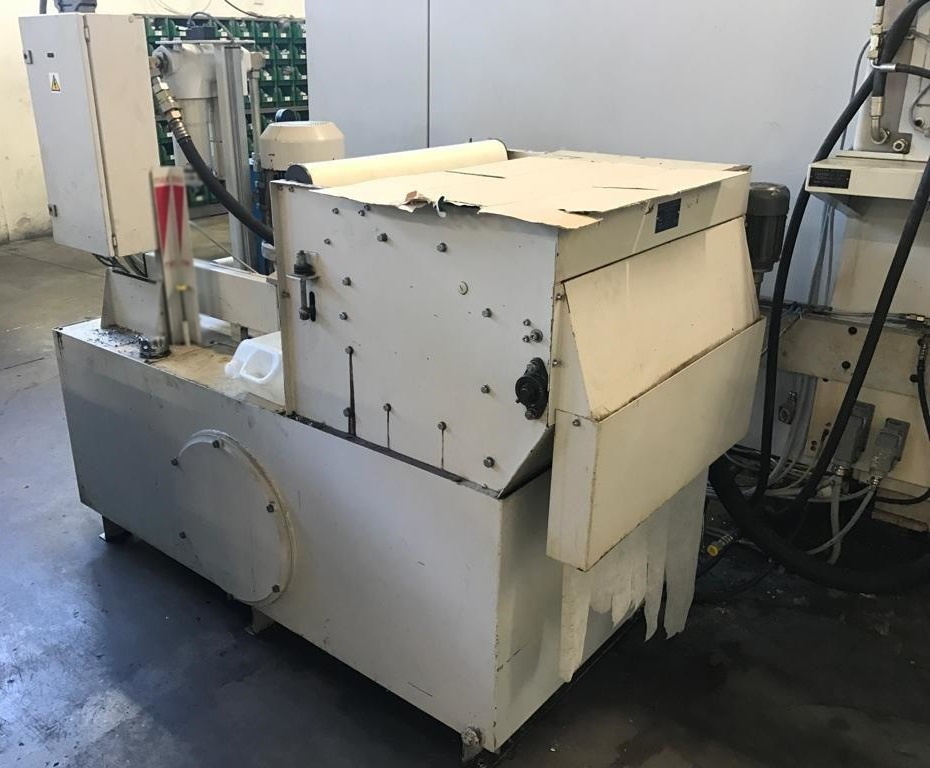

KNOLL paper filter system.

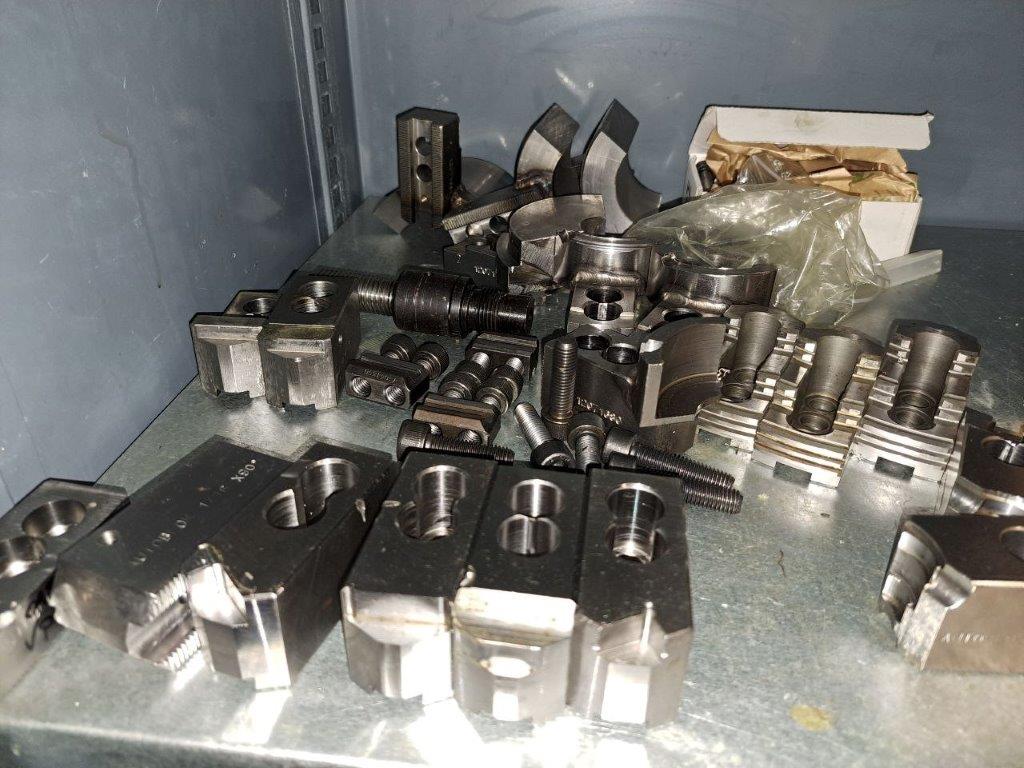

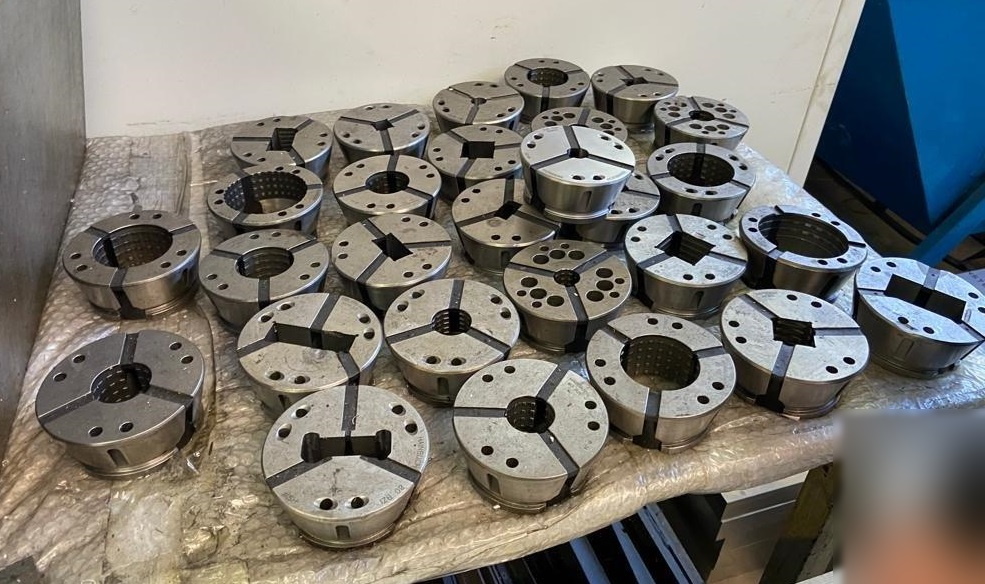

Spare grippers for the table.
Channels for the barfeeder.
Condition: Overhauled in 2017 including new main spindle
Proposal Number: MV-6173
Click here to Contact Us for more details

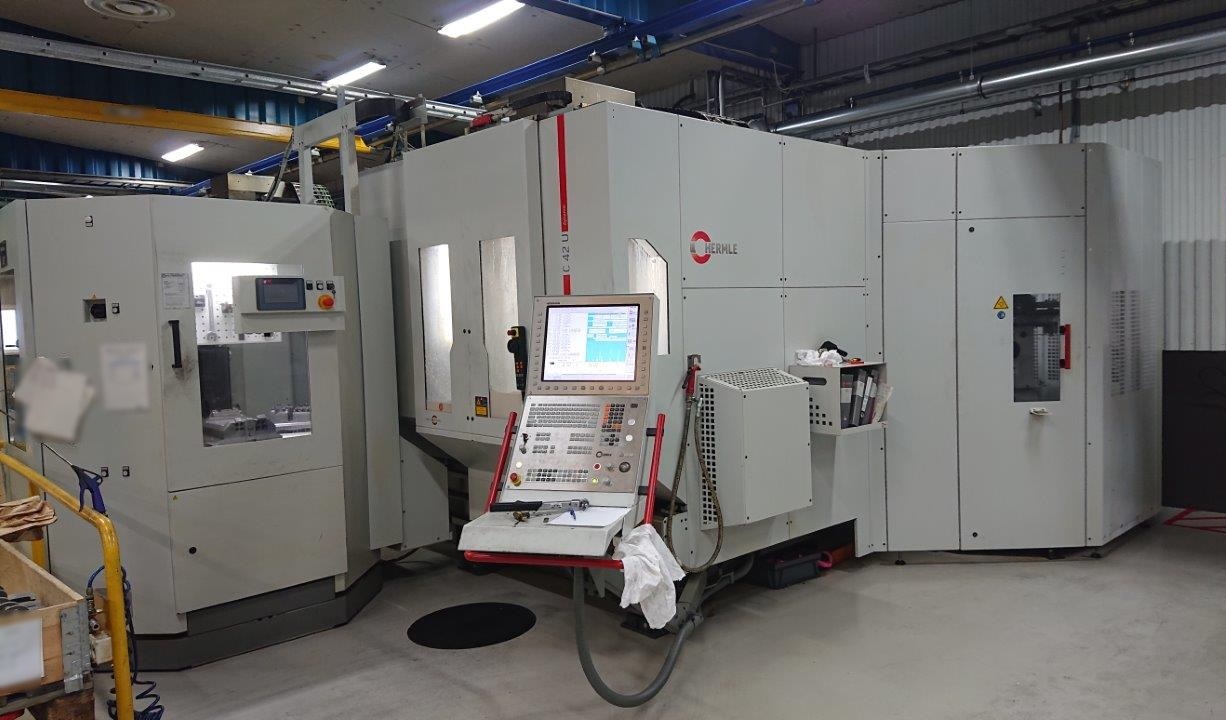

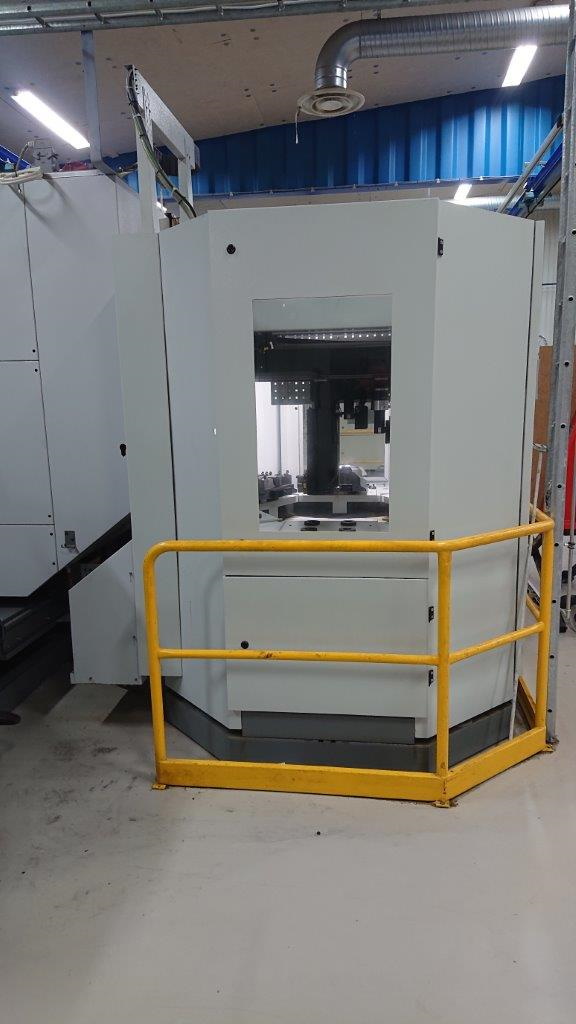

Vertical 5-Axis Machining Centre with 6-station Pallet pool

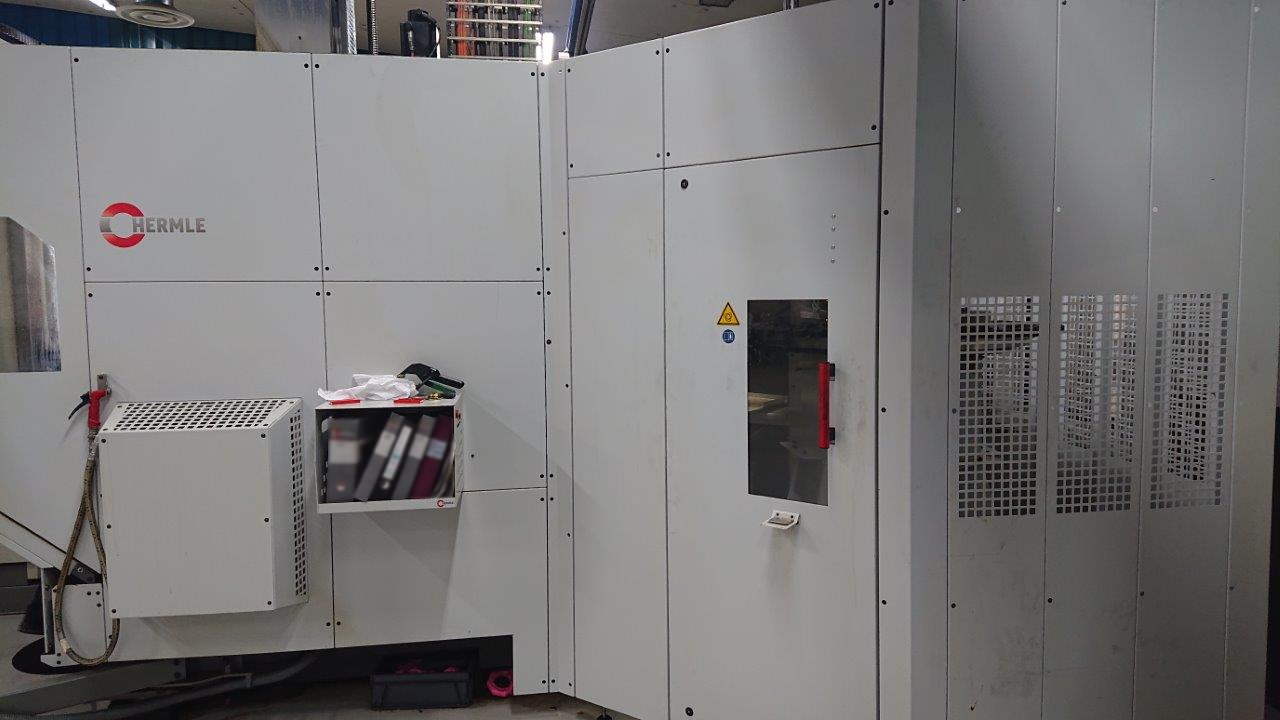

Hermle C42U
Year 2013/2014
Heidenhain iTNC 530 CNC
2-Axis NC Rotary / Swivelling Table:
Table rotary axis: C 360°
Table swivelling axis: A +130° / -130°
Number of pallets: 6 pallets in the system
Pallet clamping surface: 400 x 400 mm
Pallet loading capacity: max. 450 kg
Longitudinal travel: X 800 mm
Cross travel: Y 800 mm
Vertical travel: Z 550 mm
Rapids up to: X/Y/Z 45000 mm/min.
Rapids: C-Axis 65 rpm
Rapids: A-Axis 25 rpm
Spindle motor rating: 10 / 20 KW
Spindle speeds: 20 - 18000 rpm
Spindle torque: max. 180 Nm
Tool magazine and automatic tool changer:
Tool magazine positions: 85 (42 ATC + 43 additional magazine)
Tool taper: HSK-A63
Tool diameter with/without adjacent tools: max. 90 / 125 mm
Tool length: max. 300 mm
Tool weight: max. 8 kg
Chip to chip time: 4.5 sec.
Equipped with:
Full 5-Axis simultaneous milling with 2-Axis NC-Rotary Table.

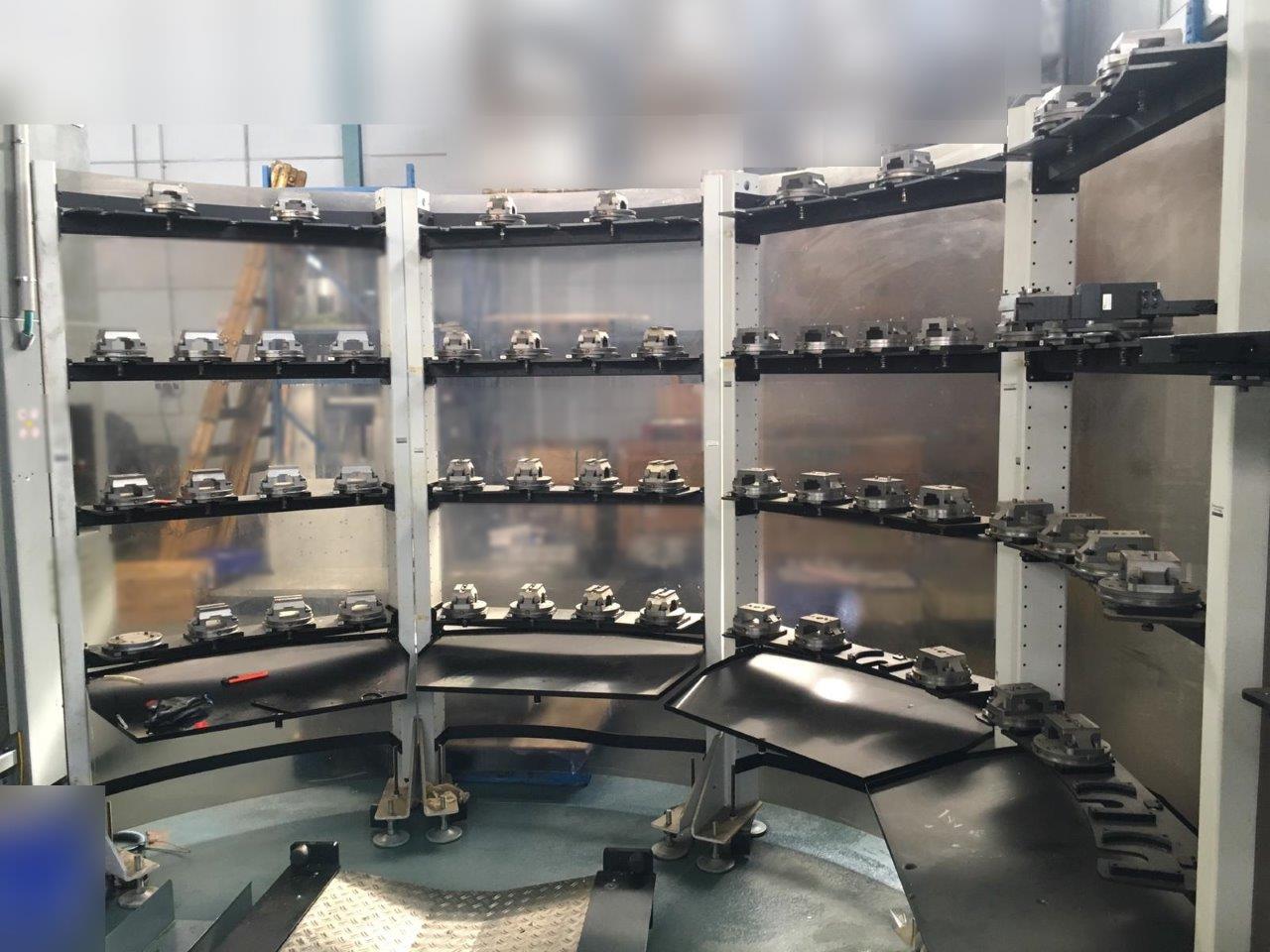

6 station pallet pool and automatic pallet changer.
85 station tool magazine and automatic tool changer.
Full guarding.
Coolant unit.
High pressure coolant through the spindle 80 bar.

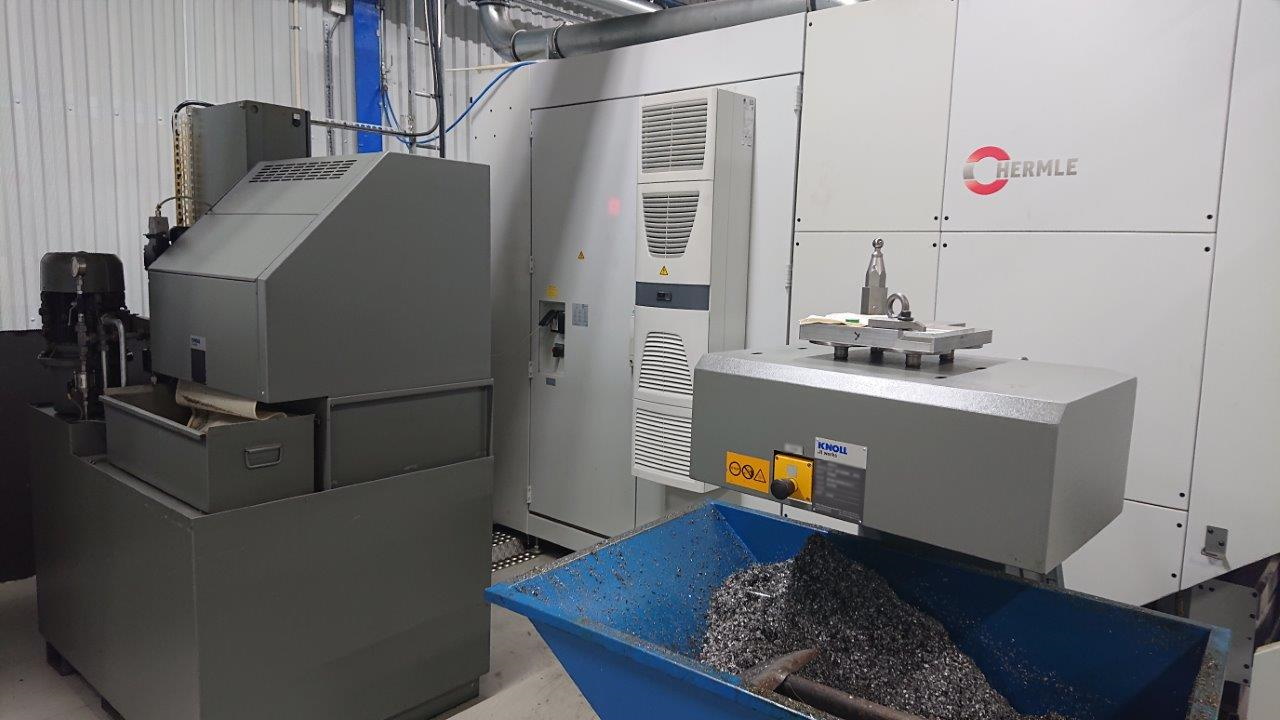

Paper band filter.
BLUM Laser tool measurement and tool breakage control.
Measuring probe.
Direct measurement linear scales X,Y,Z.

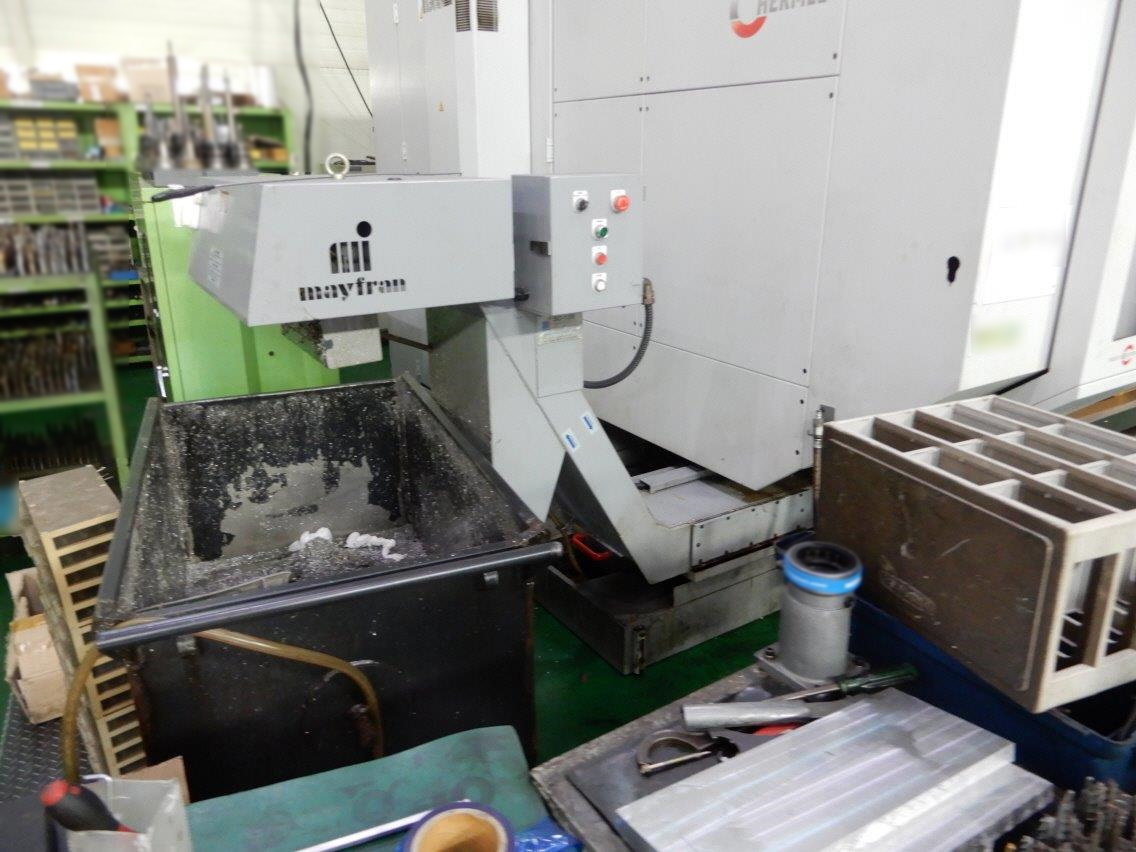

Chip conveyor.
Machine is very well looked after.
Machine holding very tight tolerances.
Proposal Number: MV-6375
Click here to Contact Us for more details

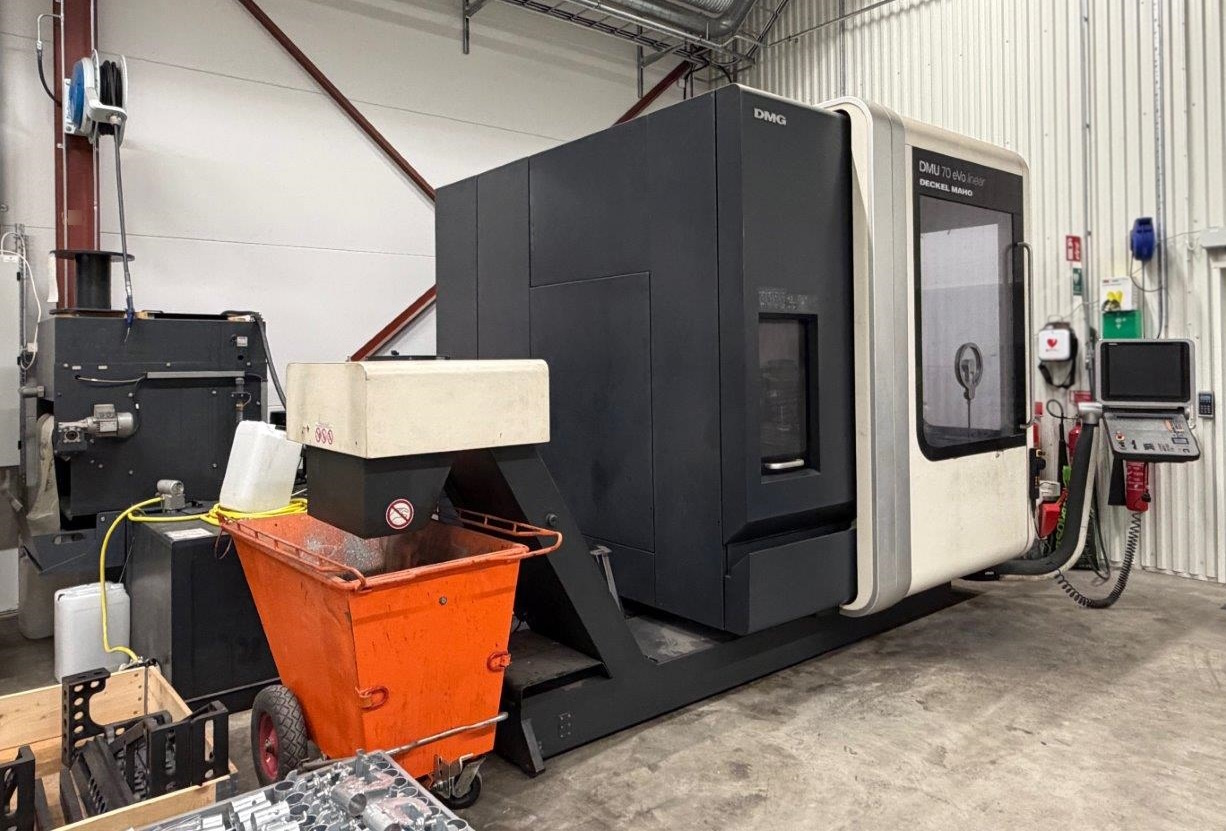

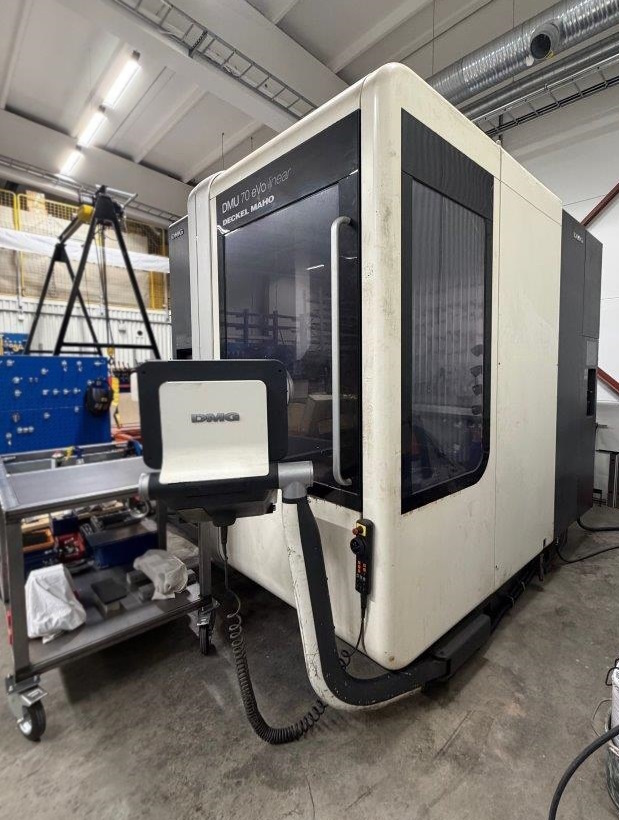

DMG DMU 70 eVo linear NEW DESIGN

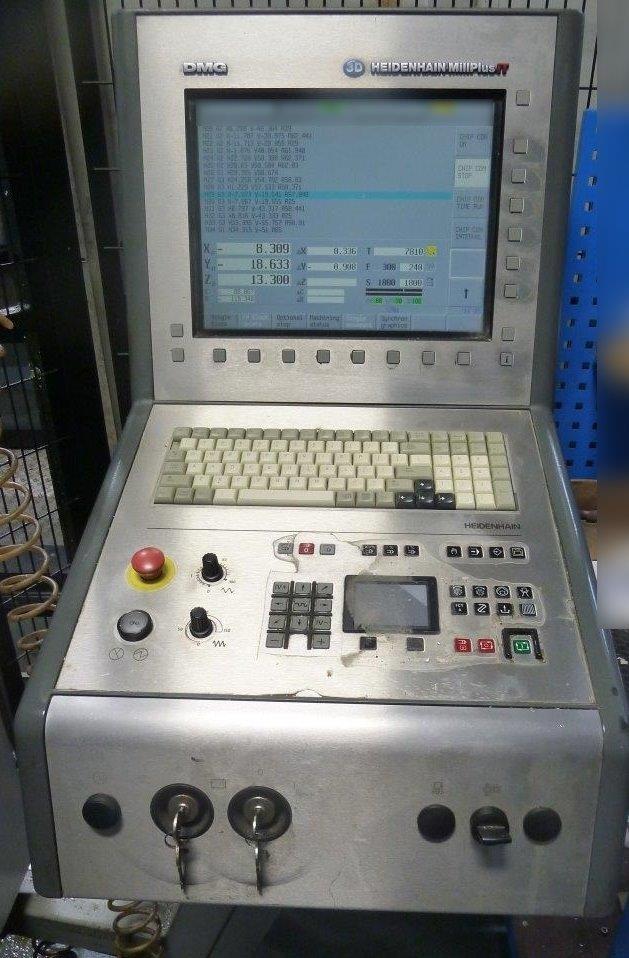

Year 2010 - Heidenhain MillPlus IT CNC
2-Axis NC- Rotary Swivelling Table:
Rotational axis: C-Axis 360° x 0.001°
Swivelling axis: B-Axis 102° x 0.001°
Table size: Ø 700 x 500 mm
Table loading capacity: max. 350 kg
Longitudinal travel: X 750 mm
Cross travel: Y 600 mm
Vertical travel: Z 520 mm
Feedrates up to: X 80000 mm/min.
Y/Z 50000 mm/min.
Rapids up to: X 80000 mm/min.
Y/Z 50000 mm/min.
B/C 40 rpm
Spindle motor rating: 35/25 KW
Spindle speeds: 20 - 18000 rpm
Tool magazine positions: 120 station
Tool taper: HSK-A63
Tool diameter with/without adjacent tools: 80/130 mm
Tool length: max. 300 mm
Tool weight: max. 6 kg
Machine weight: approx. 8500 kg
Machine size: LxWxH 6000 x 5200 x 2900 mm
Equipped with:
Full splash and chip covers.
Production package.
Coolant through the spindle 40 bar, 23 l/min., 980 l Tank.
Paper band filtration system.
Chip conveyor.
BLUM Laser Tool measurement & tool breakage control.
Heidenhain measuring probe (parts probe).
Electric handwheel (MPG).
User mode 4.
OPTIONAL: with SYSTEM 3R Pallet Server System.
Condition: Very good
Proposal Number: MV-5862
Click here to Contact Us for more details

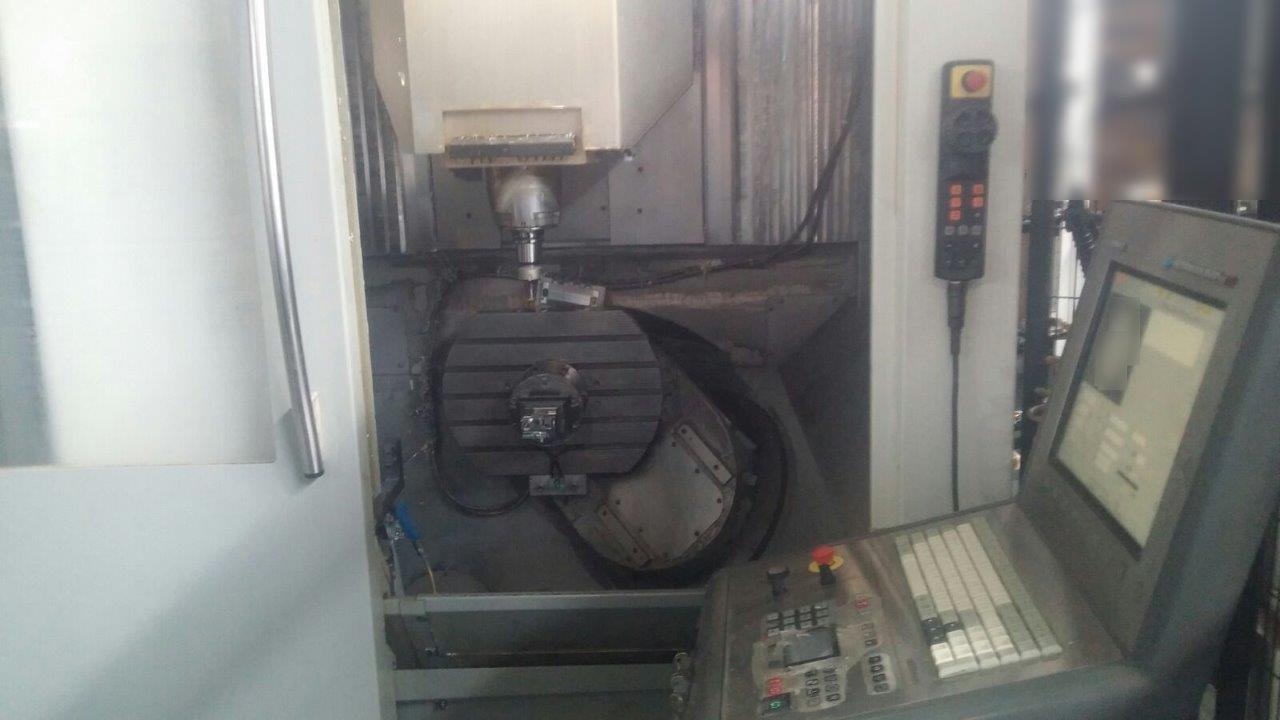

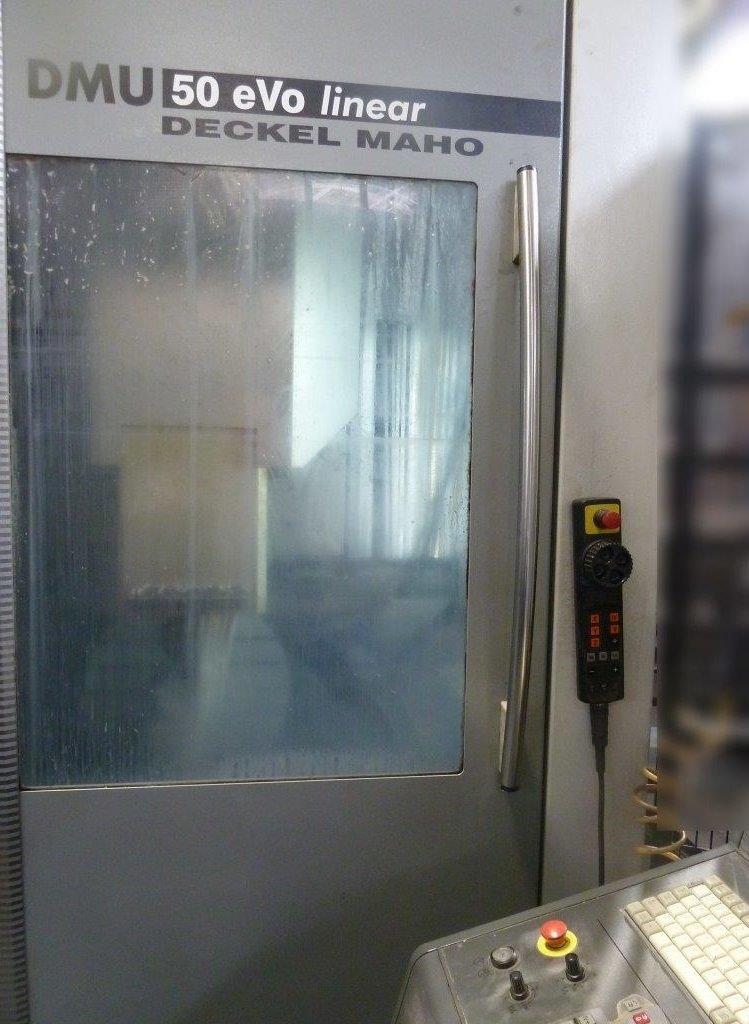

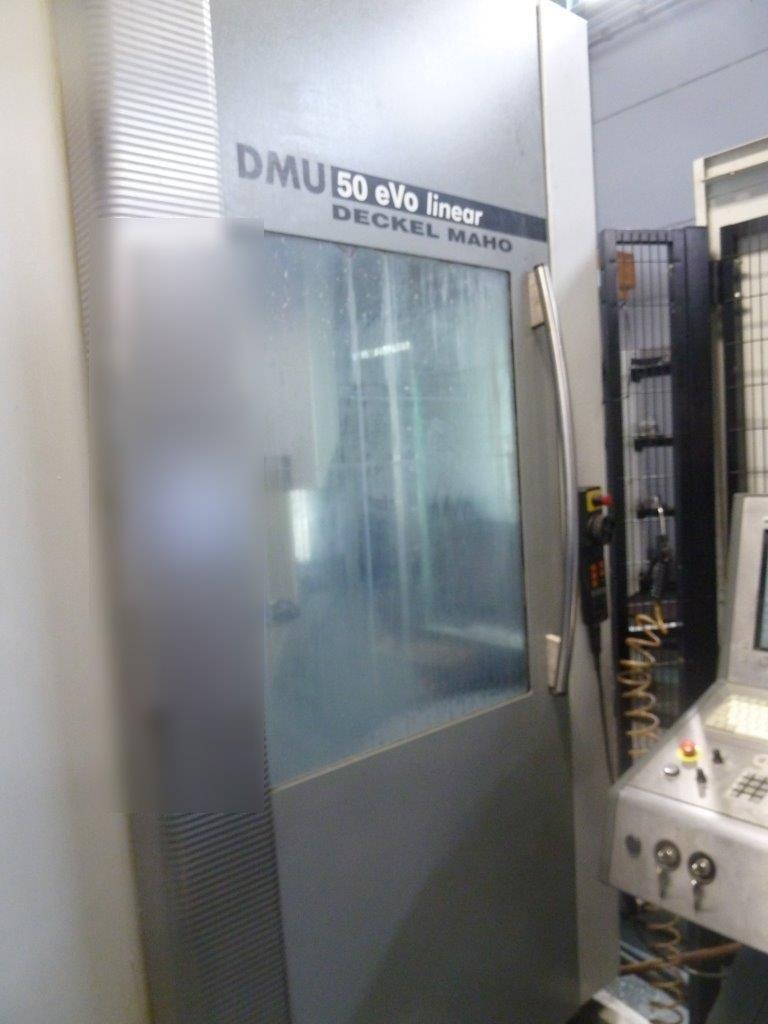

5-Axis CNC Vertical Machining Centre - DMG DMU 50 eVo linear
Year 2006 - Heidenhain MillPlus IT
2-Axis NC Rotary Swivelling Table:
Table size: 500 x 380 mm
Table loading capacity: max. 200 kg
Working traverses:
Longitudinal travel: X 500 mm
Cross travel: Y 450 mm
Vertical travel: Z 400 mm
Table rotational axis: C 360° / 0.001°
Table swivelling axis: B +90°/-18° ~ 0.001°
Cutting feeds: X,Y,Z 20000 mm/min.
Rapid traverse Linear Drive: X 80000 mm/min.
Rapids traverses: Y, Z 50000 mm/min.
C/B 50 / 40 rpm
Spindle:
Spindle motor rating: 40%/100% 35 / 25 KW
Spindle speeds: 20 - 18000 rpm
Spindle torque: 40%/100% 130 / 87 Nm
Tool magazine & Automatic Tool Changer:
Tool magazine positions: 120 station
Tool taper: HSK-A63
Tool diameter all pockets full: max. 80 mm
Tool diameter adjacent pockets empty: max. 130 mm
Tool length: max. 300 mm
Chip to chip time: 5 sec
Machine weight: approx. t.b.a. kg
Machine size: L x W 6050 x 3140 mm
Equipped with:
Direct measurement systems X,Y,Z,C,B Axes.
Linear drive X-Axis.
ATC with double gripper arm.
Tool taper HSK-A63.
Tool taper cleaning system.
Tool measurement laser for diameter and length.
Infra-red Heidenhain probe TS 640 for parts measurement.
Electric handwheel.
NFS Server Software.
Operation mode 4.
Good condition.
Proposal Number: MV-5764
Click here to Contact Us for more details

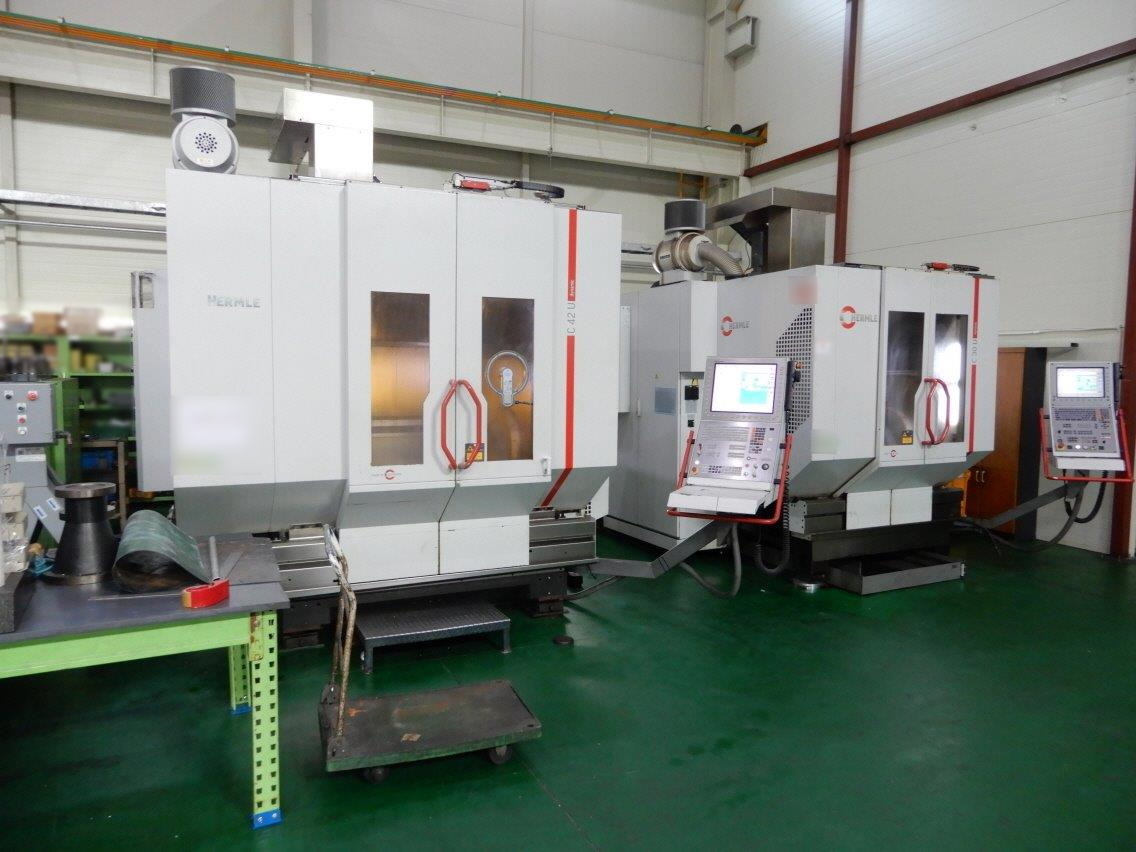

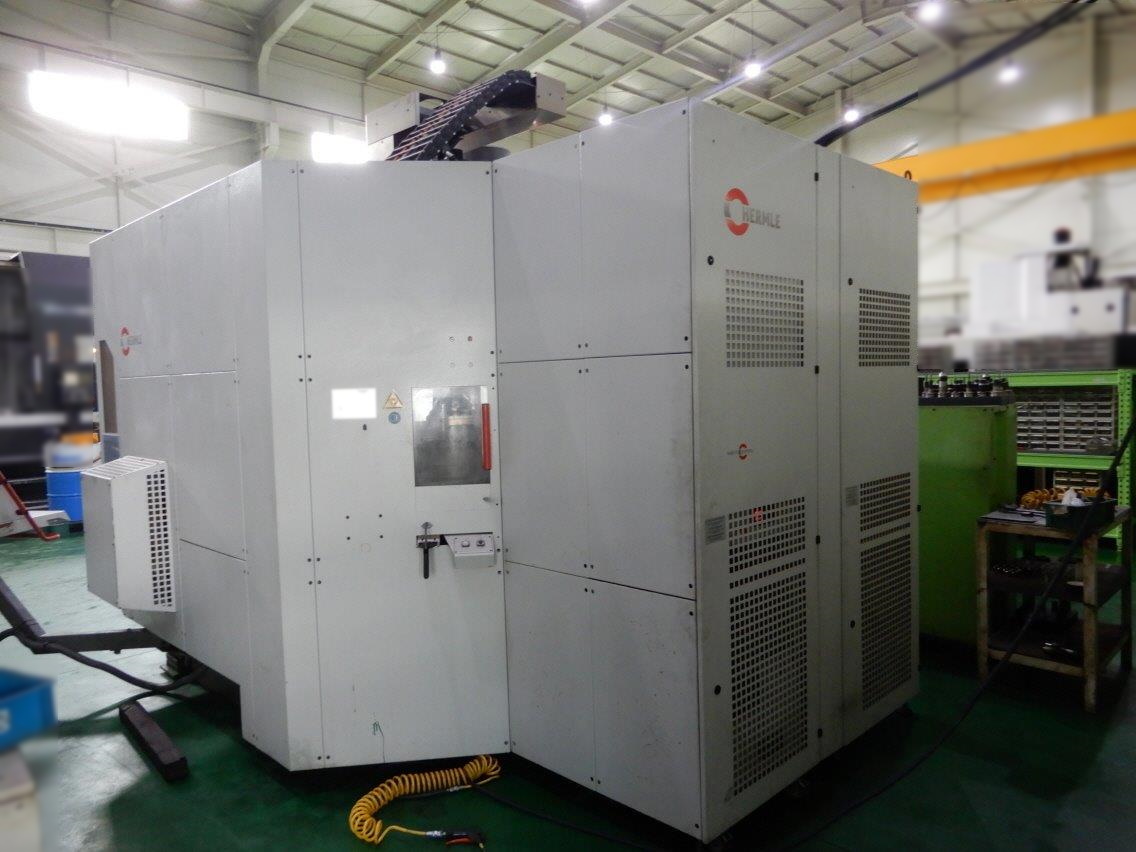

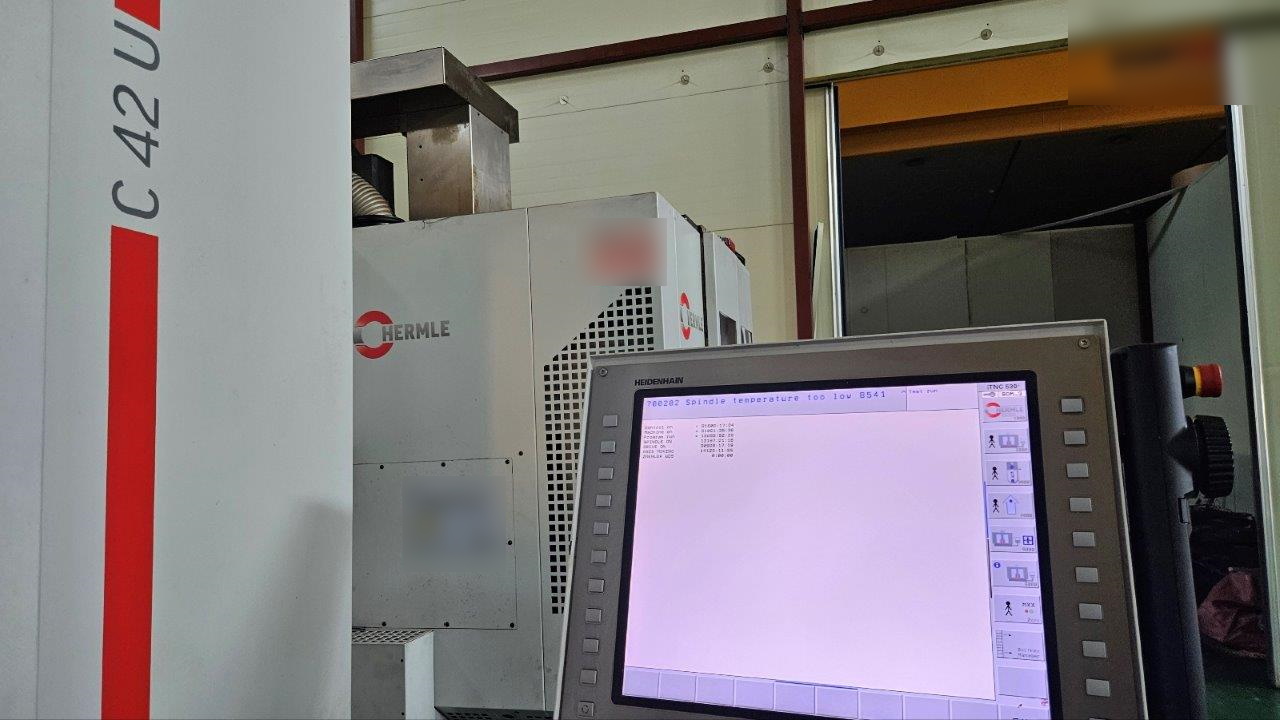

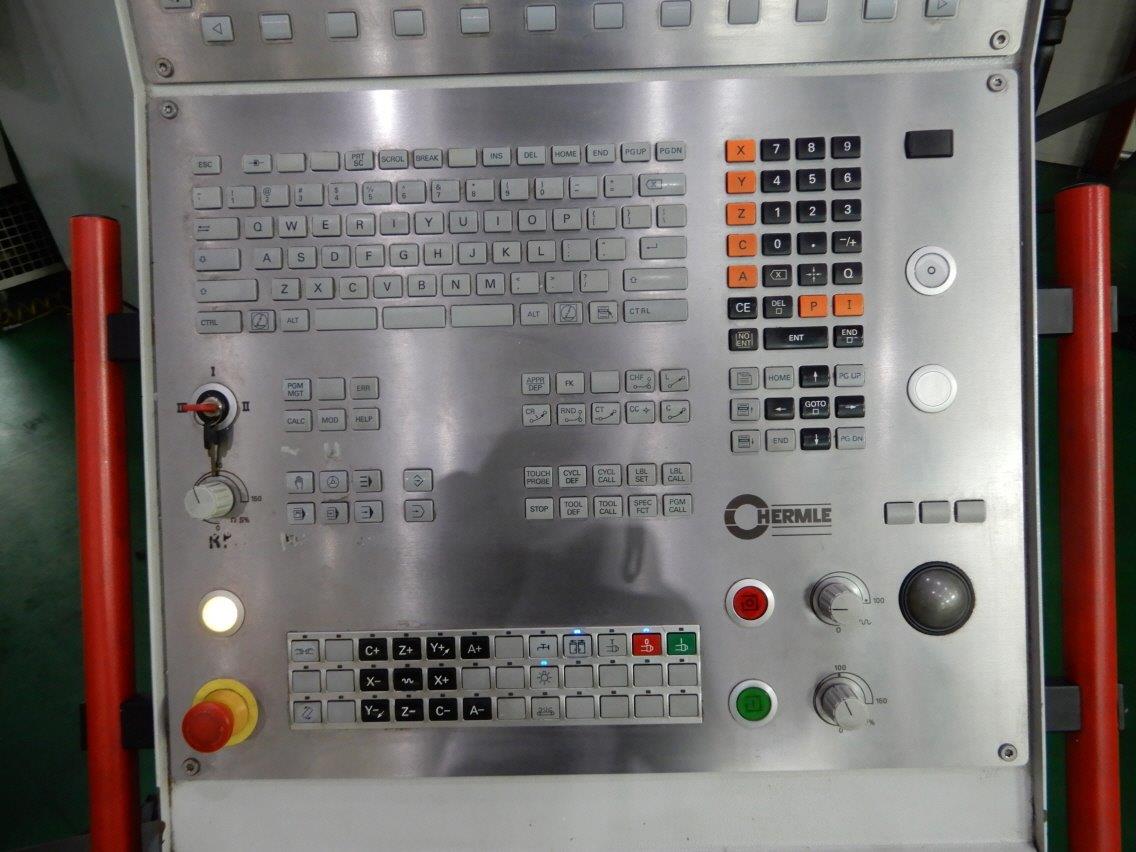

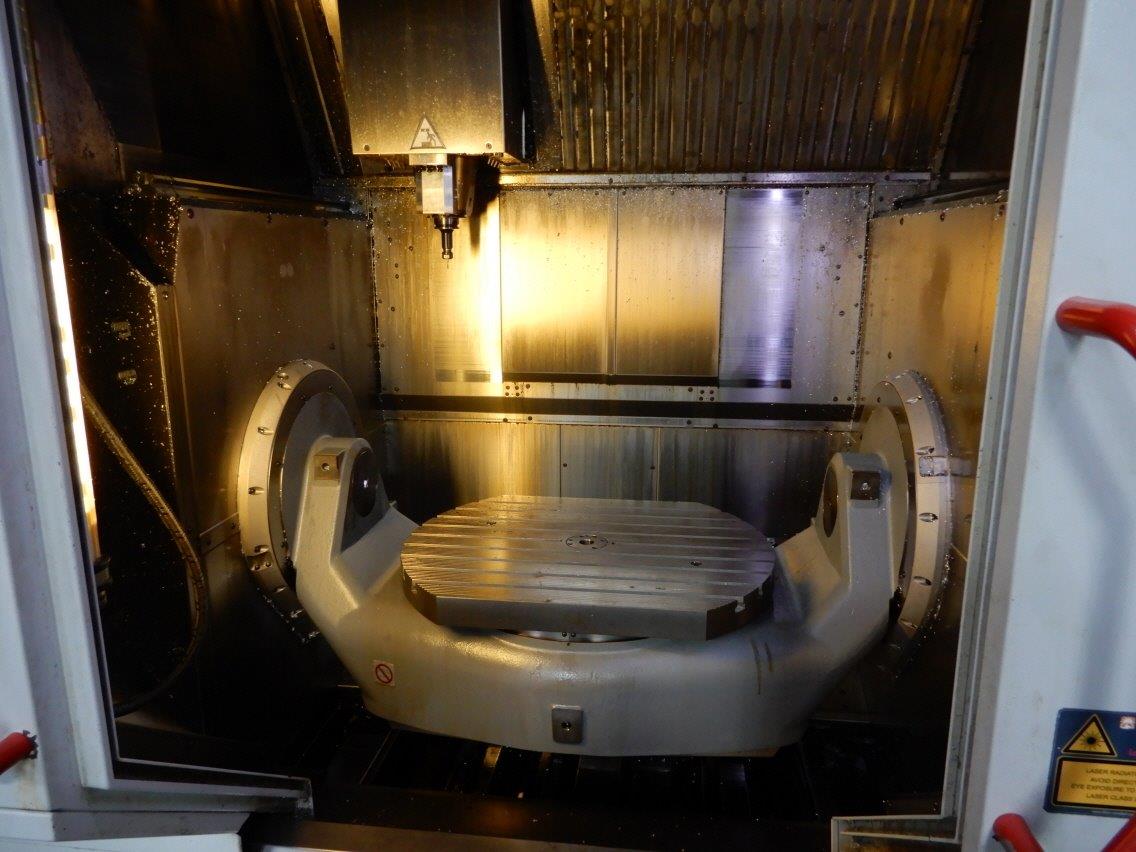

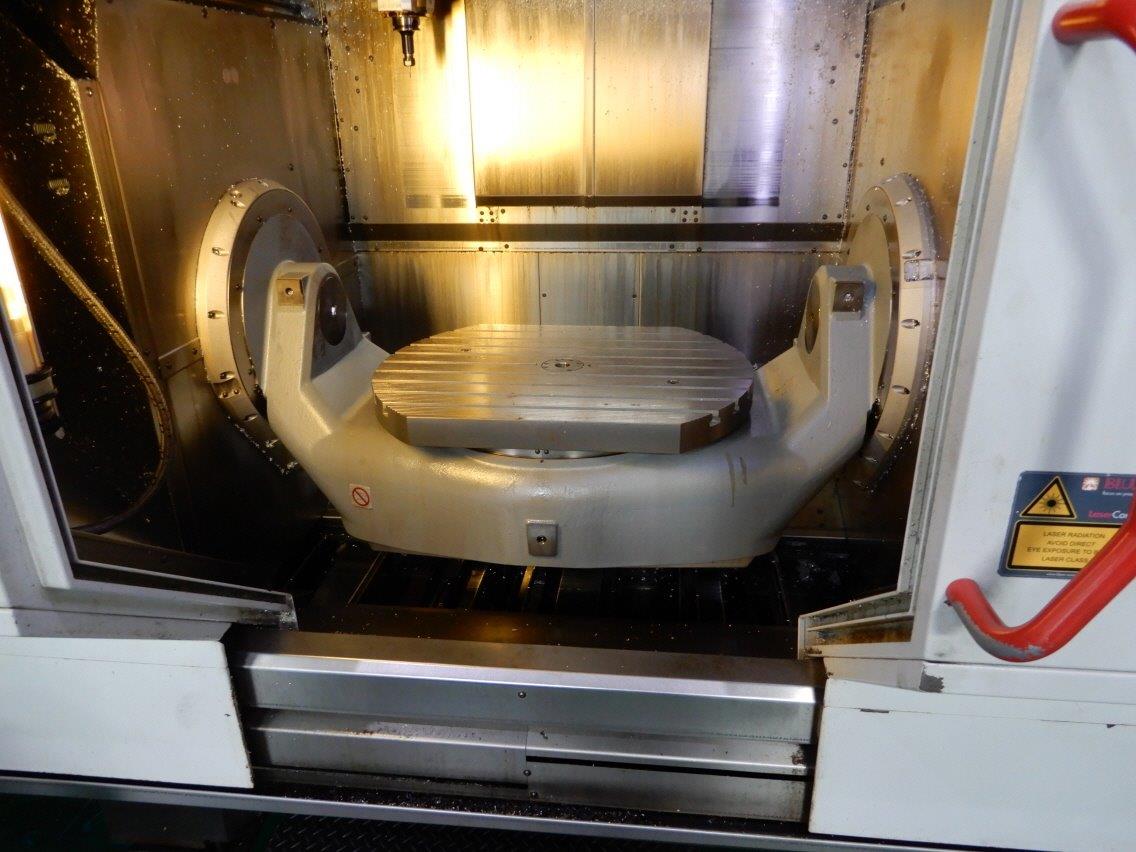

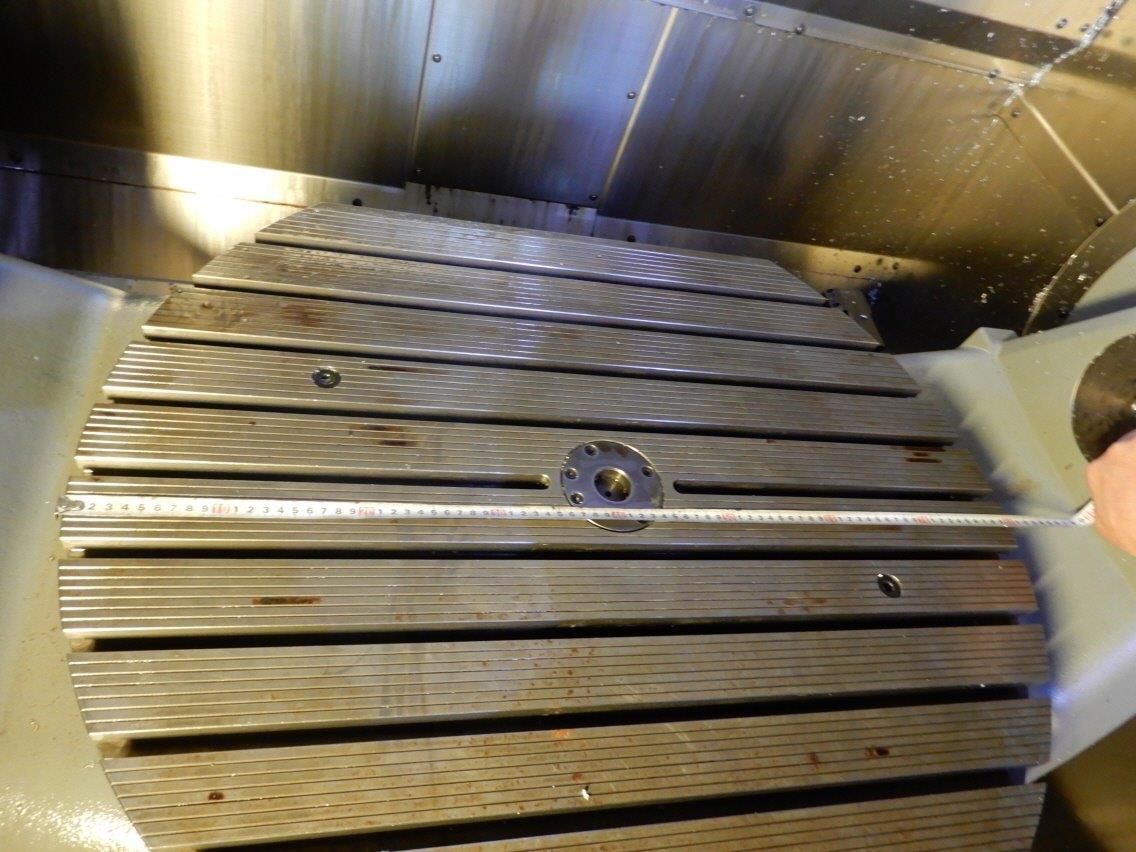

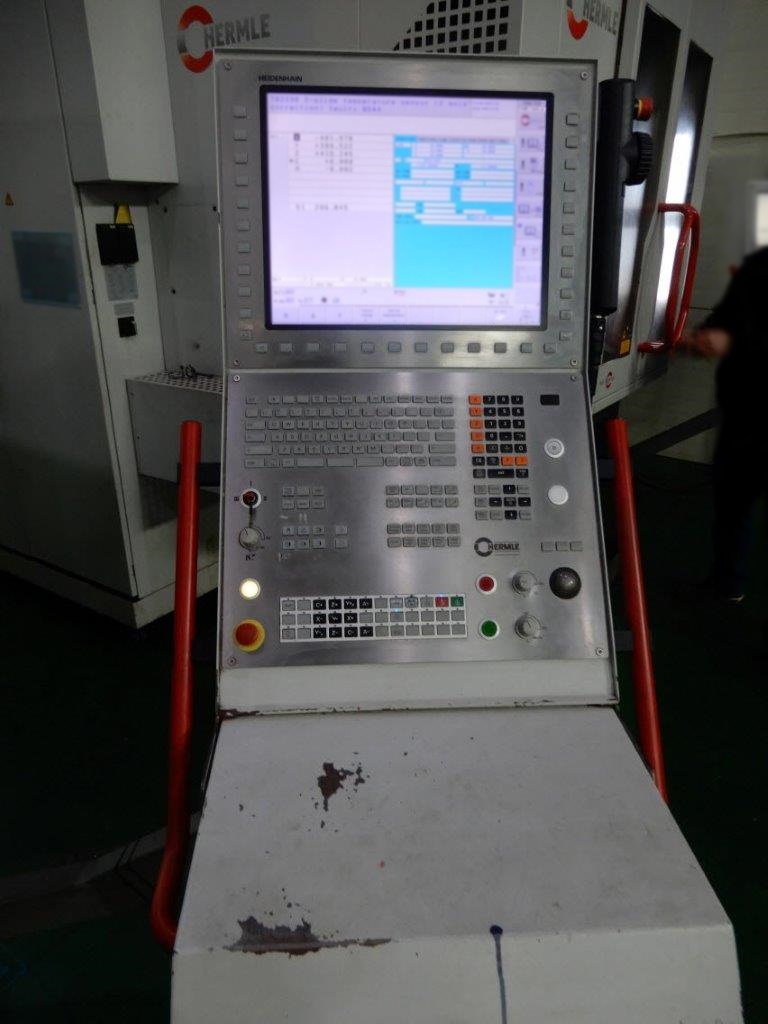

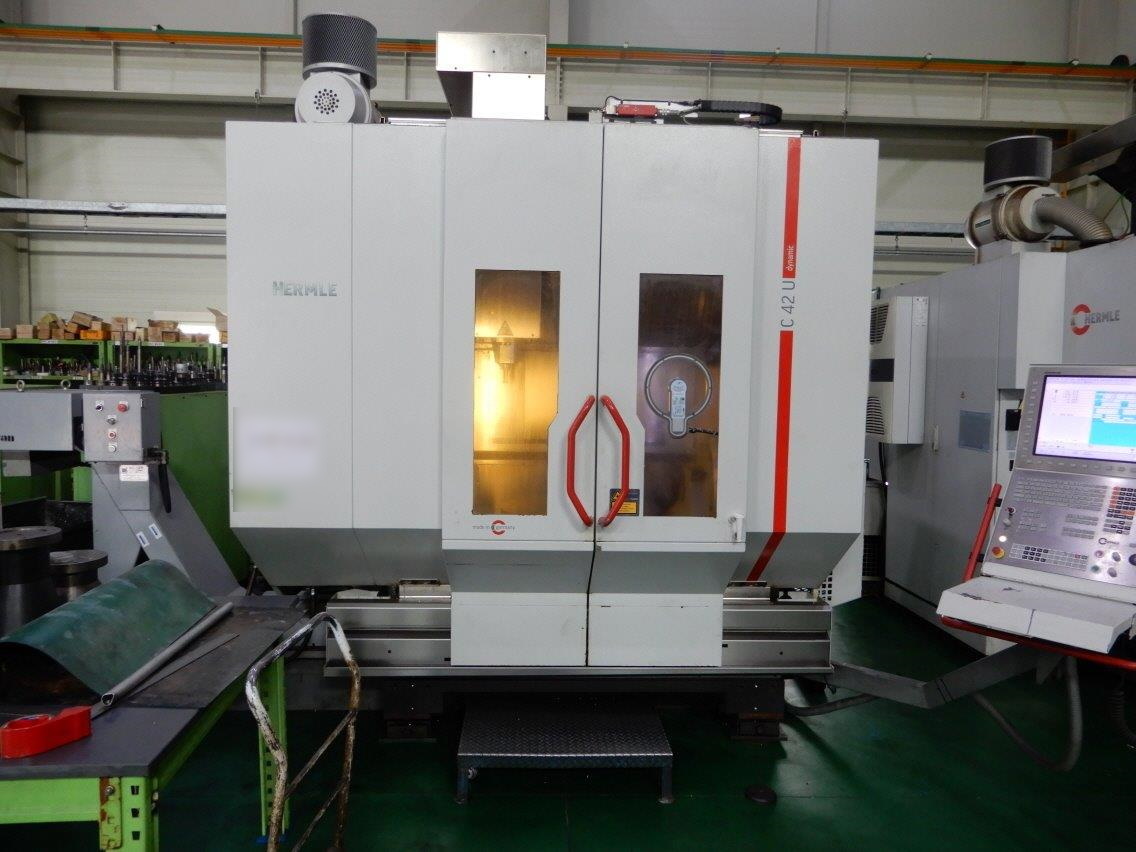

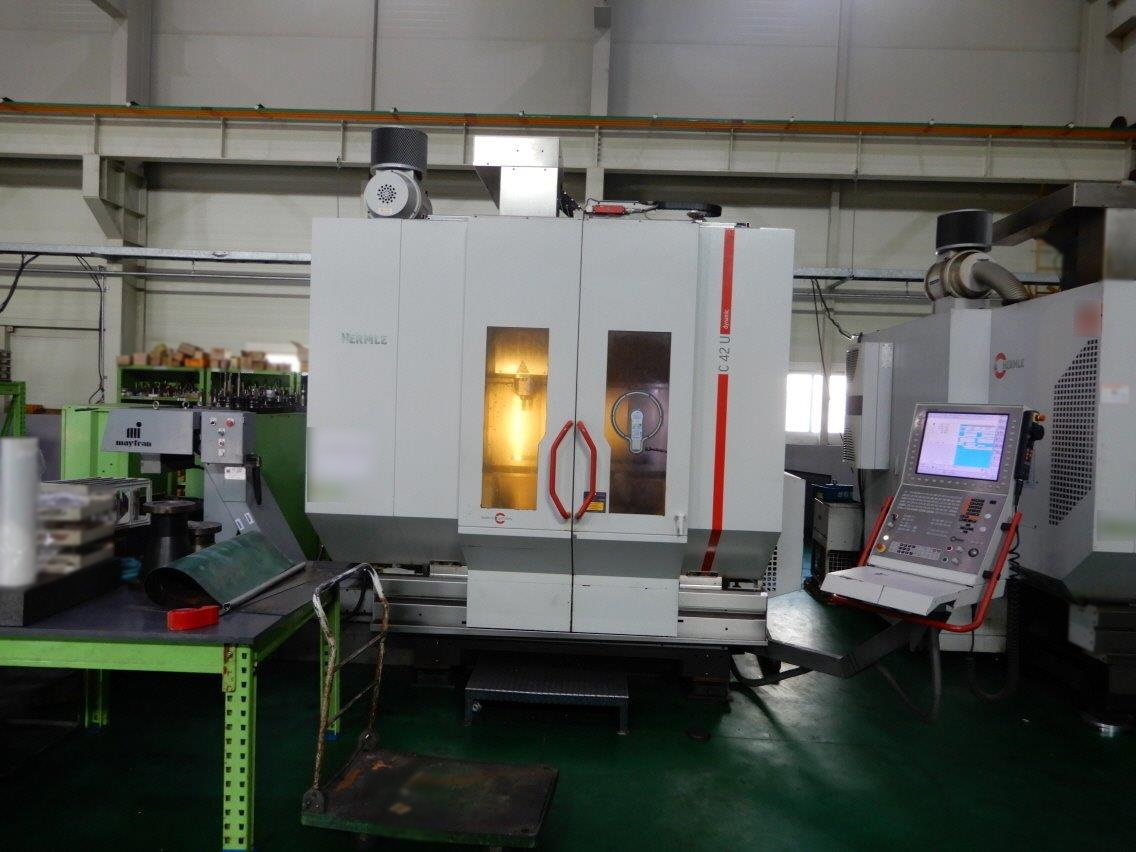

5-Axis CNC Vertical Machining Centre - Hermle C 42 U
New in 2014 - Heidenhain iTNC 530
2-Axis NC-Rotary Tilting Table:
Table size: Ø 800 x 630 mm
Table load capacity: max. 1400 kg
Longitudinal travel: X 800 mm
Cross travel: Y 800 mm
Vertical travel: Z 550 mm
Table rotation axis with torque drive: C 360°
Table tilting axis with helical tandem drive: A +130°/-130°
Rapids dynamic (version) up to:
X/Y/Z 60000 mm/min.
C/A 65 rpm.
A 25 rpm.
Spindle motor rating: 10/20 KW AC
Spindle speeds: 20 - 18000 rpm
Spindle torque 100%/20%: 87/180 Nm
Tool magazine positions: max.42 station
Tool taper: HSK-A63
Tool diameter with/without adjacent tools: max. 80/125 mm
Tool length: max. 300 mm
Tool weight: max. 8 kg
Chip to chip time: 4.5 sec.
Machine weight: approx. 12500 kg
Machine size, approx. (L x W x H) 5000 x 2450 x 3100 mm
Equipped with:
BLUM Laser tool measurement and tool breakage control; Position measuring system direct X,Y,Z, resolution 0.0001 mm; Positional tolerance Tp X,Y,Z 0.008 mm; Rotating clear view window; Electrical heat compensation; RENISHAW touch probe; Dynamic version with 60 m/min + acceleration 10 m/s²:
Run hours:

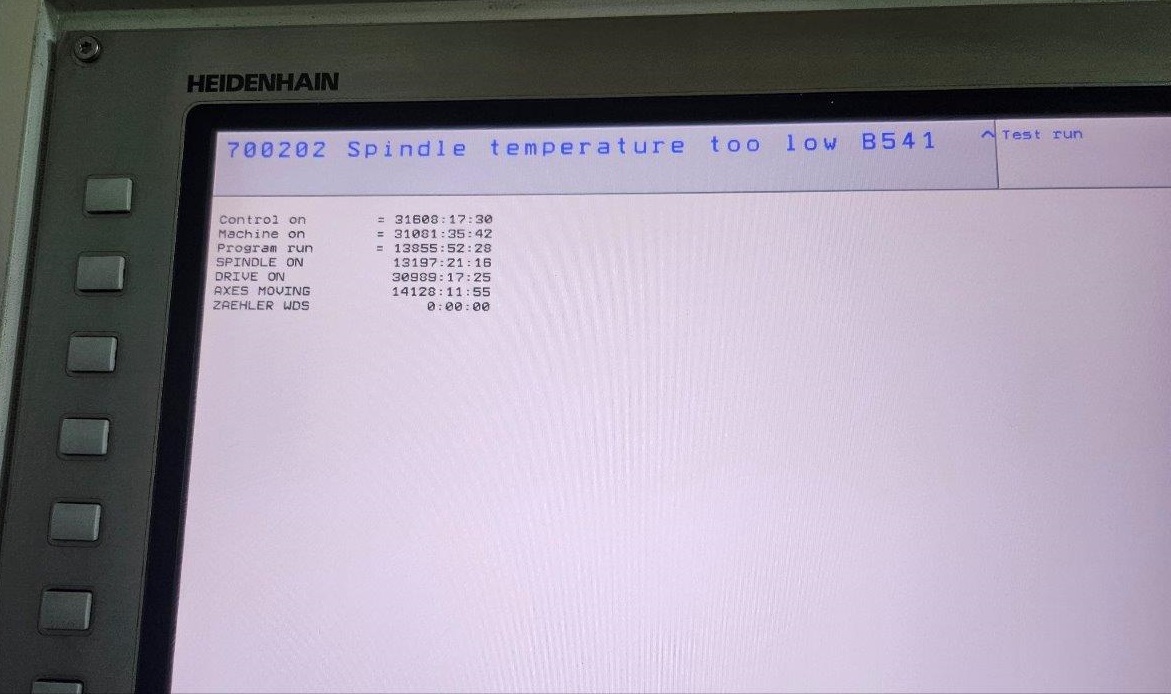

Drives on 30989h. Axes moving 14000h. Control 31600h. M/C on 31081h. Program 13855h. Spindle 13197h.
Very good condition.
The machine is producing very accurate parts.
Immediately available.
Proposal Number: MV-6328
