Vertical Boring Mills

CNC Vertical Turning Lathe with C-Axis and live tools

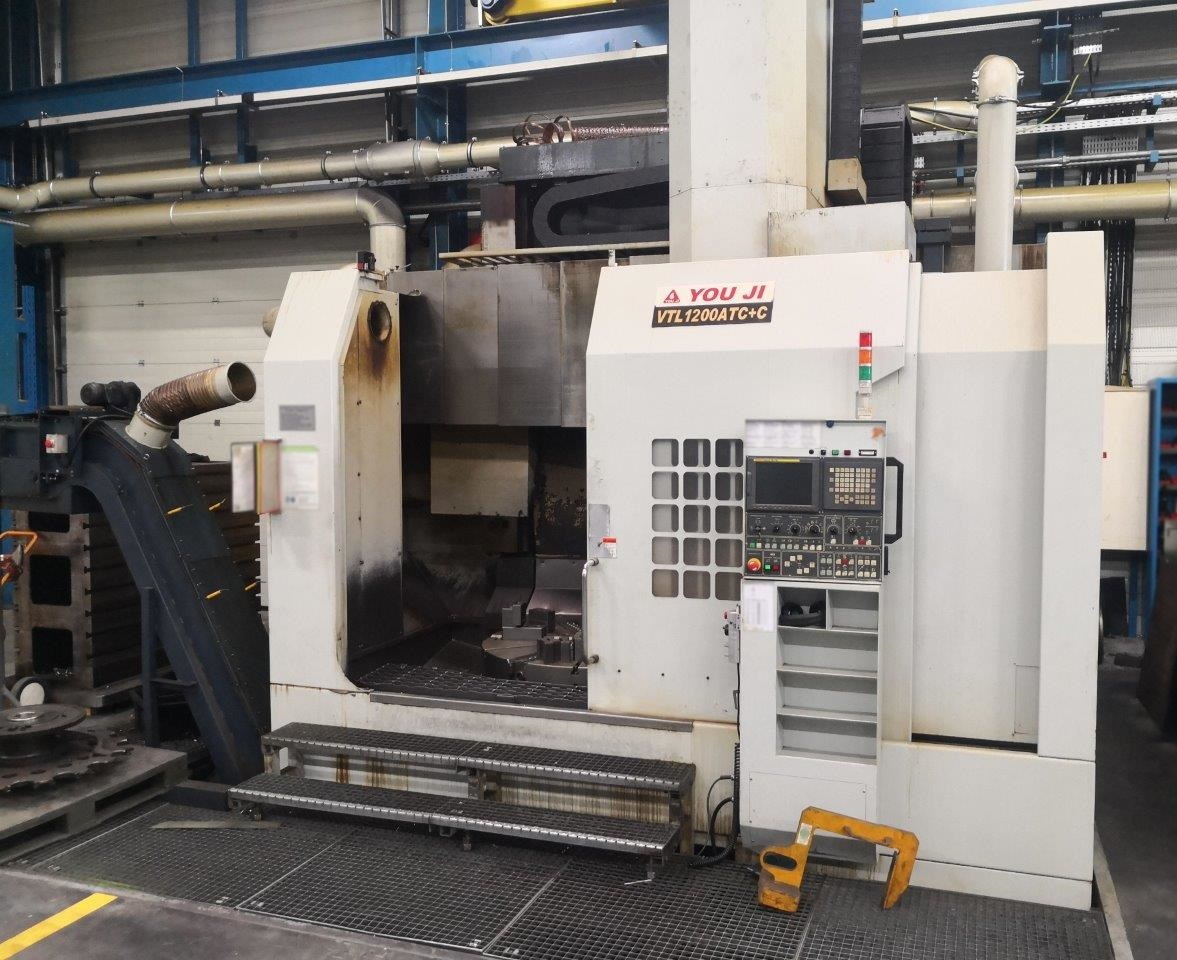

You Ji VTL 1200 ATC + C

Year of manufacture 2009
Fanuc 18iT control

Faceplate diameter 1250 mm
Faceplate loading capacity max. 5000 kg

Swing diameter 1600 mm
Turning diameter max. 1350 mm
Turning height max. 1200 mm

Table motor rating 37 / 45 KW
Table speeds max. 350 rpm
Table torque max. 9260 Nm
X axis travel -600 / +875 mm
Z axis travel 900 mm
C 360° / 0.001°

Hydraulic chuck diameter 1200 mm

C axis 360°/0.001°

12 station Tool magazine positions
12 live tool positions
Tool taper BT 50
Tool motor drive 7.5 / 11 KW
Tool speeds max. 2400 rpm (2 steps)
Tool length max. 380 mm
Tool weight max. 50 kg

Machine weight approx. 33500 kg
Machine dimensions approx. 5580 x 4260 mm
Machine height approx. 5400 mm

Equipped with:
C-Axis
Driven tools
Hydraulic chuck
Coolant unit
Paper filtration

Proposal Number: V(K)-6861
