Various Miscellaneous Machines

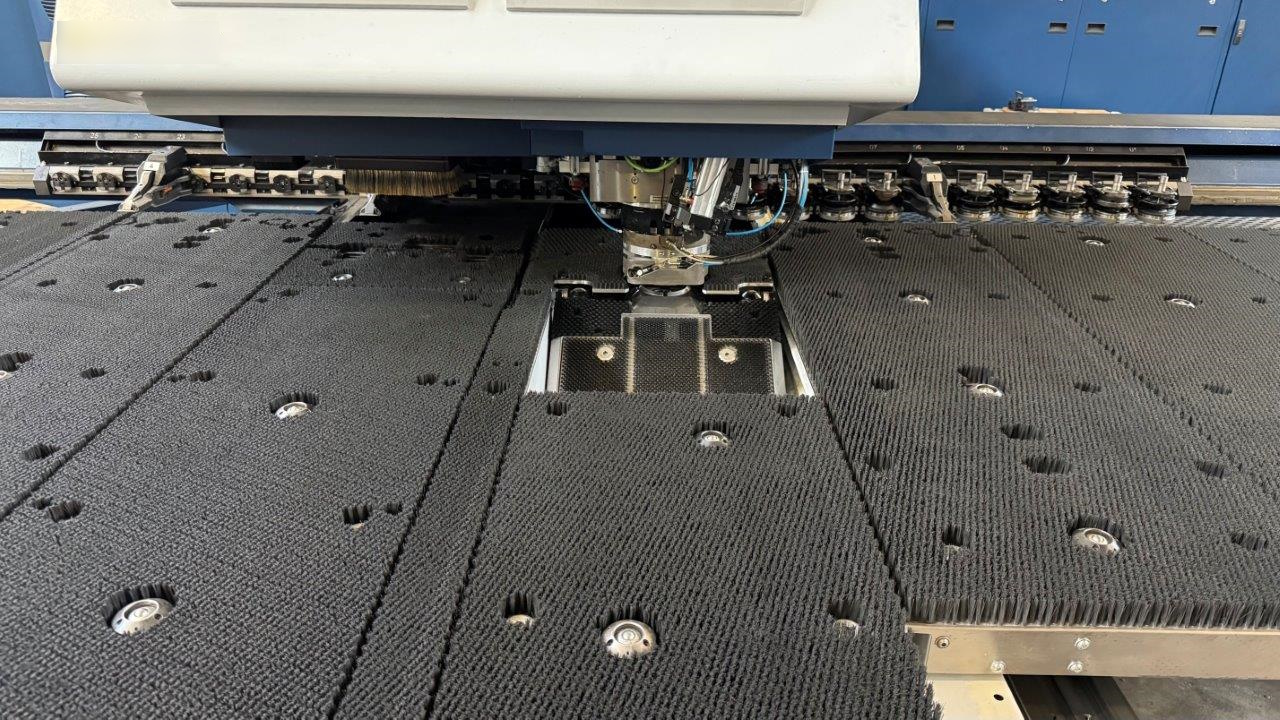

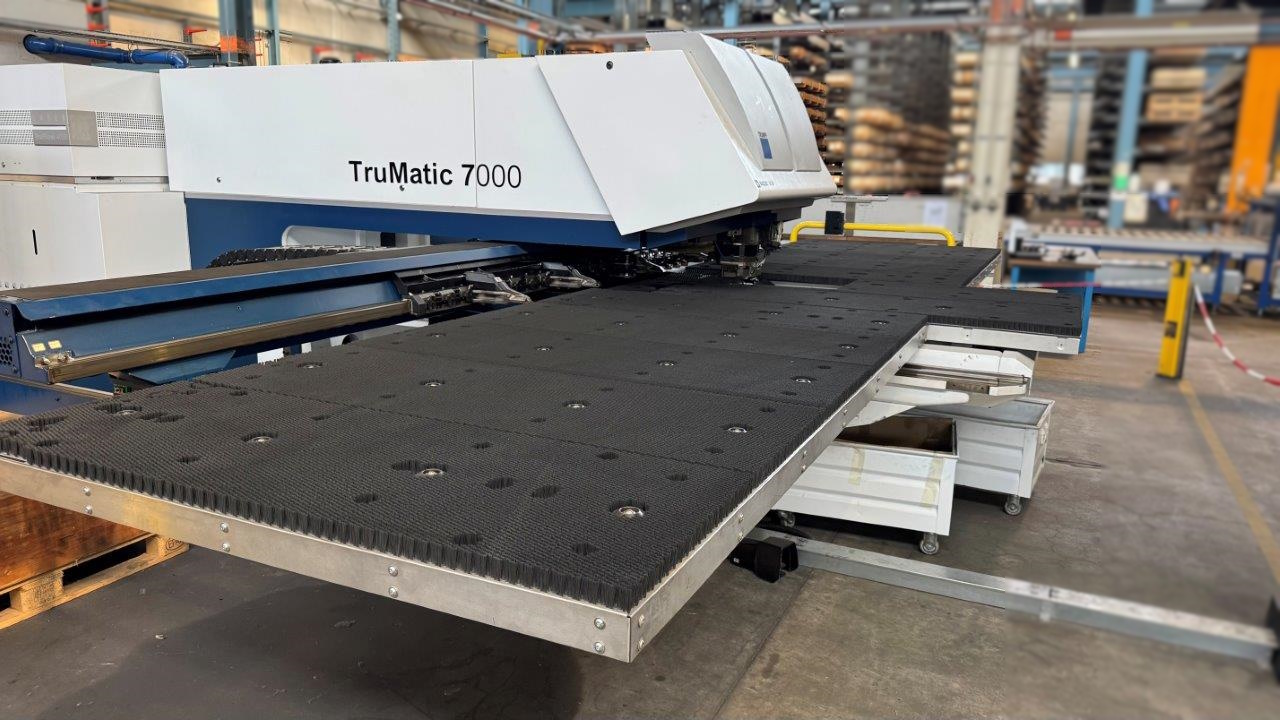

Punch Laser Machine

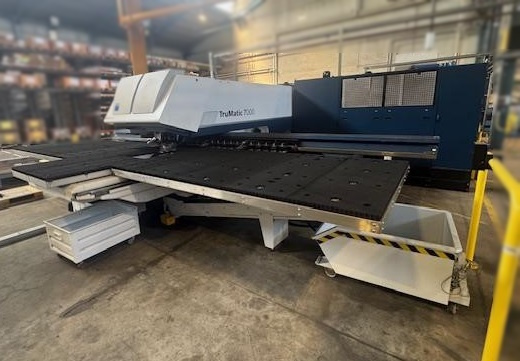

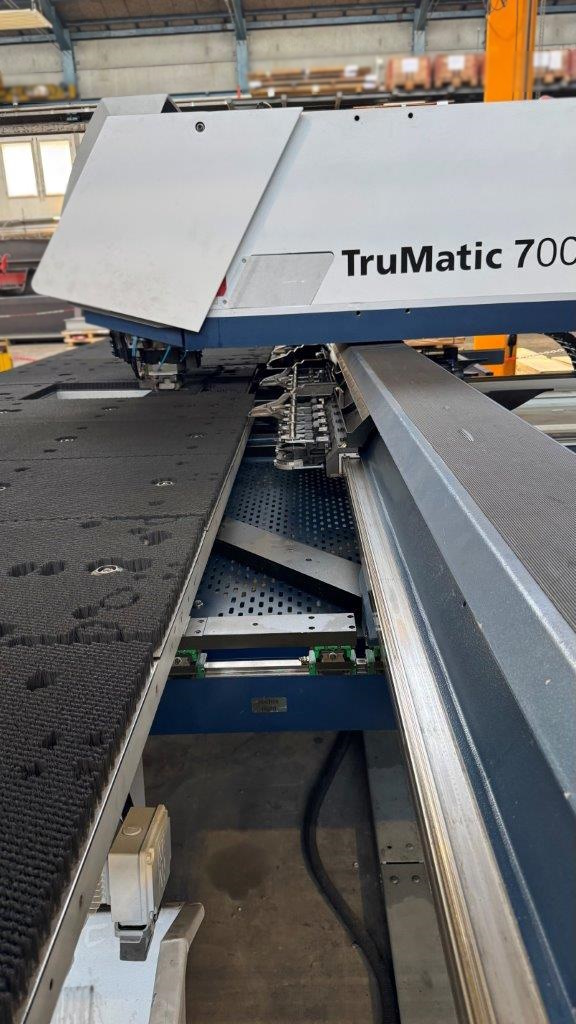

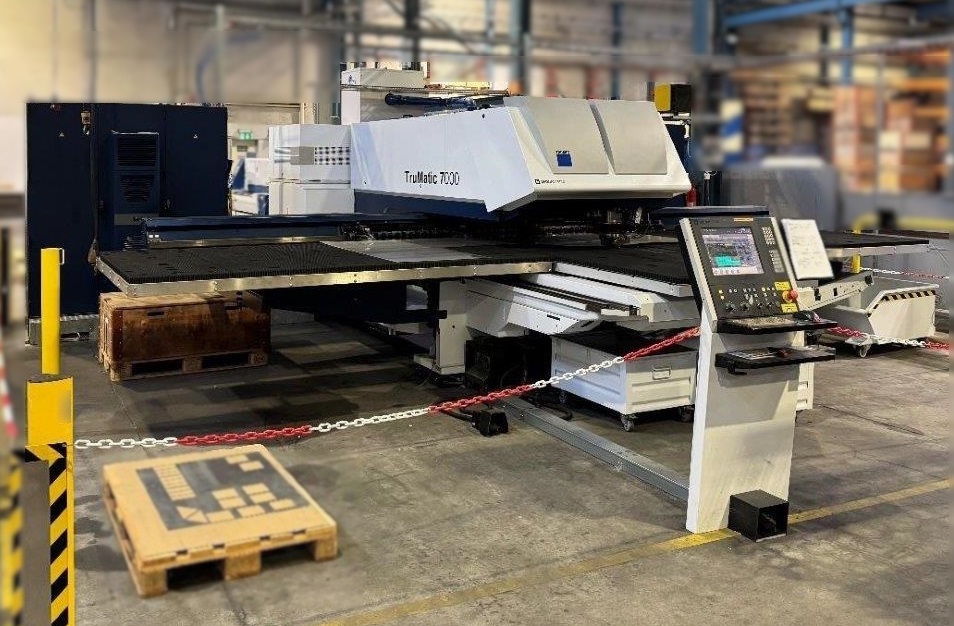

TRUMPF TruMatic 7000

Year 2010

Rexroth IndraMotion MTX

Laser Type: TruFlow 4000
Laser Power: 4000 W
Working range:: Punching mode without repositioning: X 3050 mm
Punching mode: Y 1550 mm
Laser operation: X 3050 mm
Laser operation: Y 1550 mm
Combined operation: X 2500 mm
Combined operation: Y 1550 mm
Sheet thickness: 8 mm
Workpiece weight: max. 280 kg
Punching force: 220 kN
X Speed: max. 100 m/min.
Y Speed: max. 60 m/min.
Speed simultaneous: max. 116 m/min.
Maximum stroke rate::
Punching (E = 1 mm): max. 1200 1/min.
Marking: 3000 1/min.

Tools:
MultiTool tool changing time: 0.3 sec
Number of tools/clamps: 21 /4 pieces

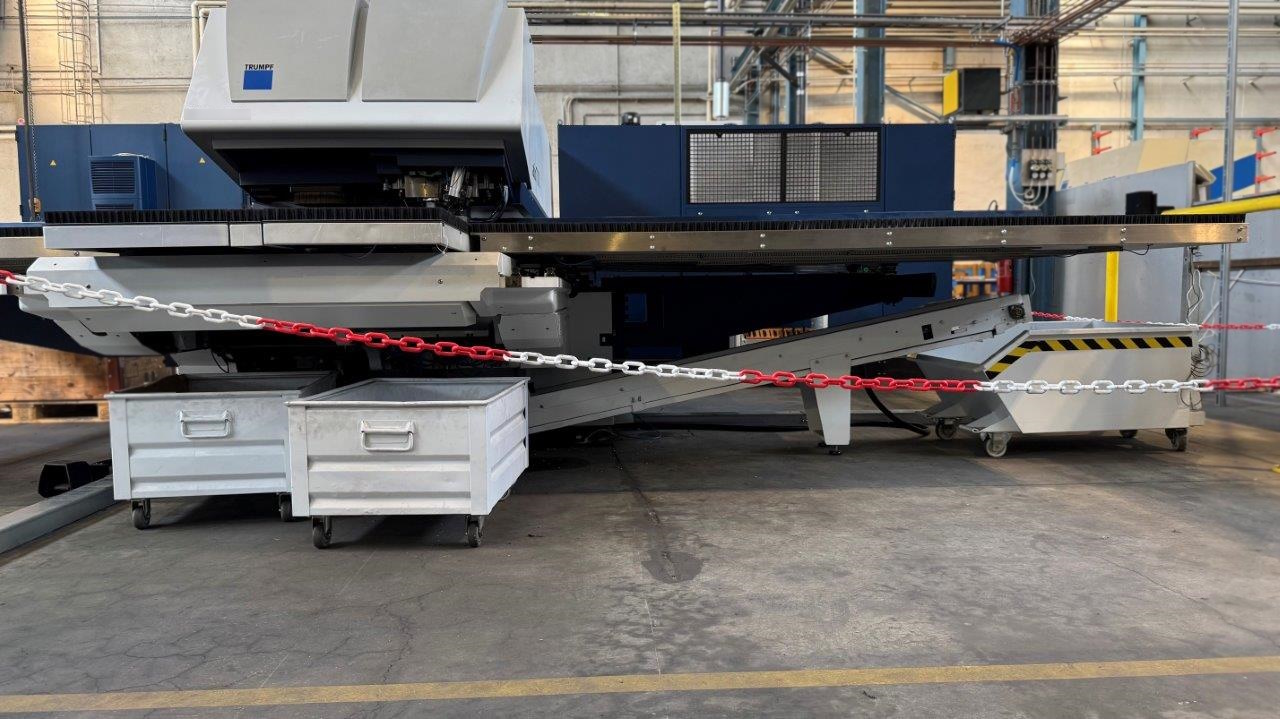

Part removal::
Part size, part removal flap, punching: max. 500 x 500 mm
Part size, part removal flap, laser: max. 500 x 500 mm

Machine weight: approx. 24100 kg
Transport width: approx. 2450 mm
Pneum. Connection : 25 Nm3/h
Electr. Connection : 87 kVA
Machine dimension: LxWxH 10190 x 8898 x 2328 mm

Equipped with :
Machine
- Sturdy, easily accessible C-frame
- Coordinate guidance for high-precision machining
- Linear magazine with 21 tool positions and 4 clamping claws
- Drives with maintenance-free three-phase motors
- Follow-up device with programmable hold-down device
- Footswitch mitt closing
- Ball tables
- Automatic switch-off

Laserstation
- Laser TruFlow
- High-frequency excitation

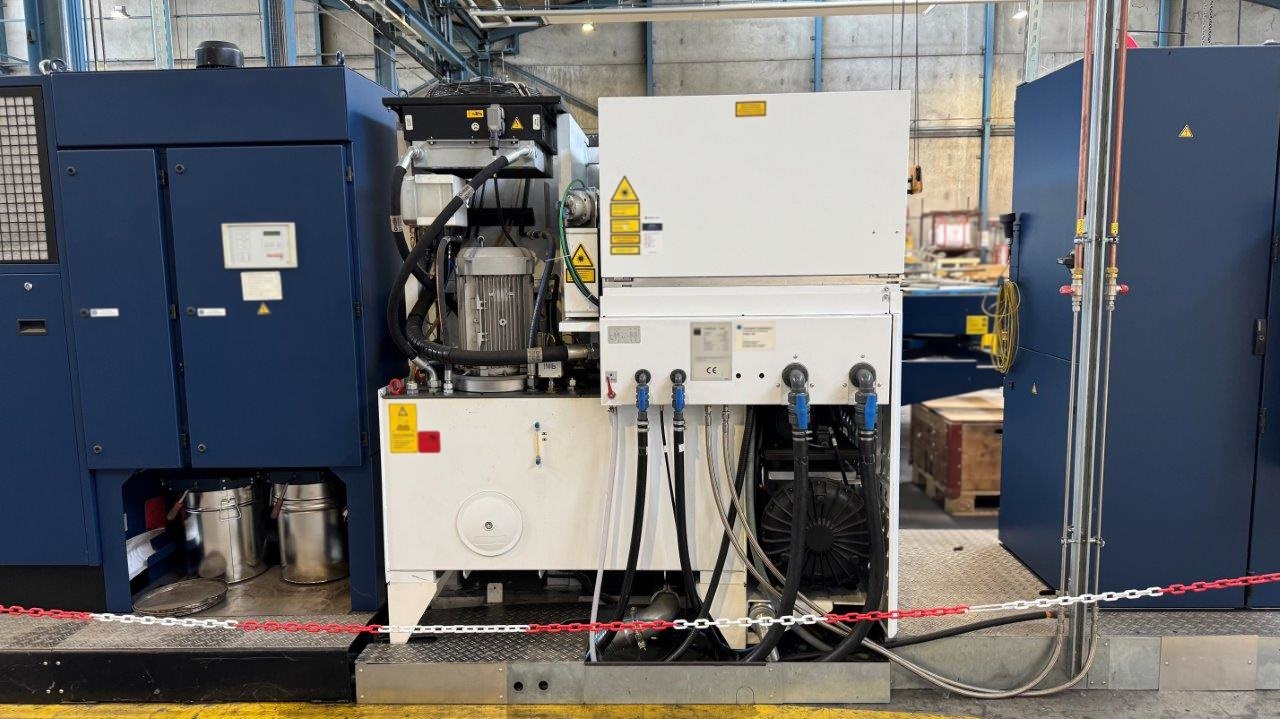

- Refrigeration unit
- TASC 3 laser control
- Closed beam guidance
- Spray lance ventilation with compressed air
- Progr. Cutting Gas Pressure
- Laser cutting head with 170 mm focal length
- Universal cutting head quick-change device UTI with

Bus connection
- LensLine
- FocusLine
- ControlLine
- NitroLine
- SprintLine
- ContourLine
- FlyLine
- PlasmaLine
- High-speed cutting
- Additional Xp and Yp axes
- Ejector cylinder laser parts
- Quick flap for laser parts 500 x 500 mm
- Liftable laser cutting support
- Slag cone detection
- Logbook function laser

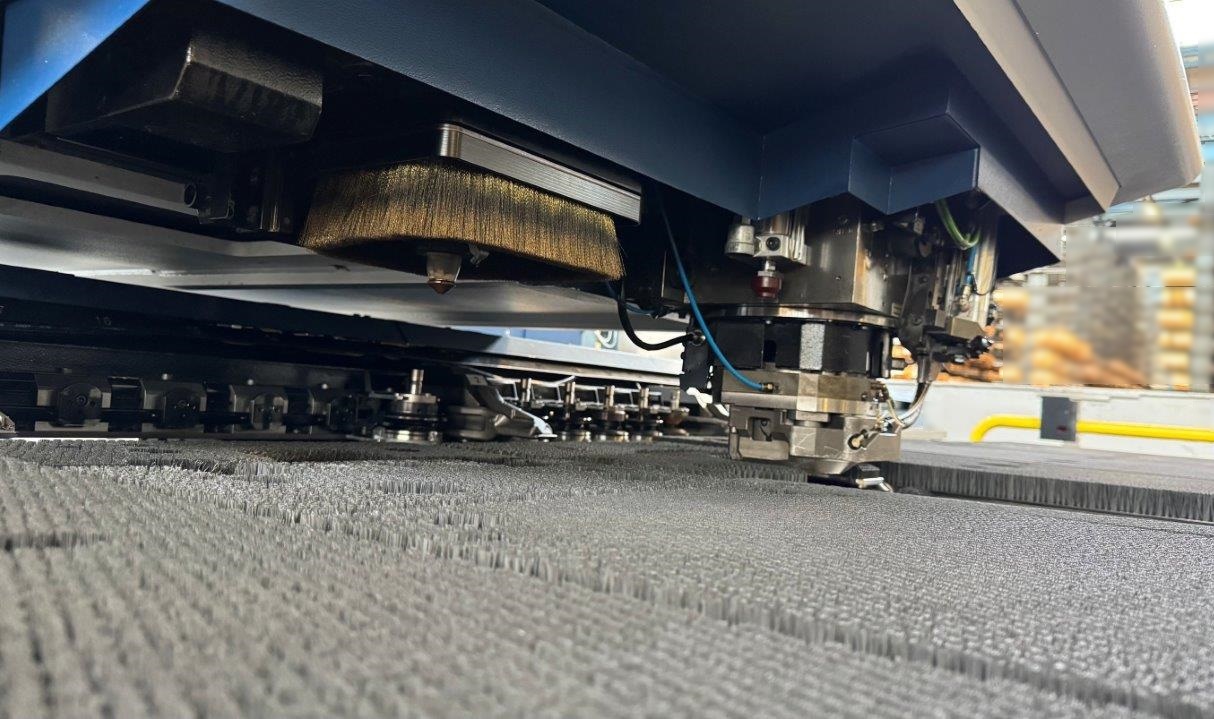

Punching station
- Electro-hydraulic punching head
- Rotatable mono tool holder
- Tool length compensation
- Programmable hold-down device with adjustable hold-down force
- Stroke counter punch
- Spray lubrication punch
- Punched slug extraction
- Bulge detection
- Flap for stamped parts 500 x 500mm
- Monitoring of fill level in the punching console

Control
- Open control system based on Bosch Rexroth IntraMotion MTX
- Control panel with 15" TFT touchscreen
- Program management and 80 GB storage space
- Diagnostic function with laser logbook
- Integrated technology data
- Teleservice
Data transfer
- Network connection RJ45 and USB interface

Security
- CE marking
- Multi-beam light barriers
- Monitoring system for gas pressure, temperature, cooling water, etc.
- Quick shutdown hydraulics
- Protection against scattered radiation
- Compact dedusting system

Special equipment - TruFlow 4000

- Vibration-damped installation
- Thread forming function
- MultiTool function
- Roll technology function
- Chip conveyor with tipping container
- Active die
- Blow-out device for small parts
- Brush tables
- Signing, fast beading function
- Resetting cylinder

Condition: Very good - 2023 Workshop overhaul

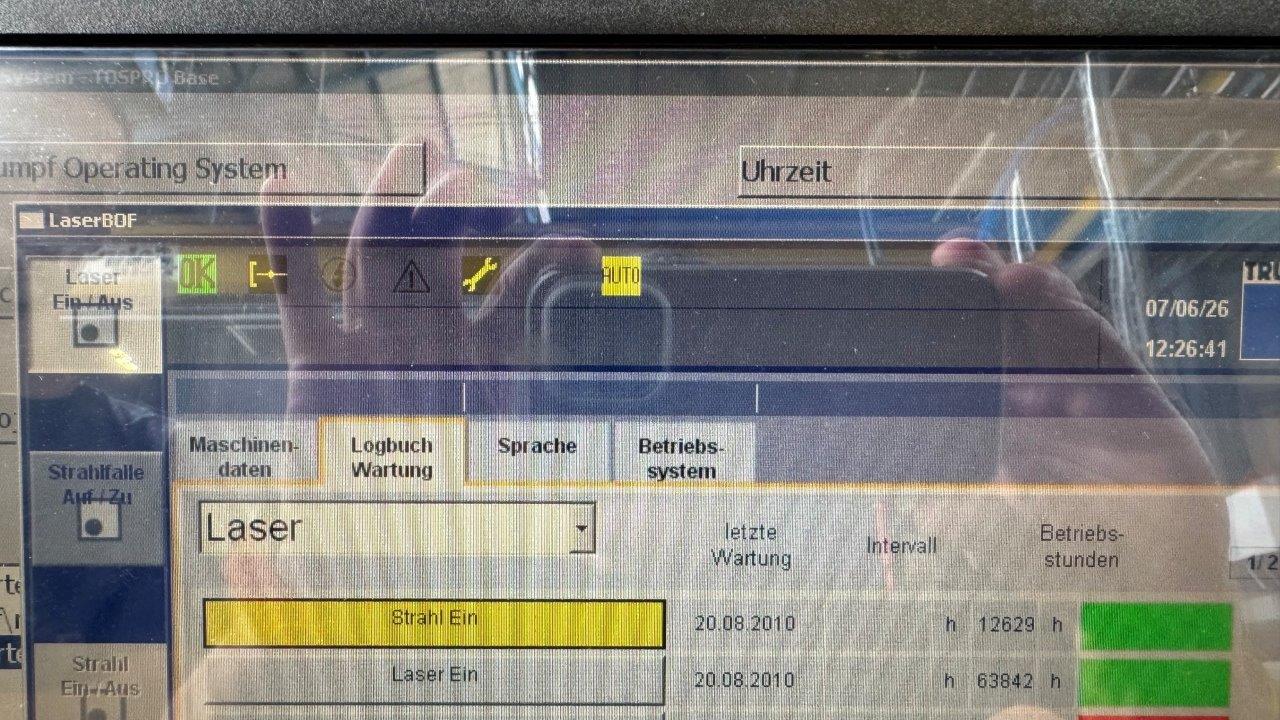

Time laser ready for operation (10.02.26) 63760 hrs
Time laser beam on (10.02.26) 12623 hrs

Proposal Number: V-7199
Click here to Contact Us for more details

CNC Laser Cutting Machine
Fiber Laser 9 KW

Year 2018

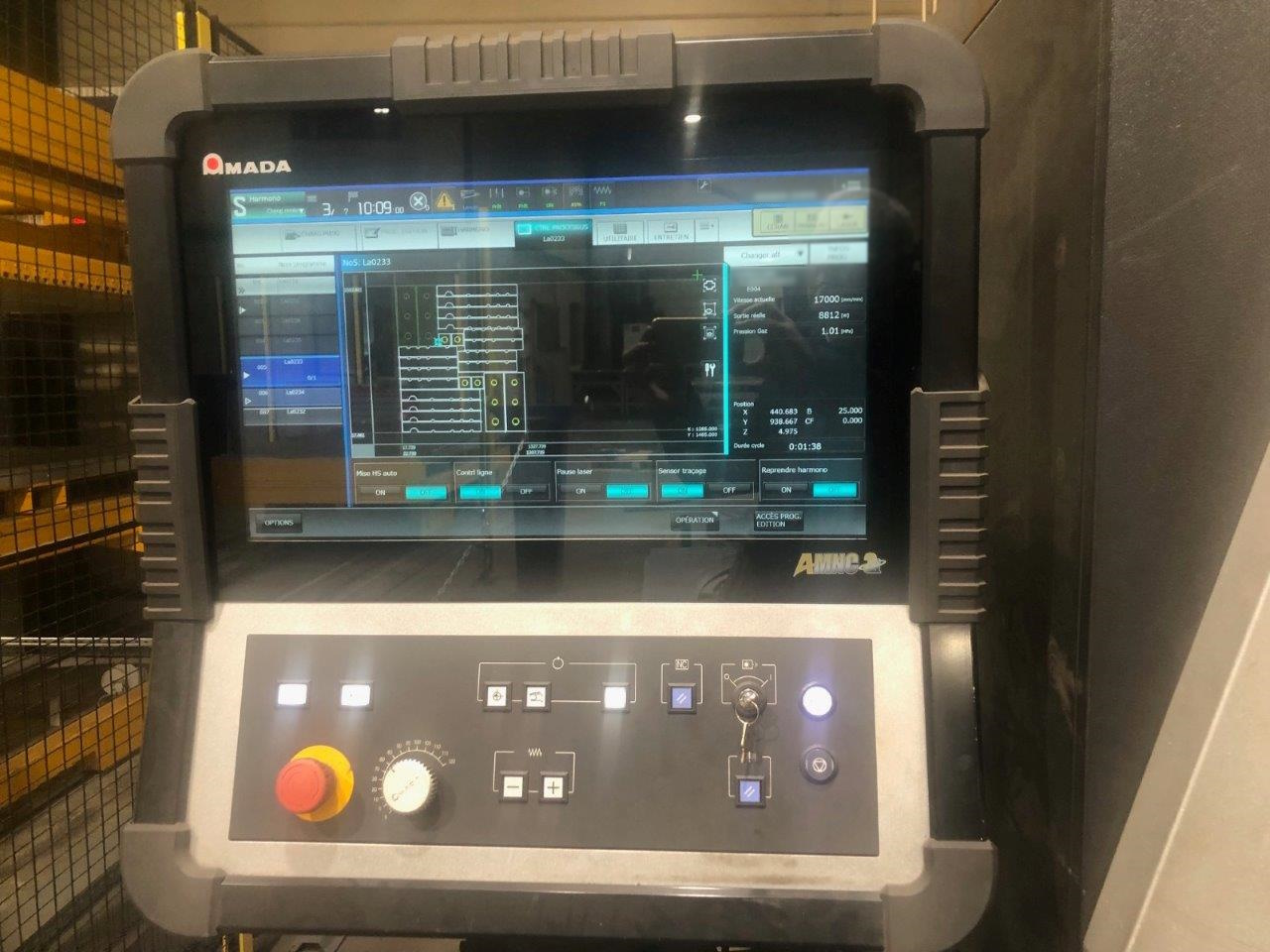

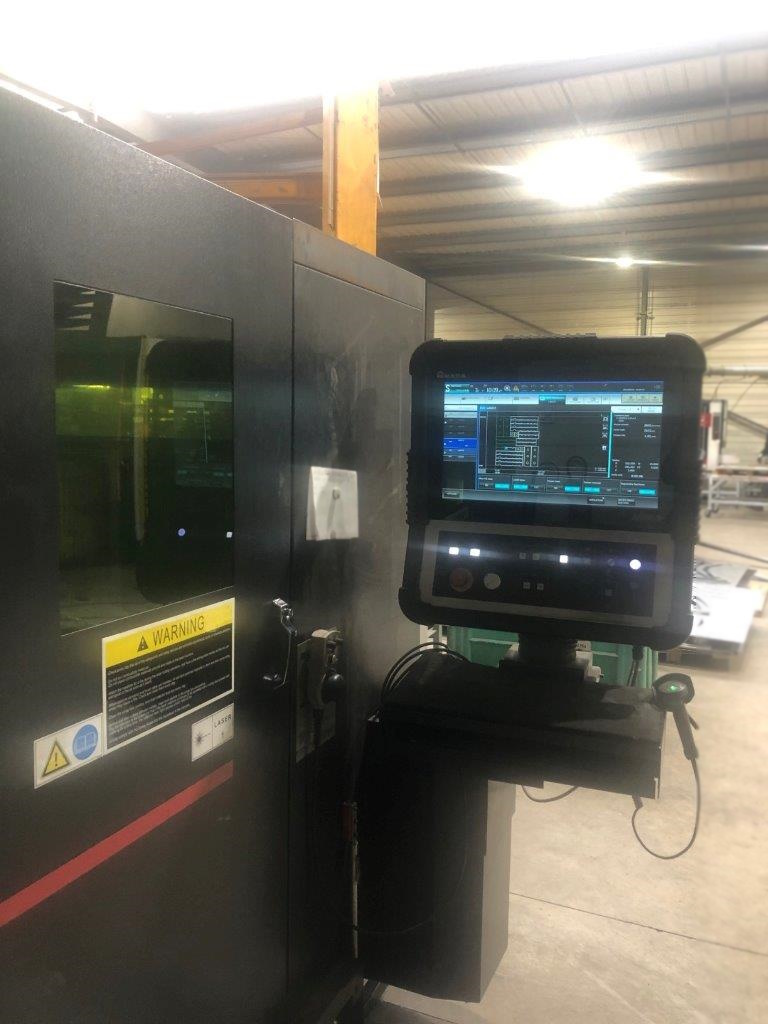

AMNC 3i CNC control
Laser source AJ 9000 (9 KW)

Traverses:
X 3070 mm
Y 1550 mm
Z 100 mm

Axis speeds X,Y,Z 120/80 m/min.
Cutting feeds 0 - 60 m/min.
Z axis sensor HS 2013
Loading/unloading storage towers ASLUL TWIN
16 station Nozzle changer

Equipped with:
Clean cut
NC focus control
Lens 190 mm
Oil Shot
Bar code reader
WACS
Automatic scrap conveyor
16 station nozzle changer

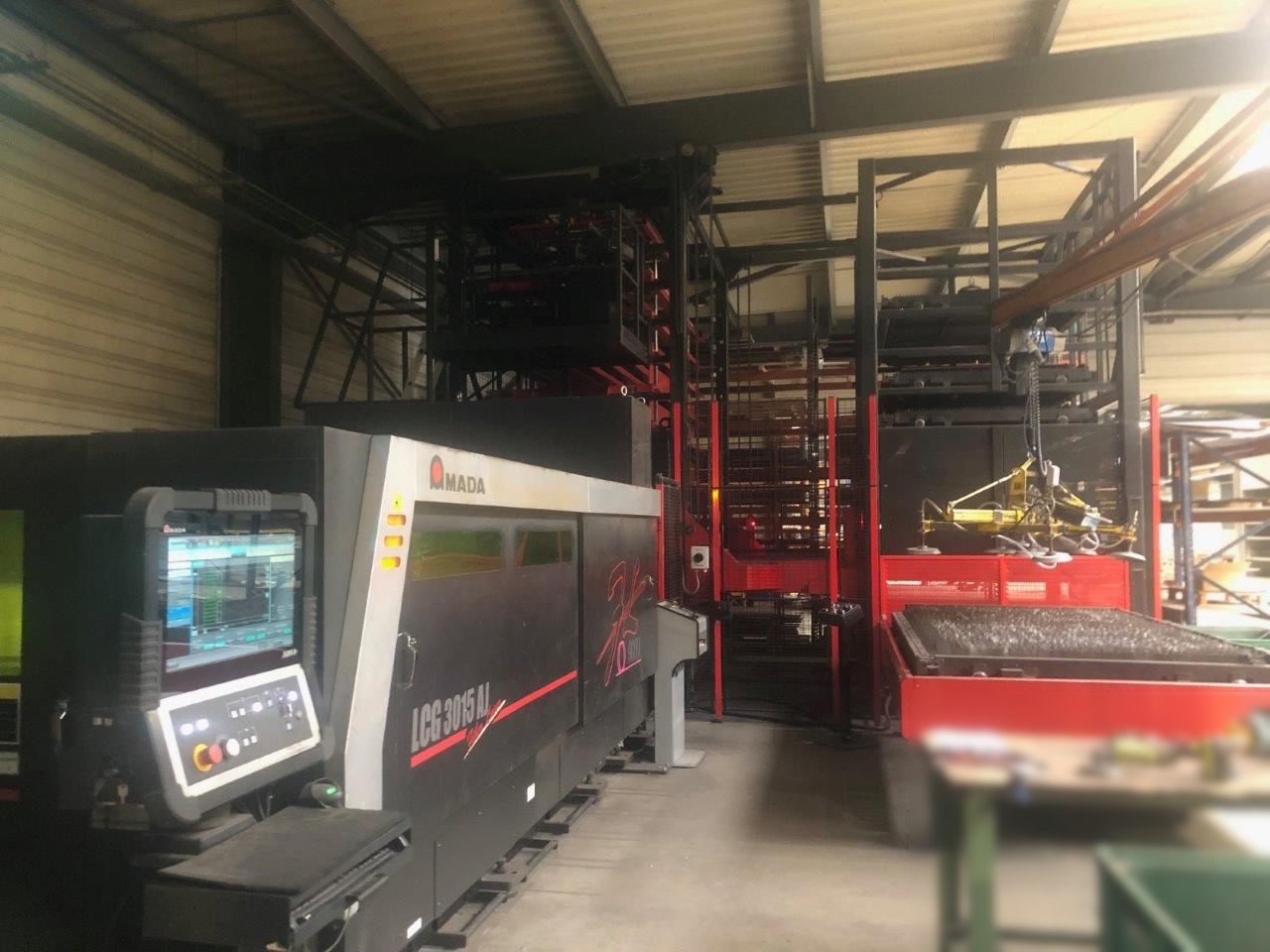

Loading/unloading storage towers ASLUL TWIN

Very good condition

CNC Laser Cutting Machine - Fiber Laser 9 KW

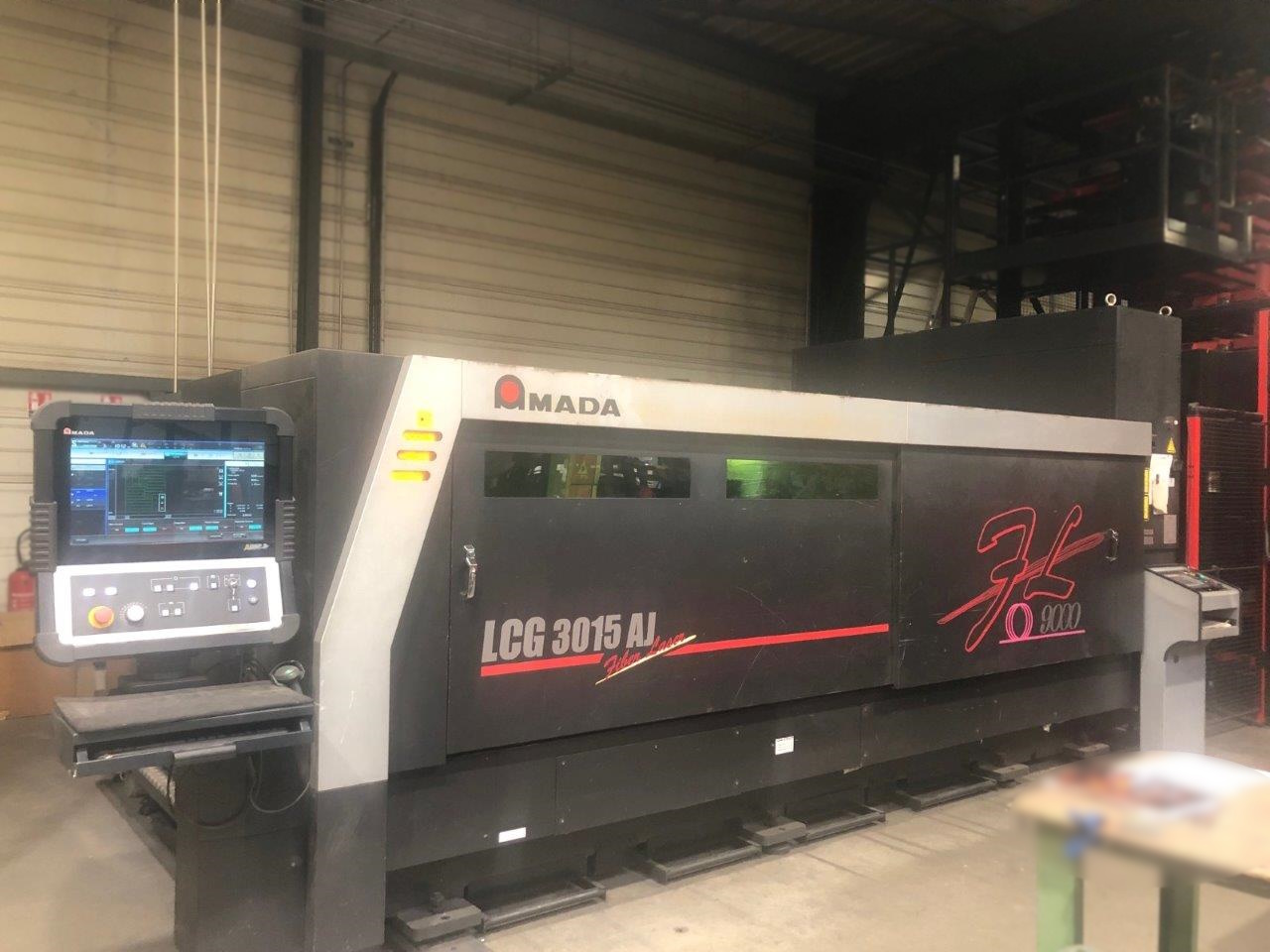

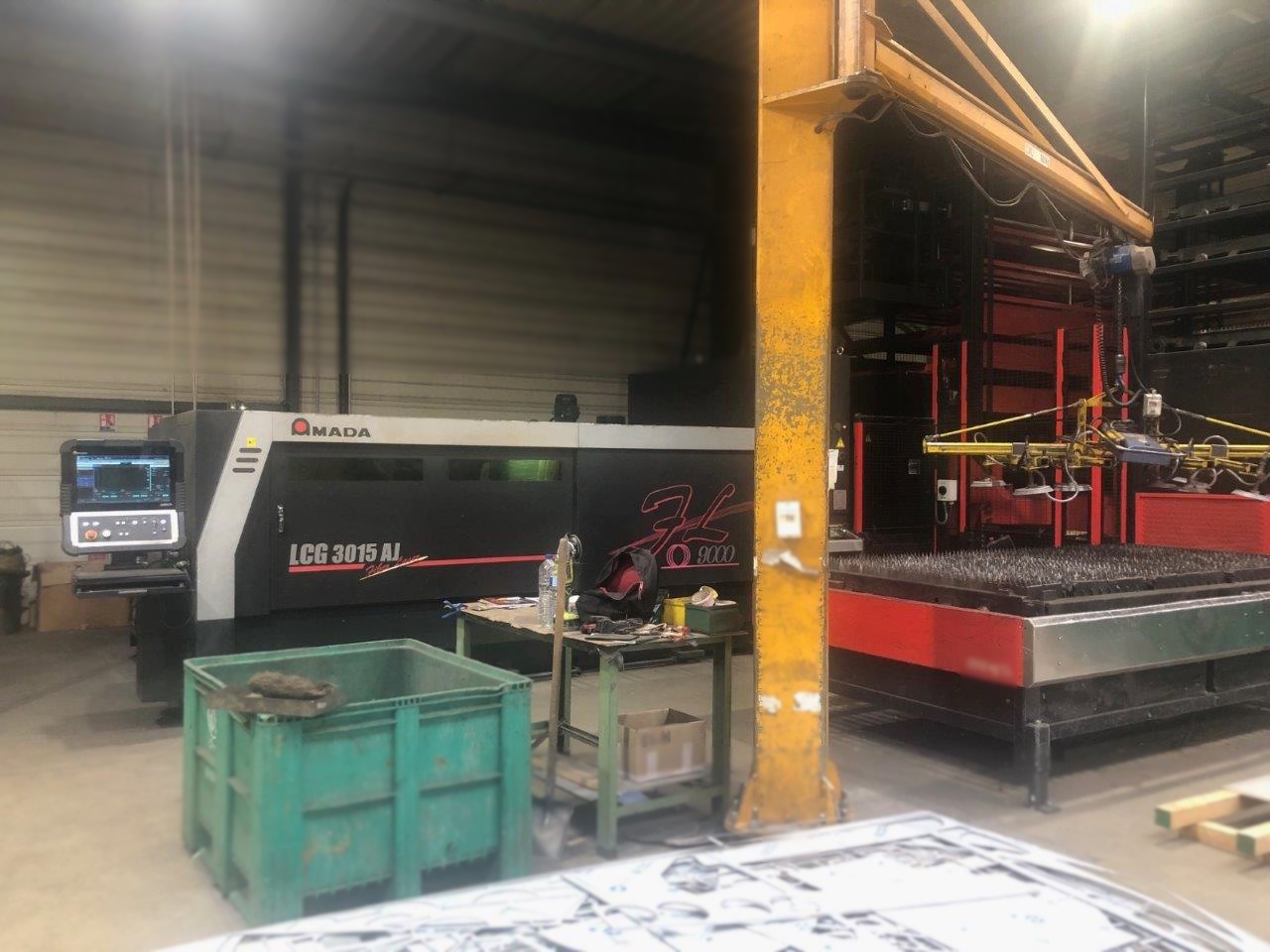

Amada LCG 3015 AJ M2 + ASLUL Twin for sale

Proposal Number: V-7157
Click here to Contact Us for more details

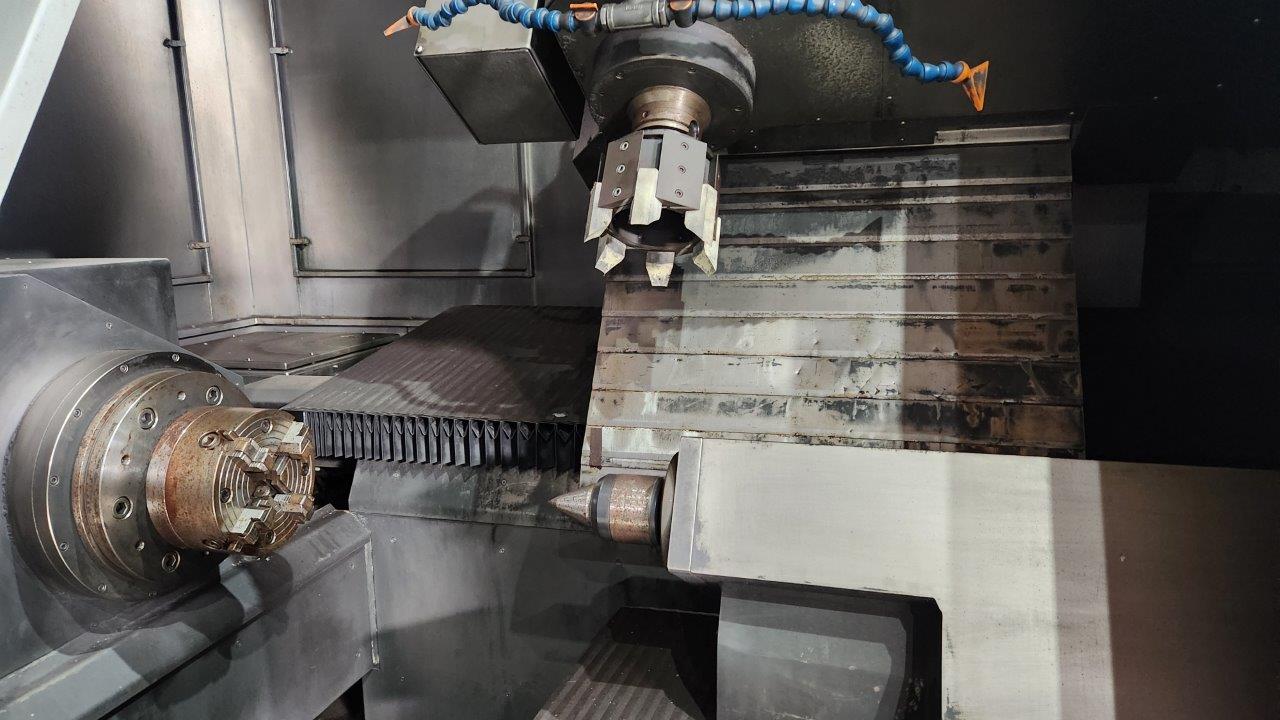

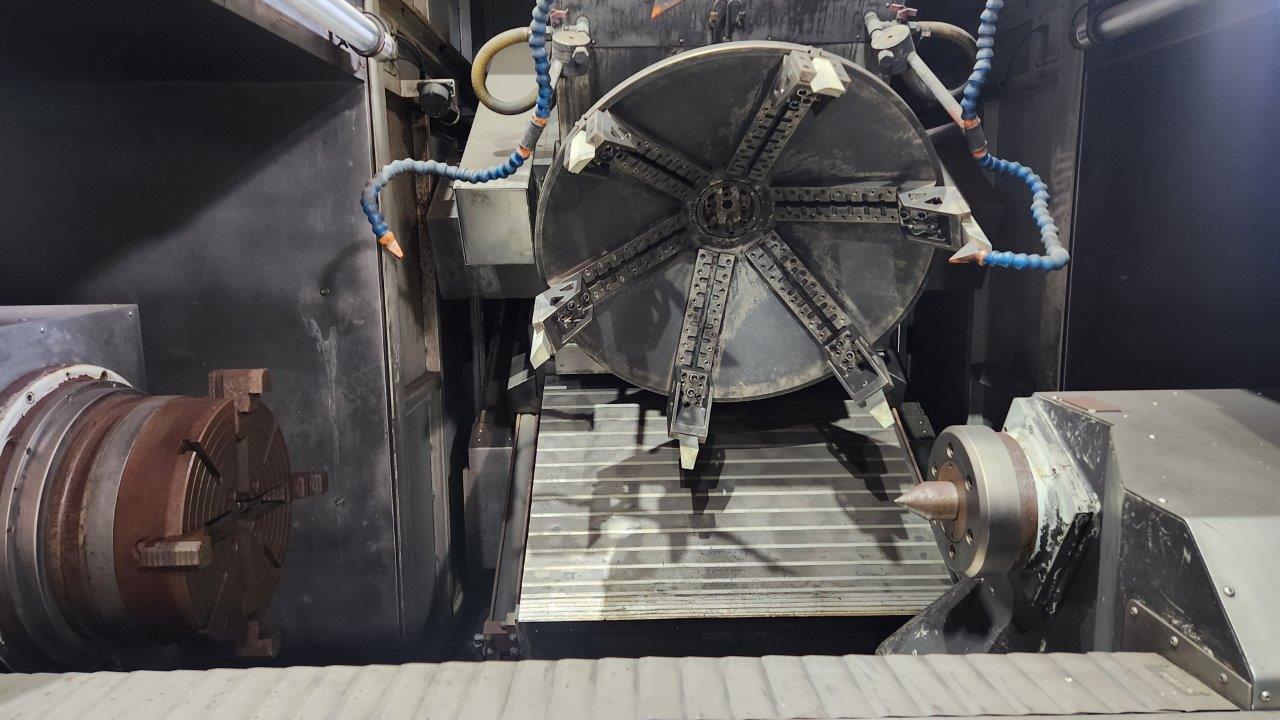

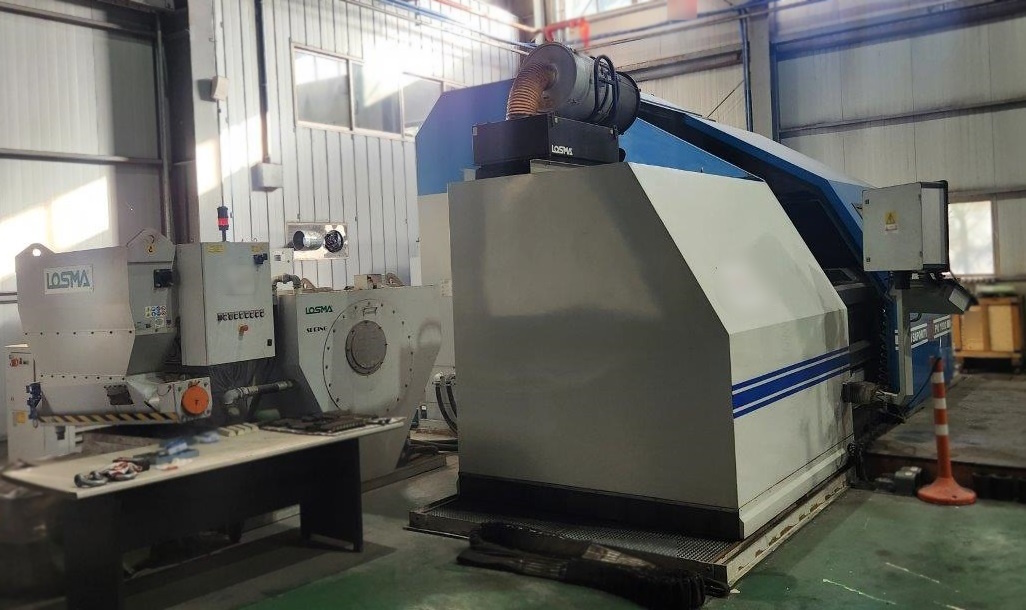

CNC Ball Valve Grinding Machine

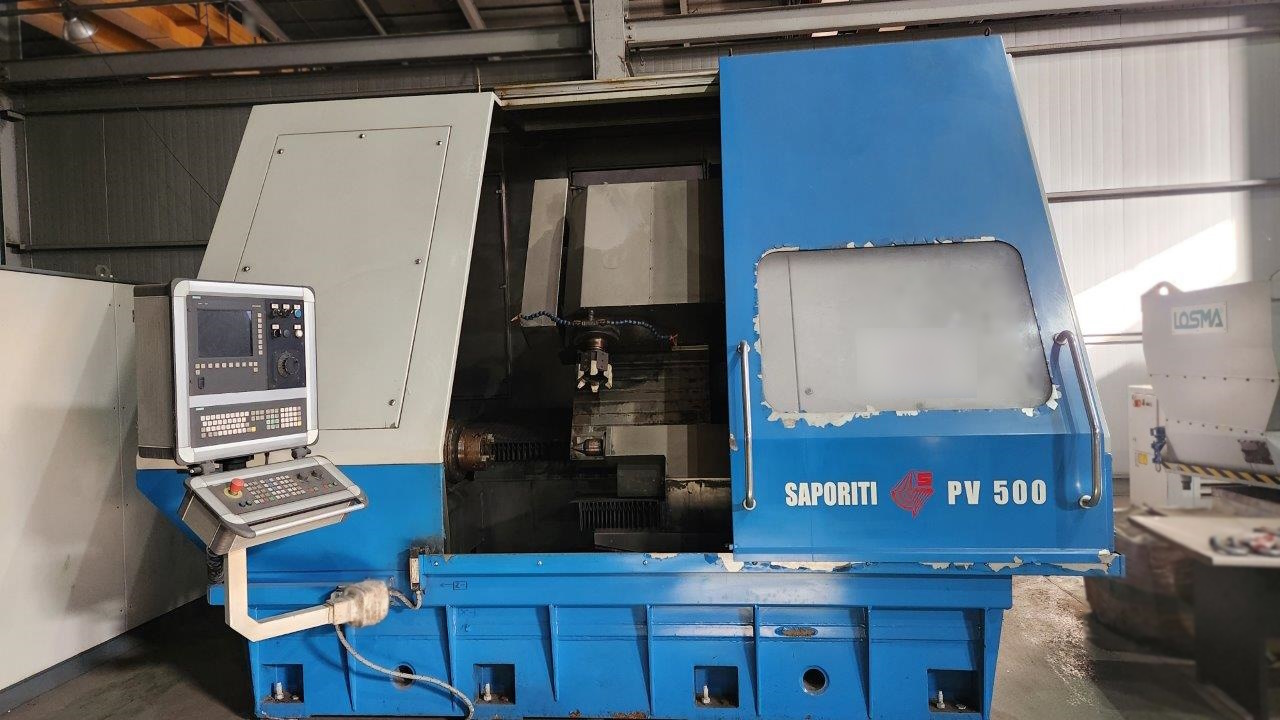

Saporiti PV 500

Year 2014

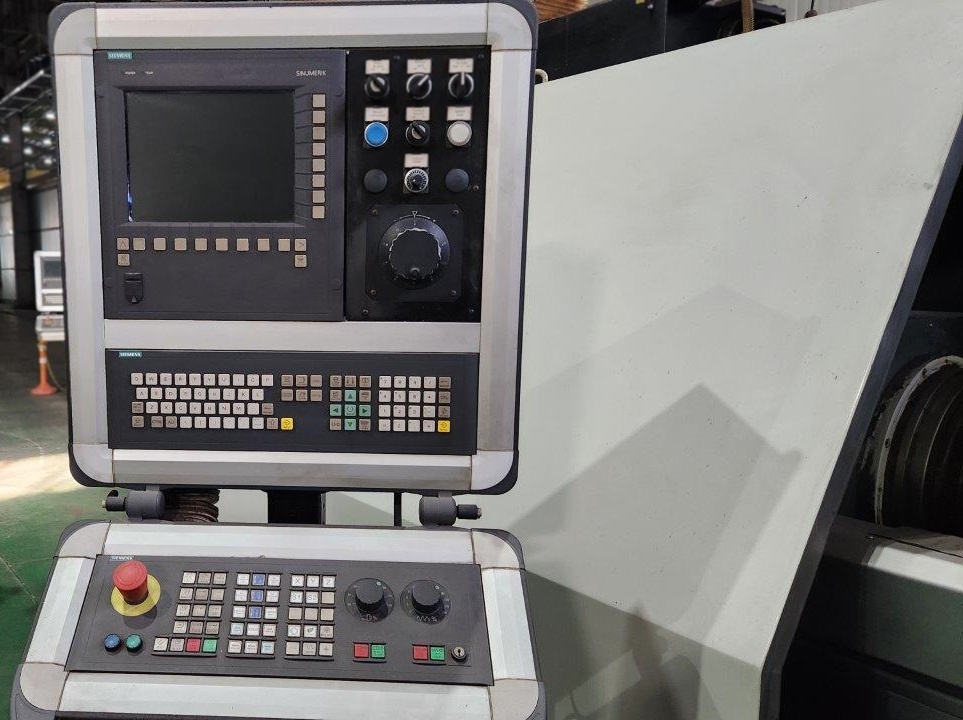

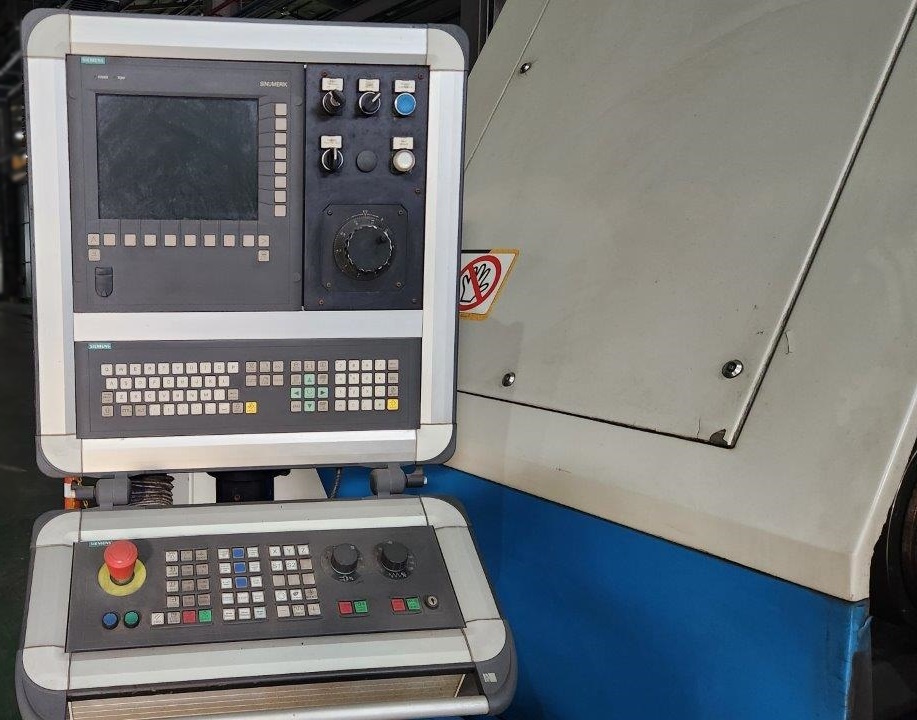

Siemens Sinumerik 840D

Ball/Sphere diameter max. 500 mm

Travels: X Axis 510 mm
Z Axis 950 mm
Y Axis +/- 1.5 mm

Work dia. x length max. Ø 600 x 1100 mm

Work weight max. 1000 kg

Headstock speed max. 200 rpm

Grinding wheel speed max. 6000 rpm

Water filter 2000 l

RENISHAW with Saporiti customized software for easy centring of the tool with the ball

Machine dimensions L x W x H 3300 x 2500 x 3000 mm

Required floor space L x W x H 7700 x 6000 x 3100 mm

Machine weight approx. 15000 kg

Condition said to be excellent

Proposal Number: V-7140
Click here to Contact Us for more details

CNC Ball Valve Grinding Machine

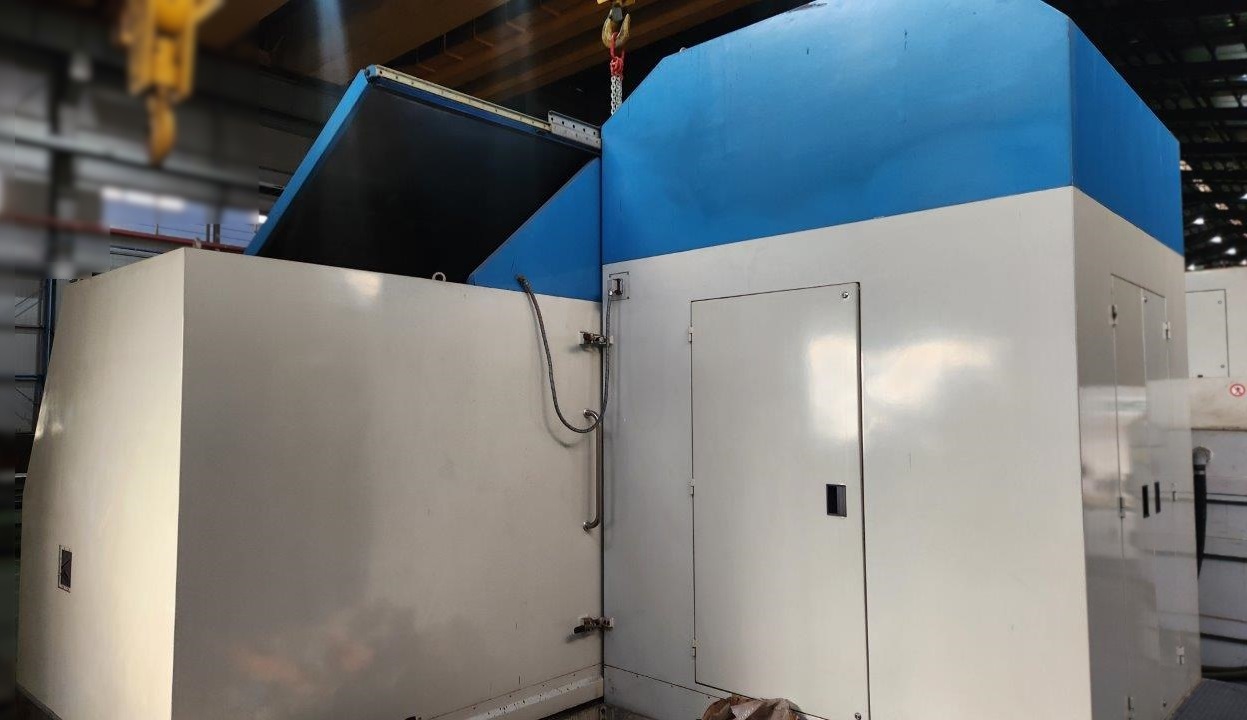

Saporiti PV 1000

Year 2014

Siemens Sinumerik 840D

Ball/Sphere diameter max. 1100 mm

Travels: X Axis 1150 mm
Z Axis 1350 mm
Y Axis +/- 2 mm

Work dia. x length max. Ø 700 x 1100 mm

Work weight max. 6000 kg

Headstock speed max. 200 rpm

Grinding wheel speed max. 1200 rpm

Water filter 3000 l

RENISHAW with Saporiti customized software for easy centring of the tool with the ball

Machine dimensions L x W x H 8000 x 4100 x 3500 mm

Required floor space L x W x H 9100 x 8200 x 3600 mm

Machine weight approx. 36000 kg

Equipped with:
Hydraulic System

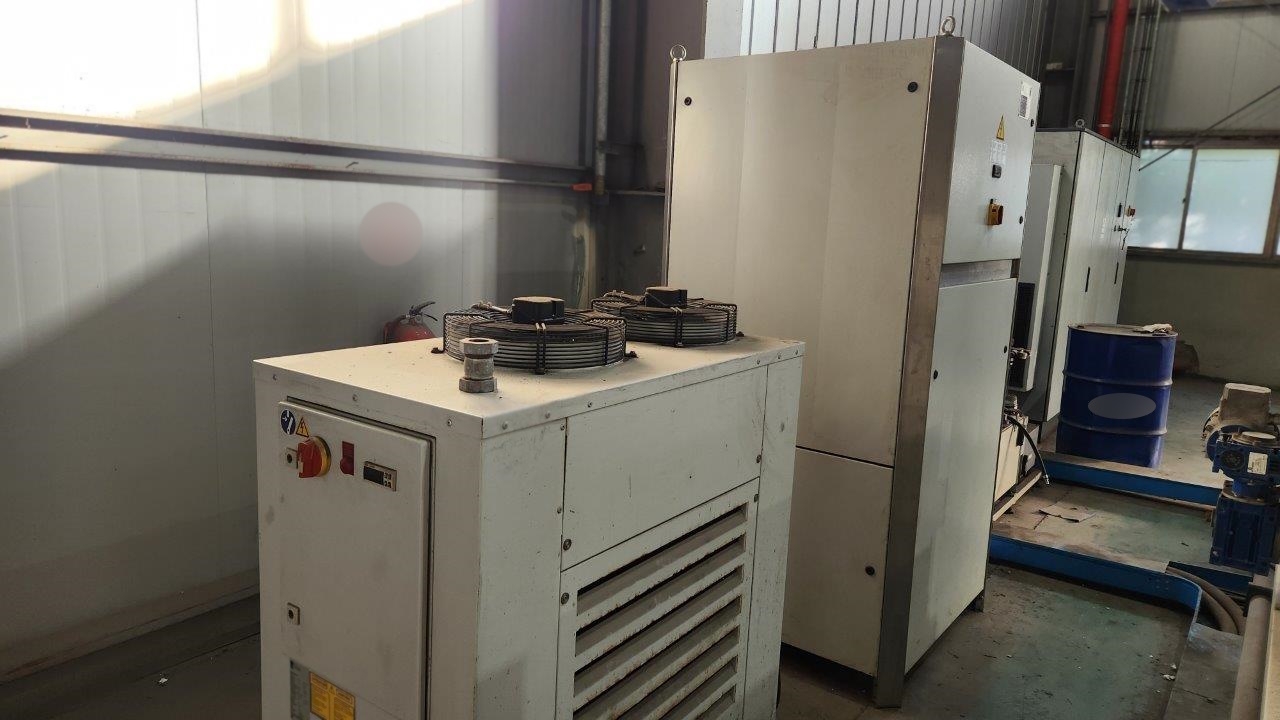

Coolant chiller
Motor chiller

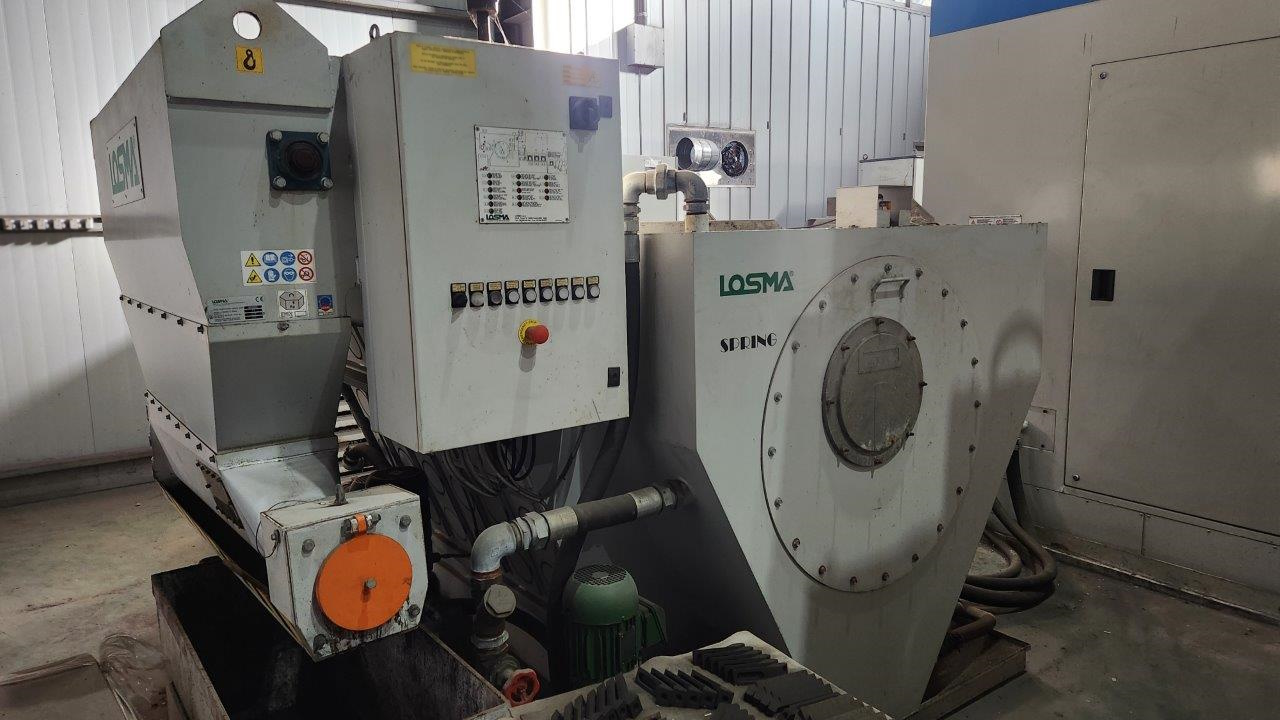

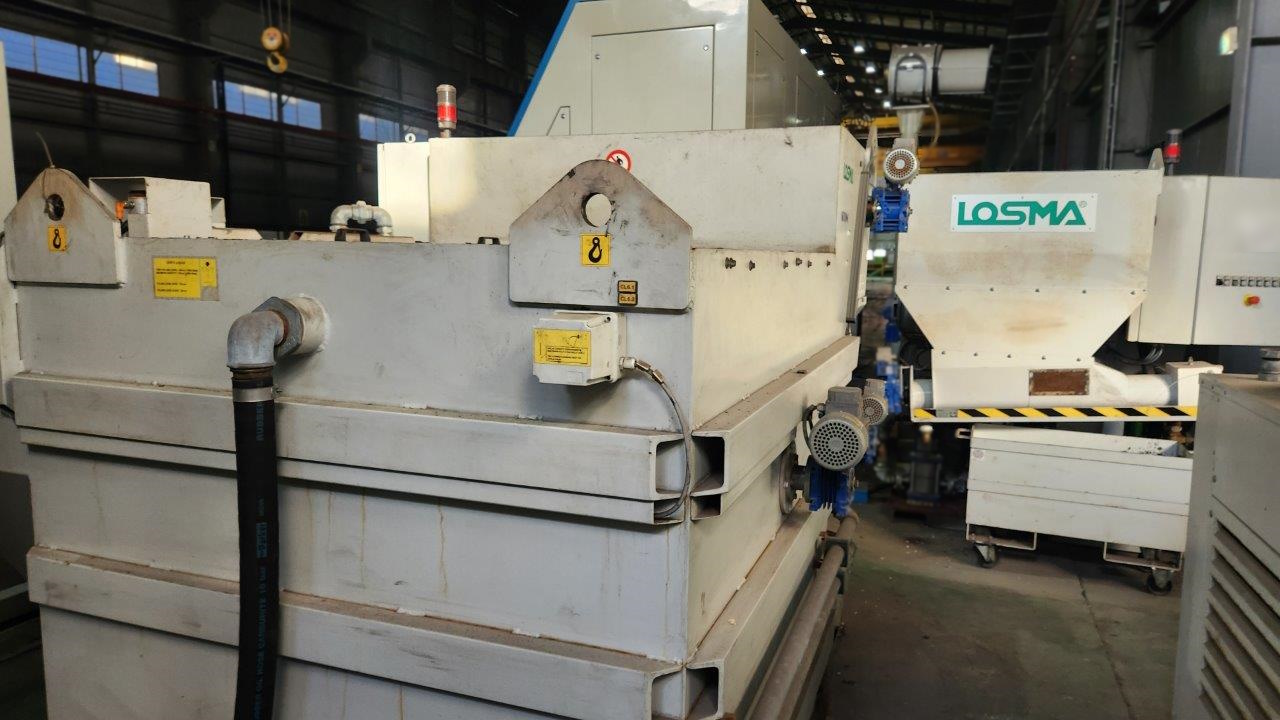

Coolant filter

Condition said to be excellent

Proposal Number: V-7141
Click here to Contact Us for more details

Are you measuring your large parts in house ?

We make it affordable with this second hand machine

Detailed dimensional inspection and quality control, especially for complex geometries and medium to large sized parts

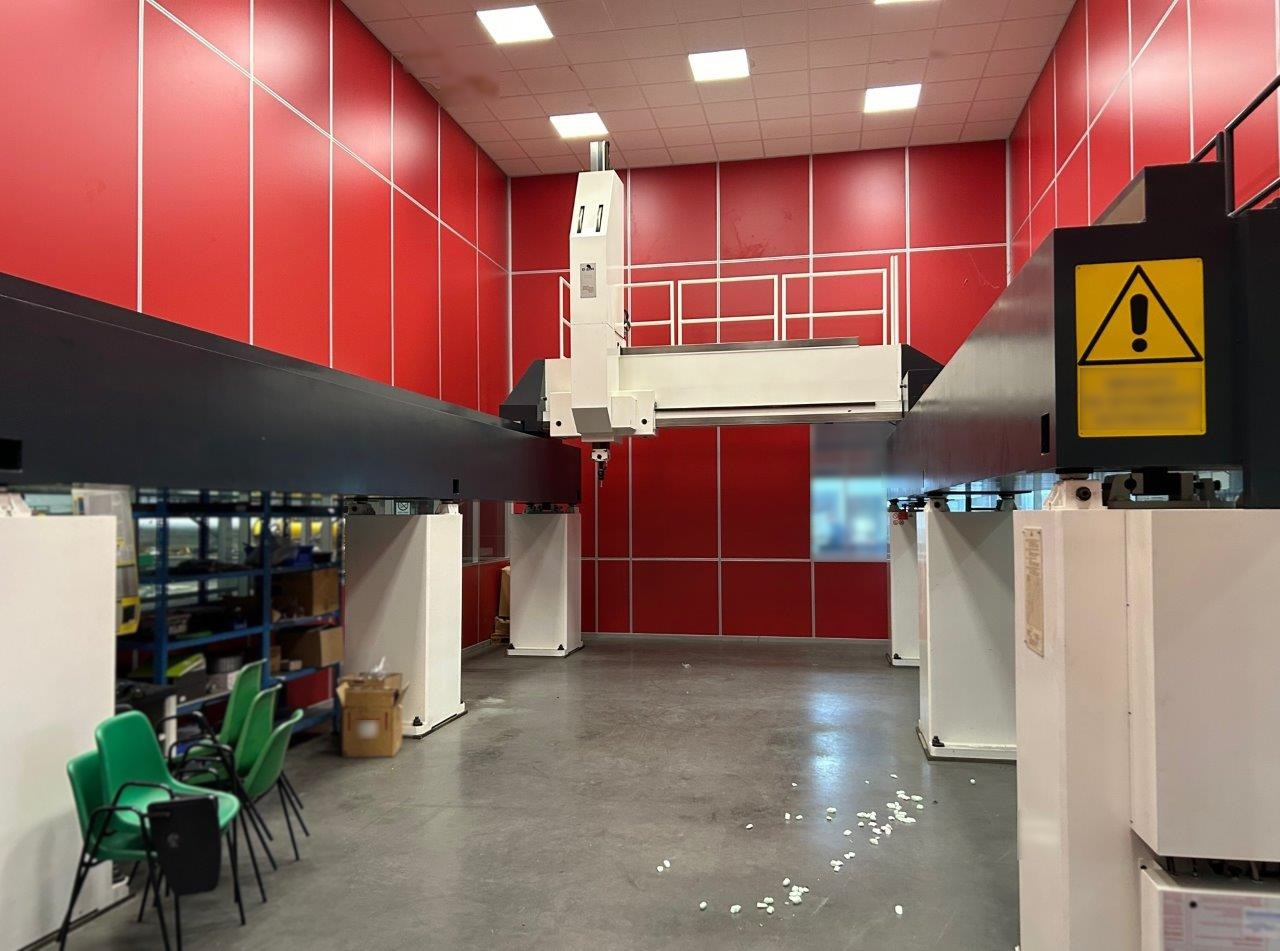

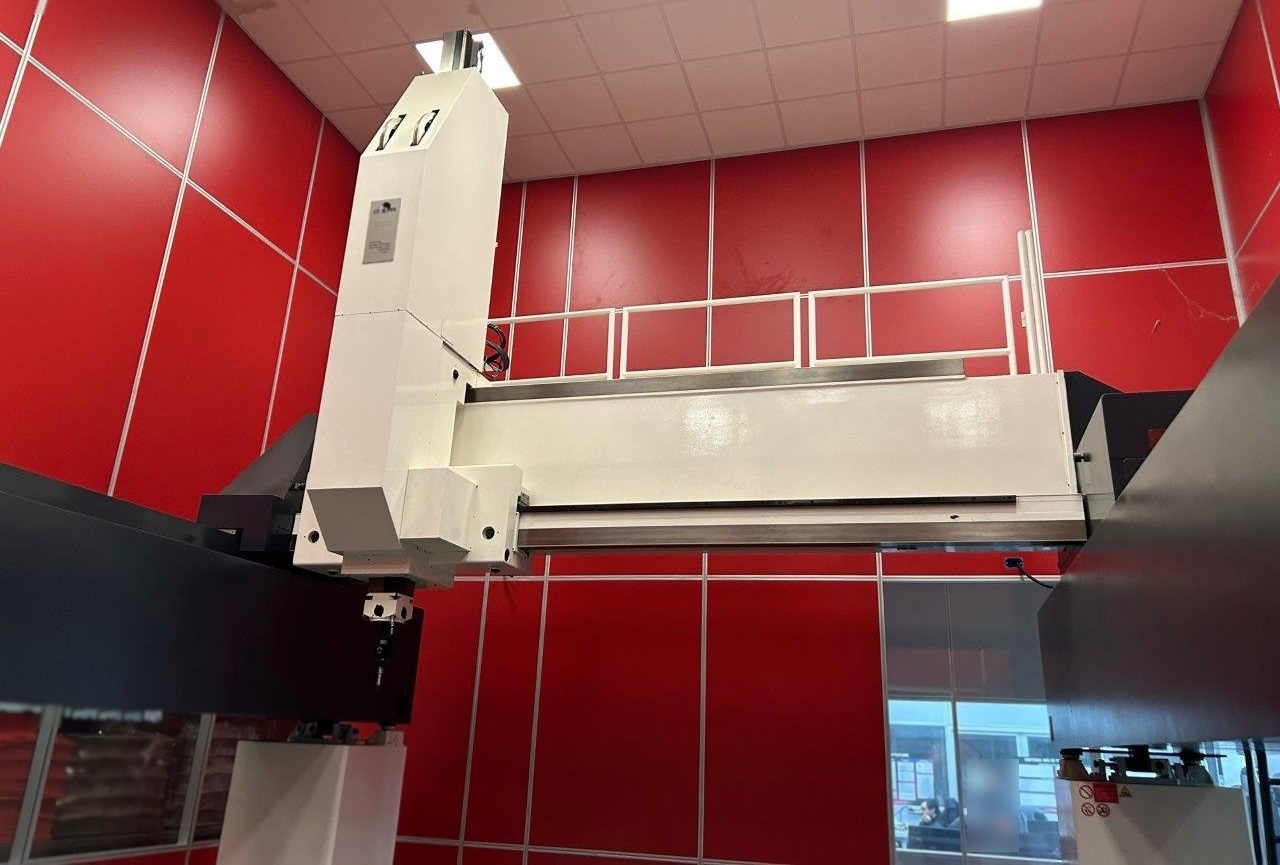

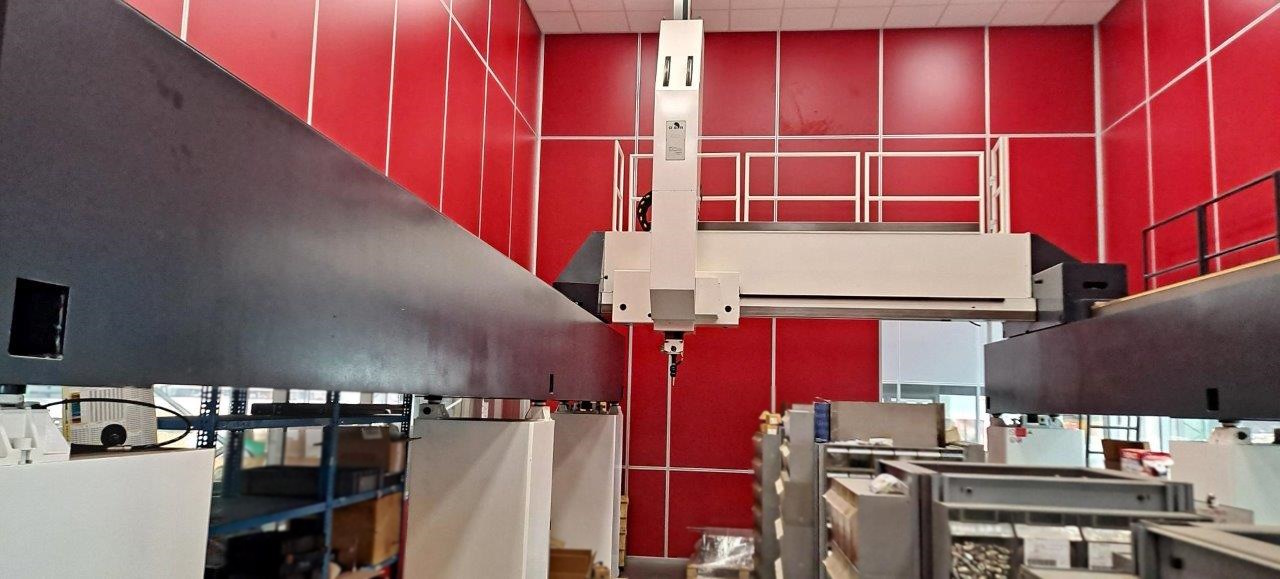

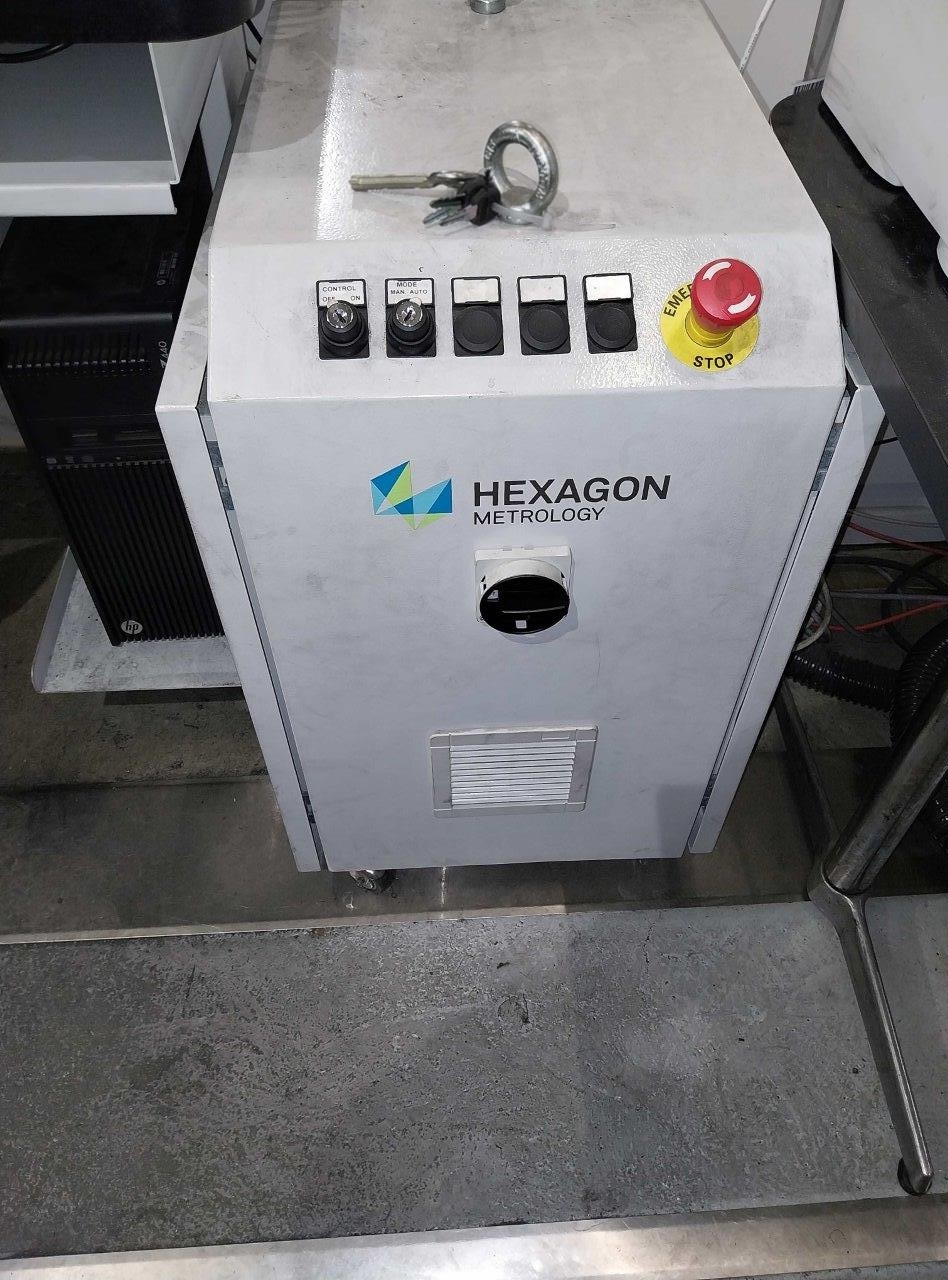

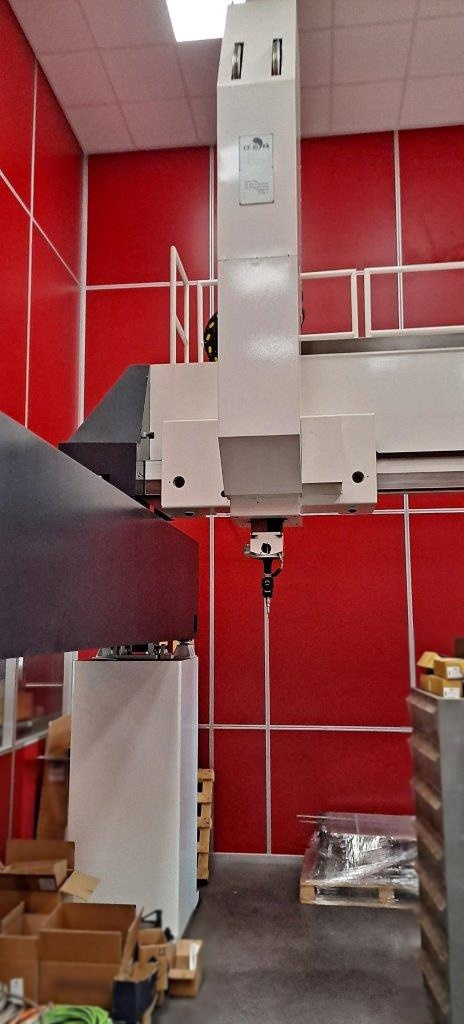

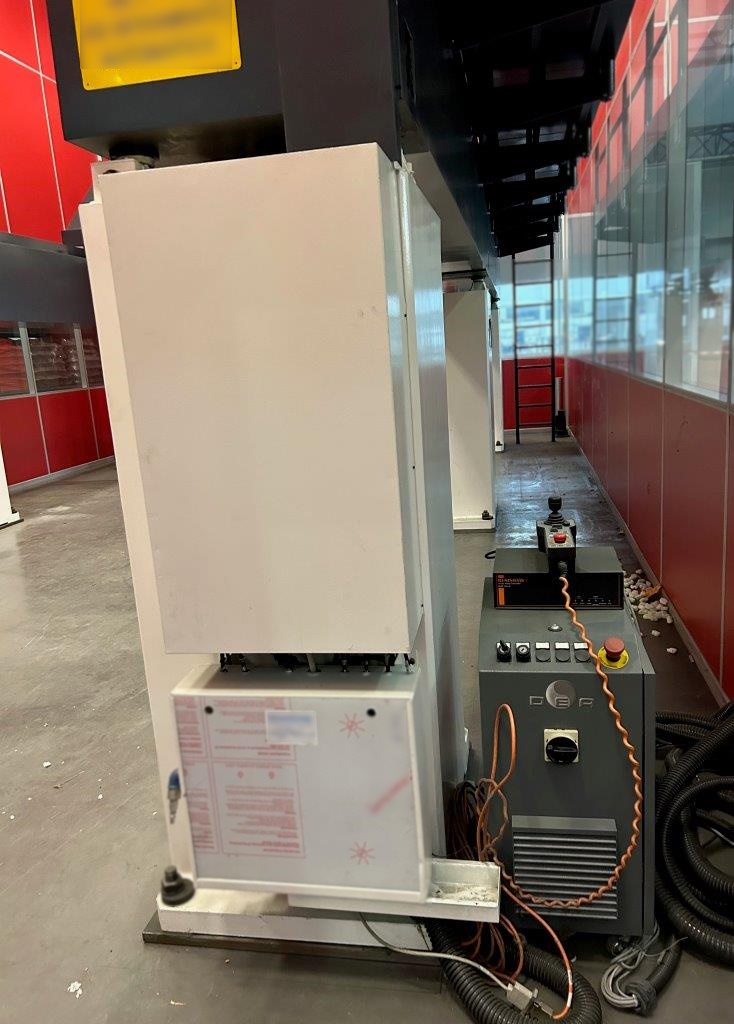

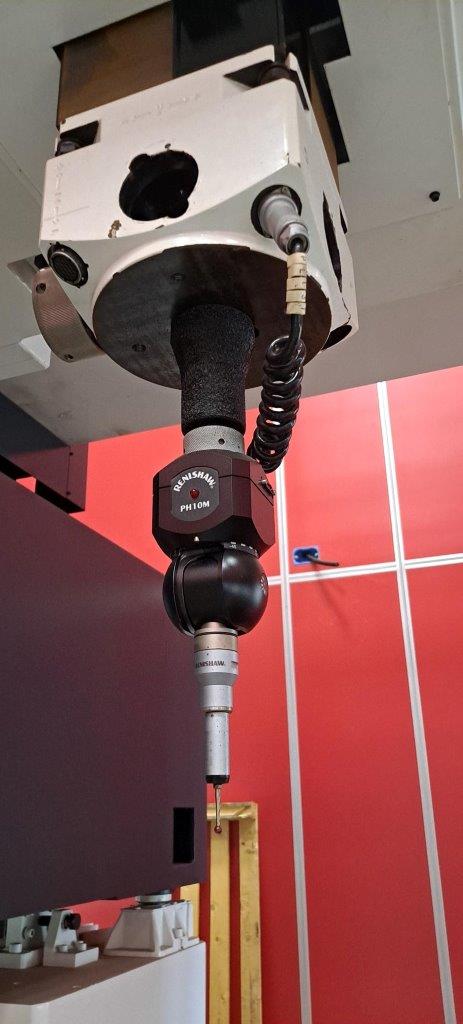

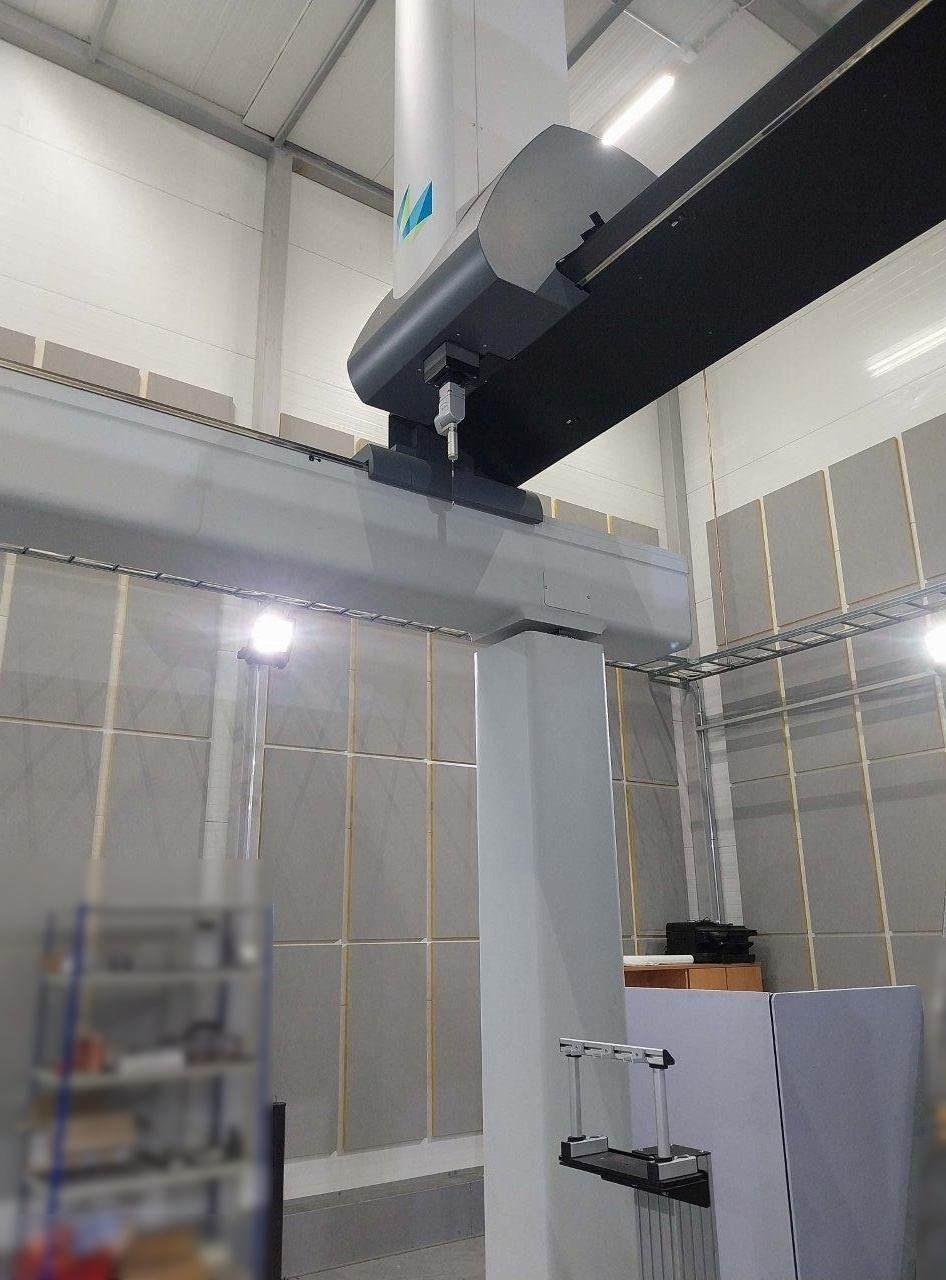

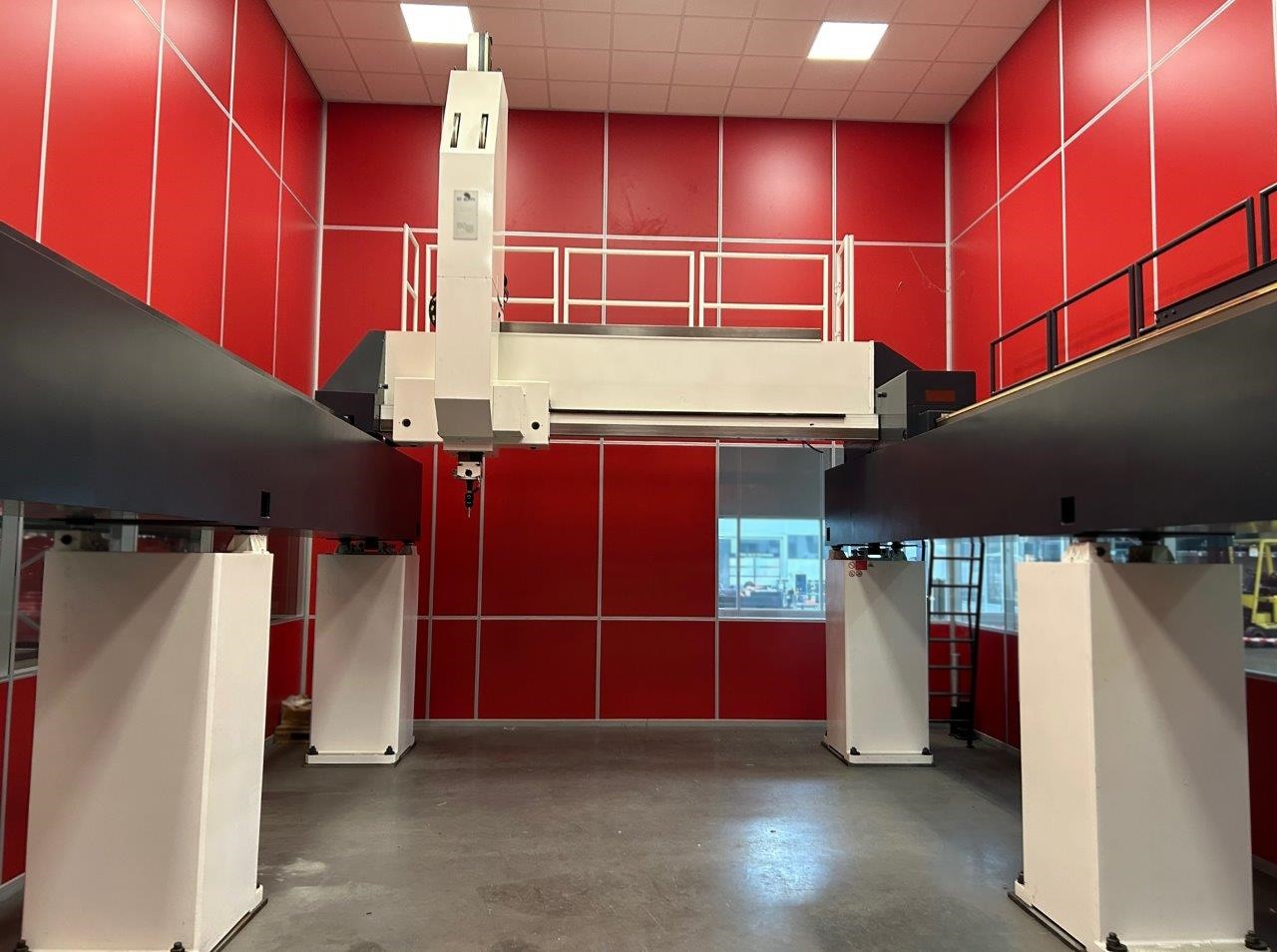

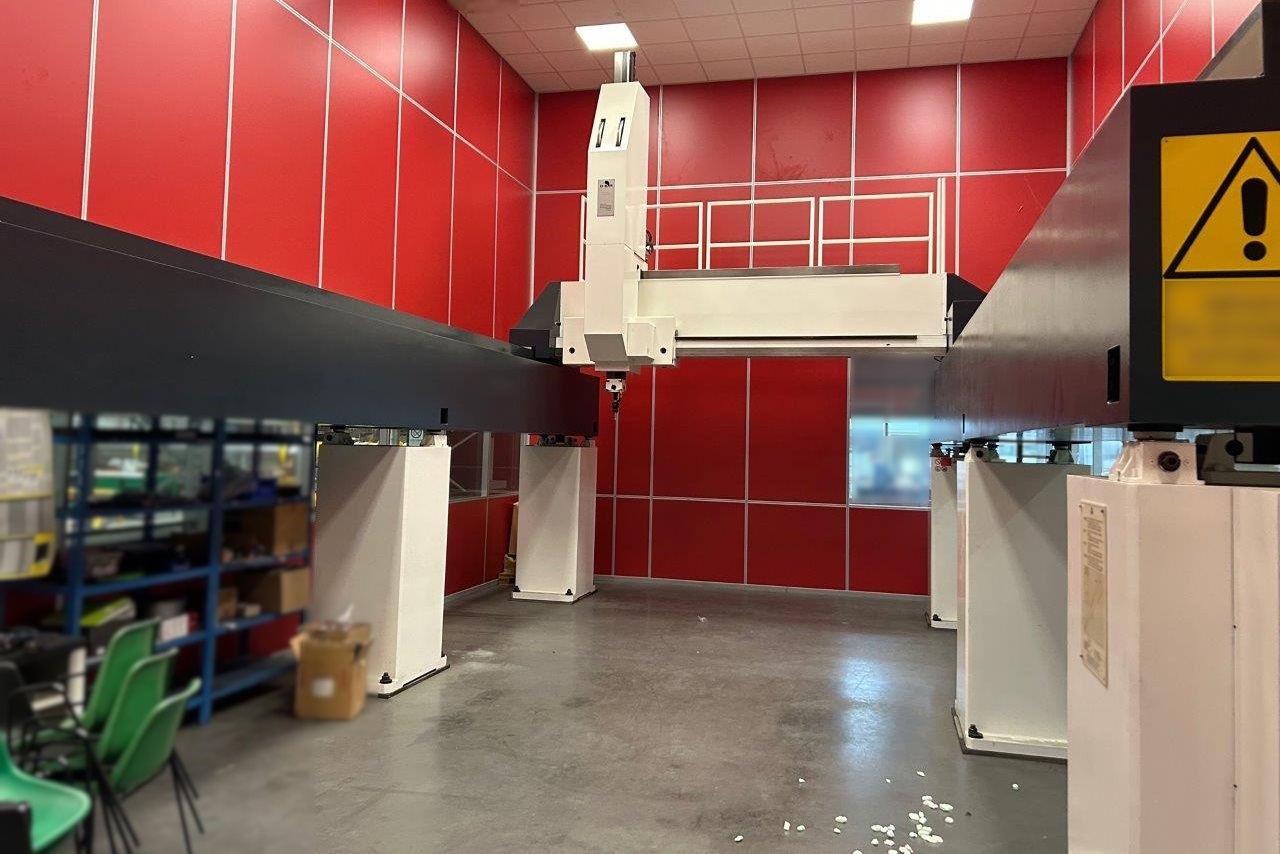

3D Coordinate Measuring Machine - The XL Class - Large and Precise

DEA
Delta 4509

Rebuilt by DEA in 2018

CNC controlled

Traverses - Measuring range:
X 6350 mm
Y 2540 mm
Z 1830 mm

Excellent condition

Proposal Number V-7030

Your benefits are:
High Precision
Detailed Dimensional Inspection
Complex Geometry Inspection
Multi-Axis Measurement
Automated Inspection
Streamlined manufacturing Process
Reduced Production Time
Reduced Waste

Interested? Contact us for a price quotation.
