Lathes CNC
CNC Cycle Controlled lathe with C-Axis and driven tooling
Emco Emcomat E300/3000
Year 2007
Fagor 8055T CNC Cycle Controller
Swing diameter over the bed 550 mm
Swing diameter over the saddle 340 mm
Turning length 3000 mm
Spindle bore 108 mm
Bar capacity 98 mm
Spindle motor 11.5 / 16.5 KW
Spindle speeds 0 - 2500 rpm
Chuck diameter 315 mm
Spindle with full C-Axis 0.001°
6-station vertical tool turret
Up to 6 driven tool positions
Tailstock quill diameter 100 mm
Thread cutting
Thread repair cycles
Very good condition
Proposal Number: L-4870
Click here to Contact Us for more details
5-axis / 7-axis CNC Twin Spindle Turning and Milling center

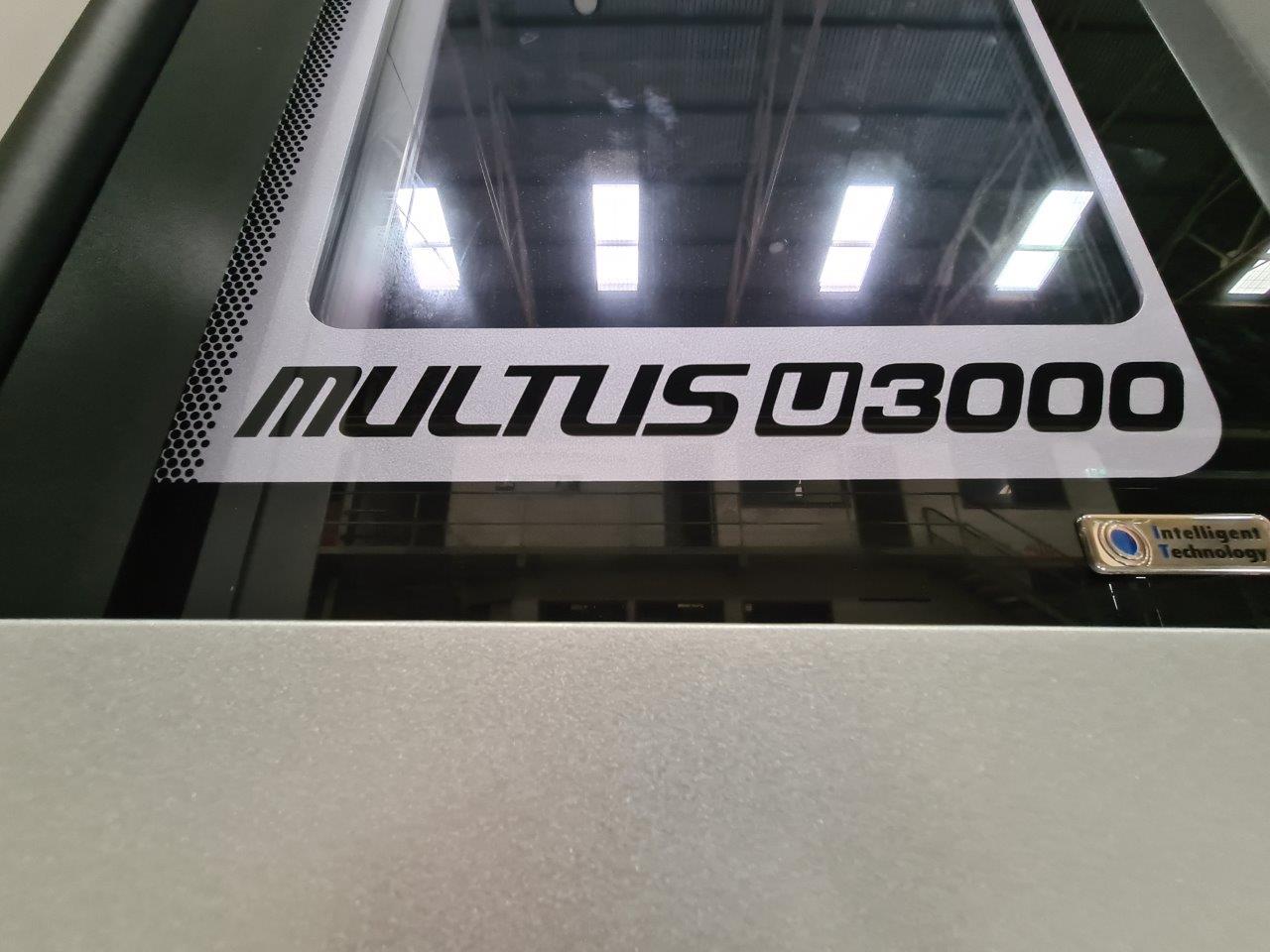

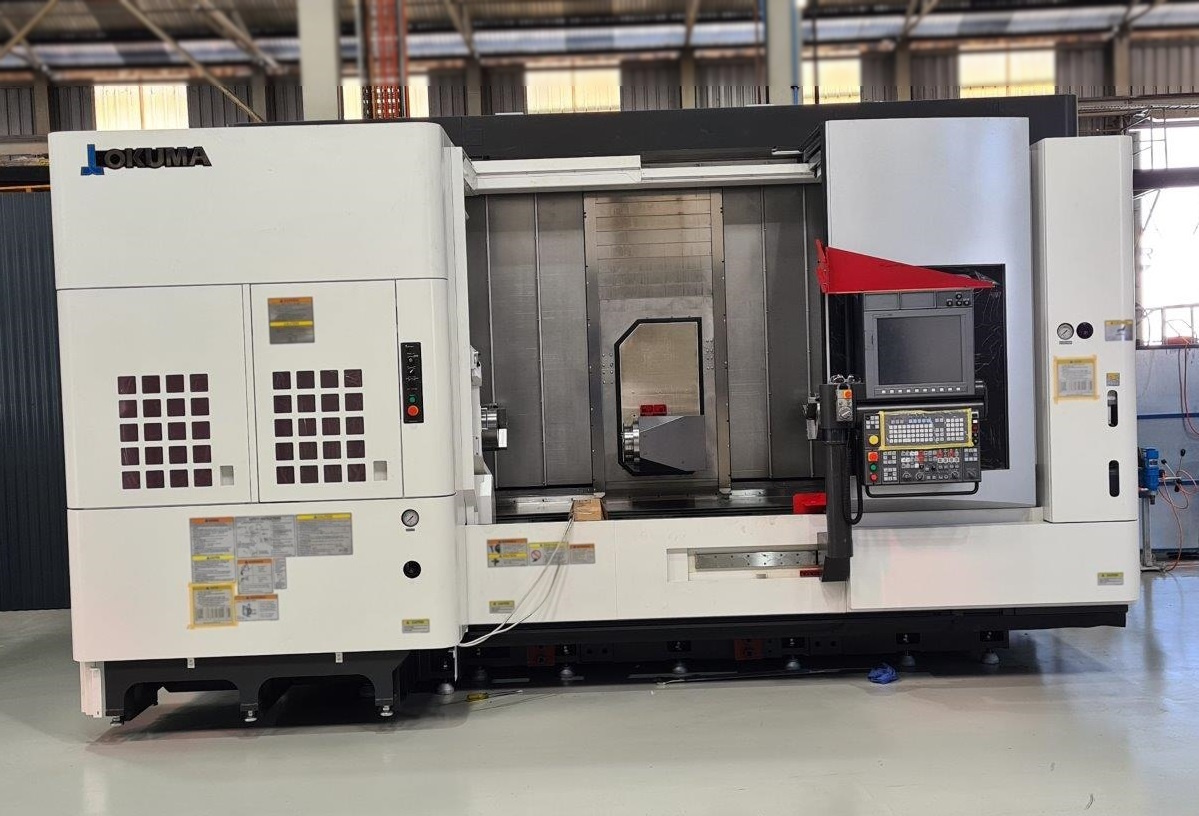

Okuma Multus U3000 1SW 1500
Year of manufacture 2021
CNC control OSP P300SA IGF-D
400 spindle hours
Swing diameter over slide 650 mm
Turning length 1500 mm
Main spindle:
Bar capacity 81 mm
Spindle drive motor 15/22 kW
Spindle speeds up to 4200 rpm
Chuck diameter 250 mm
C axis 0.0001°
Counter spindle:
Bar capacity 81 mm
Spindle drive motor 15/22 kW
Spindle speeds up to 4200 rpm
Chuck diameter 250 mm
C axis 0.0001°
Tool support:
Single tool carrier in the work area
Tool for turning (L) and milling (M)
CAPTO C6 tool holder
Tool drive motor (milling/M) 19/25 KW
Tool speeds (milling/M) 50 - 12000 rpm
Tool magazine and automatic tool changer
Tool positions - 80 times
Axis/travel paths:
X facing travel 645 mm
Z longitudinal travel 1600 mm
Y vertical travel (off-center) 250 mm
B Swivel range 240° (0.0001°)
C1 (spindle left) 360° / 0.0001°
C2 (spindle right) 360° / 0.0001°
W Counter spindle longitudinal travel 1594 mm
Complex complete processing at high speed for small to medium batch sizes:
The Okuma MULTUS combines the advantages of lathes and vertical centers.
For optimal stability and damping, all linear guides are equipped with cylindrical rollers.
The Thermo-Friendly concept ensures high dimensional stability - even when the ambient temperature changes.
This MULTUS U3000 is a multitasking machine with automatic tool changer and counter spindle.
This 10-inch feed class machine has a wide range of machining features and is the embodiment of power, speed and process flexibility.
With this machine you can do the work in one setup and with free tools in the ATC.
The MULTUS U3000 has a B-axis range of 240° with a 12,000 rpm H1 milling spindle with dual function (L/M).
The H1 dual function spindle head uses CAPTO C6 tools and has a high performance 25kW milling motor spindle.
The H1 turret features a 0.001 degree B-axis, provided by a moving column Y-axis feed, enabling powerful Y-axis machining over a 250mm range.
Both the left and right spindles are equipped with a fully contoured C-axis.

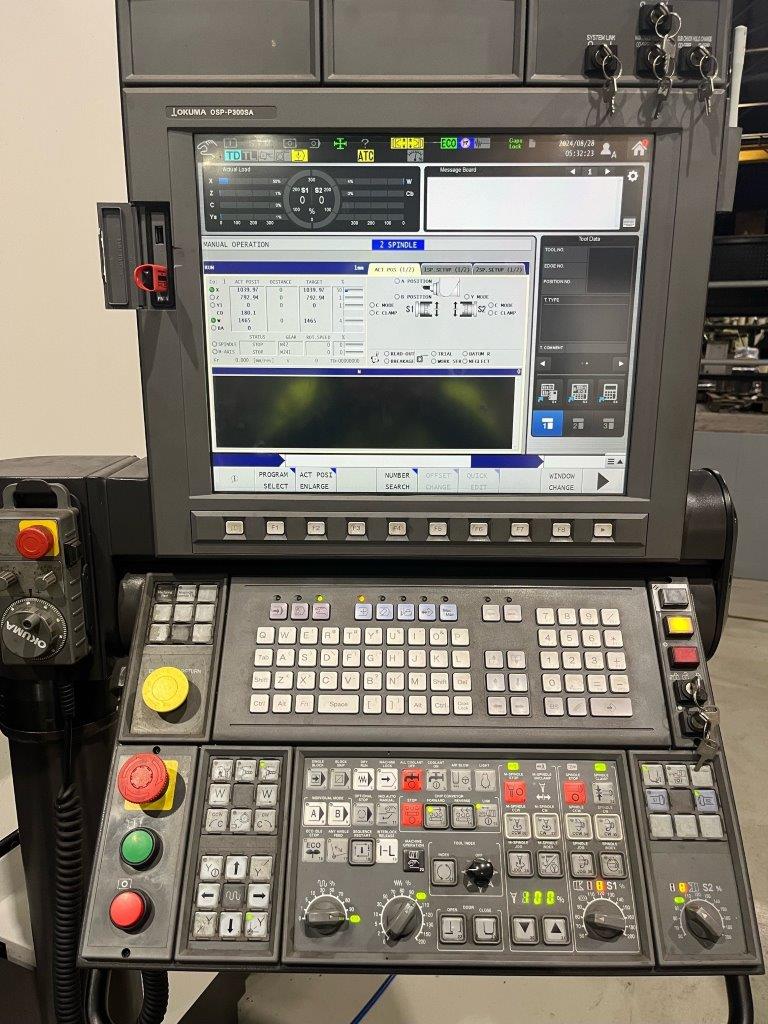

Thanks to the OSP-P300 control, familiar programming methods from the lathe and machining center disciplines can be easily combined, so that advanced functions such as the “Collision Avoidance System” are standard.
Proposal Number: L-4890
Click here to Contact Us for more details

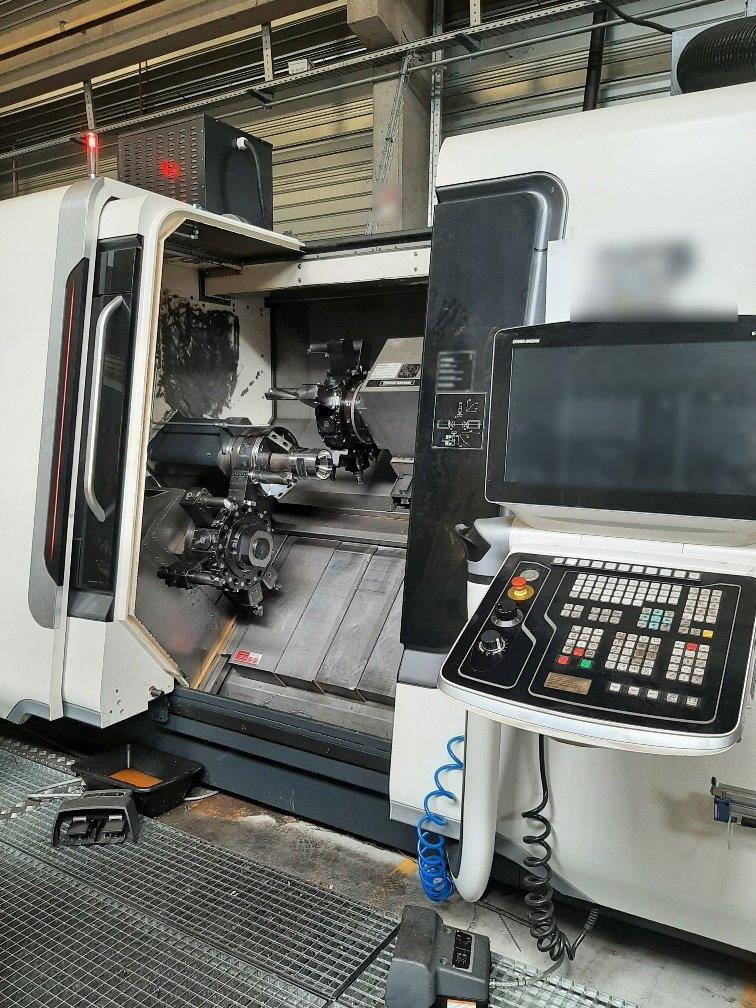

CNC Twin Spindle, Twin Turret Lathe with 2 x C-Axis, 2 x Y-Axes, Live tools + Robot loading

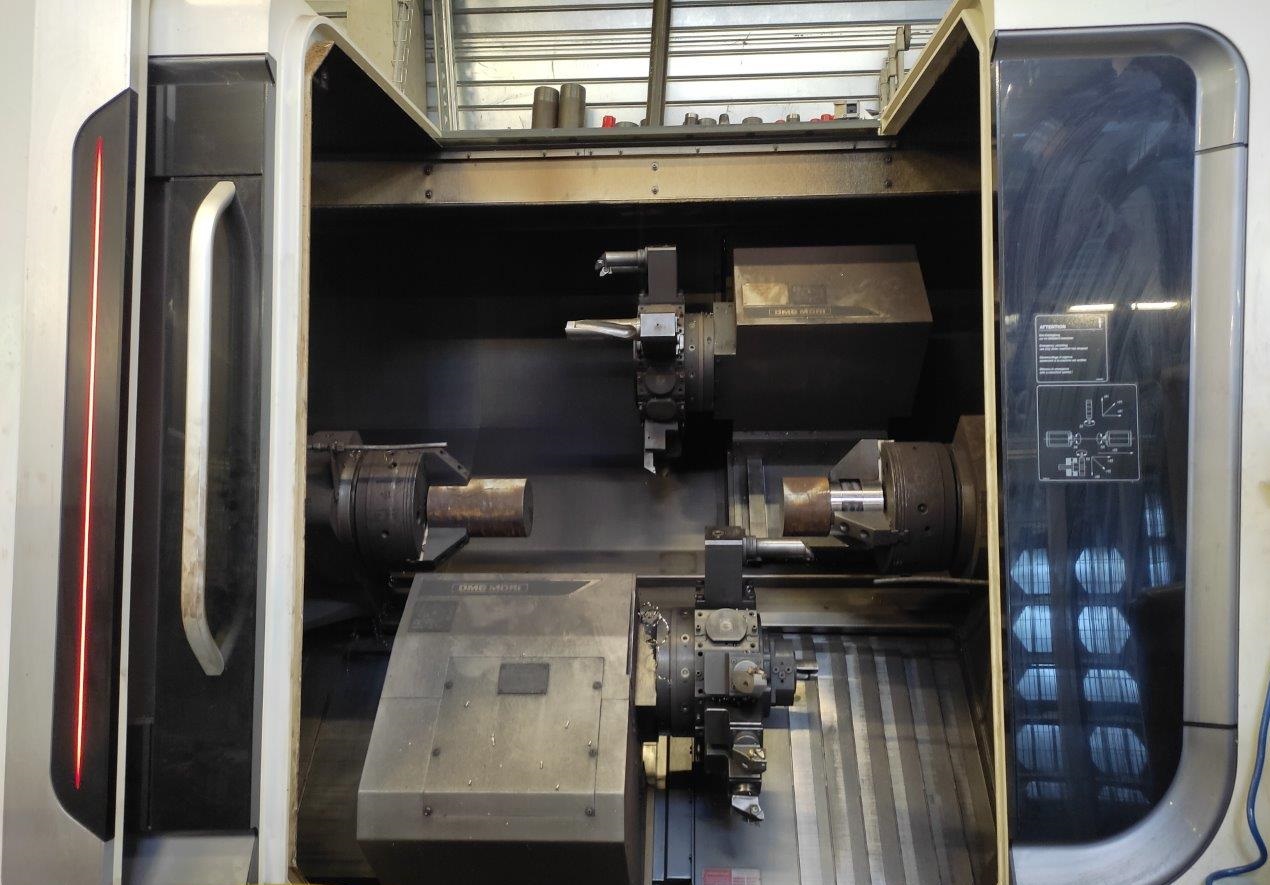

DMG Mori CTX Beta 1250 4A
New in 2020
Siemens 840D sl Celos Control
5-Axis / 9-Axis
2 x Spindles
2 x C-Axis
Swing diameter over bed 540 mm
Turning diameter max. 340 mm
Turning length 11000 mm
Top turret with Y-Axis + 50 / - 60 mm
Lower turret with Y-Axis +/-40 mm

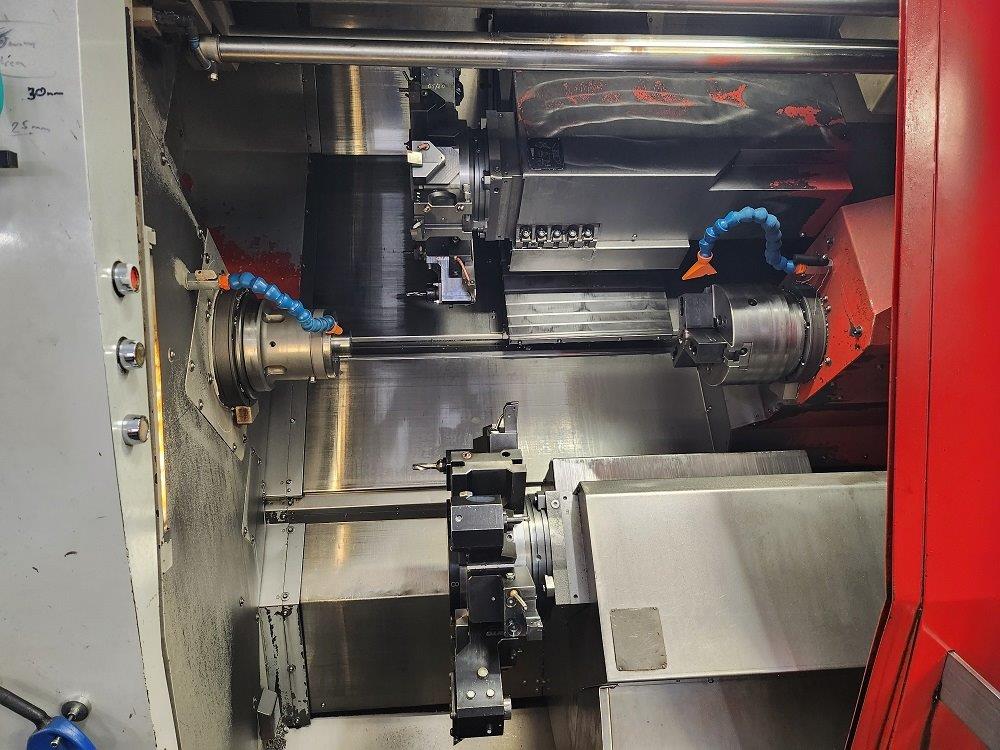

2 x indentical opposed spindles
Left spindle
Spindle motor rating 40/48 KW AC
Spindle speeds max. 4000 rpm
Chuck diameter 315 mm
C-Axis 0.001°
Right spindle
Spindle motor rating 40/48 KW AC
Spindle speeds max. 4000 rpm
Chuck diameter 315 mm
C-Axis 0.001°

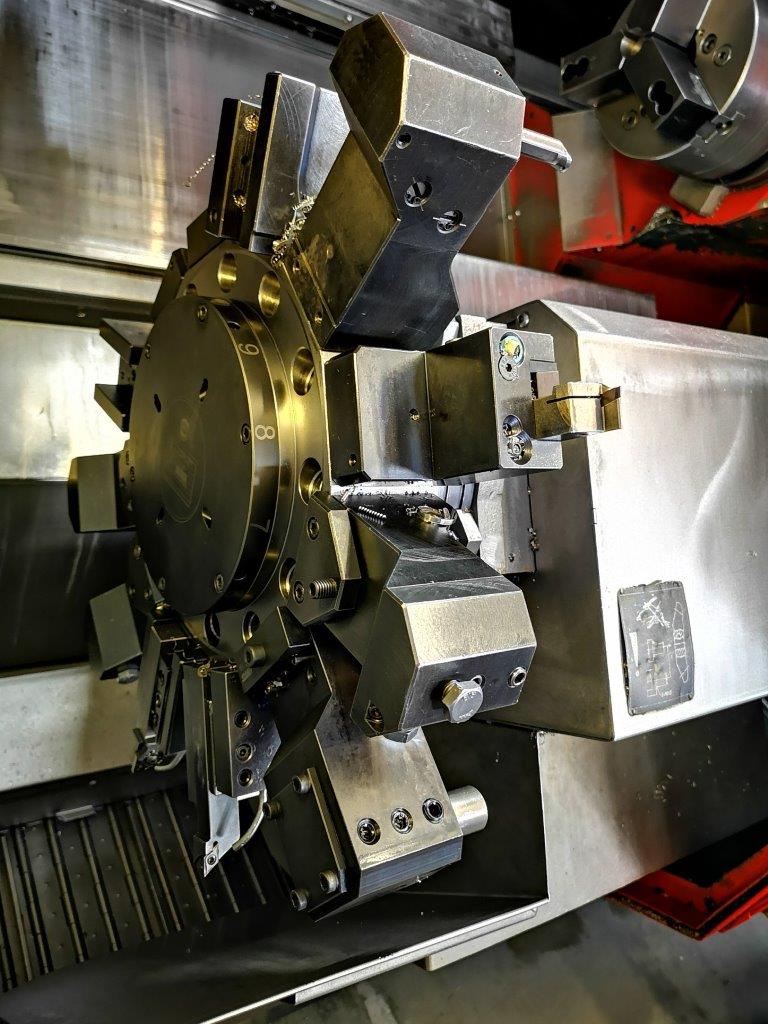

2 x 12 Station Tool turrets
Tool taper VDI 40
Live tool positions max. 2 x 12
Tool drive motor rating 14.2 KW
Live tool speeds max. 10000 rpm

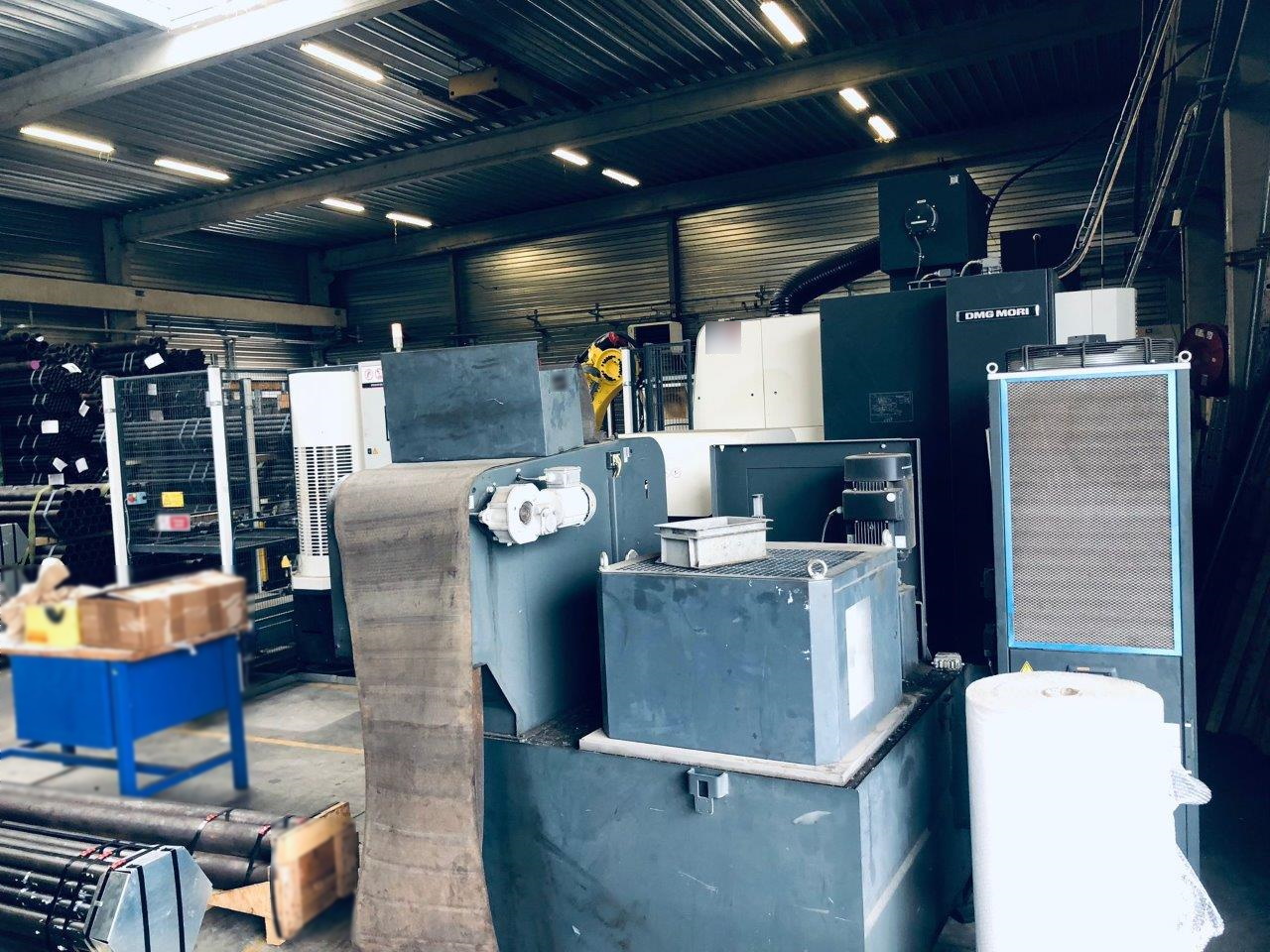

Equipped with:

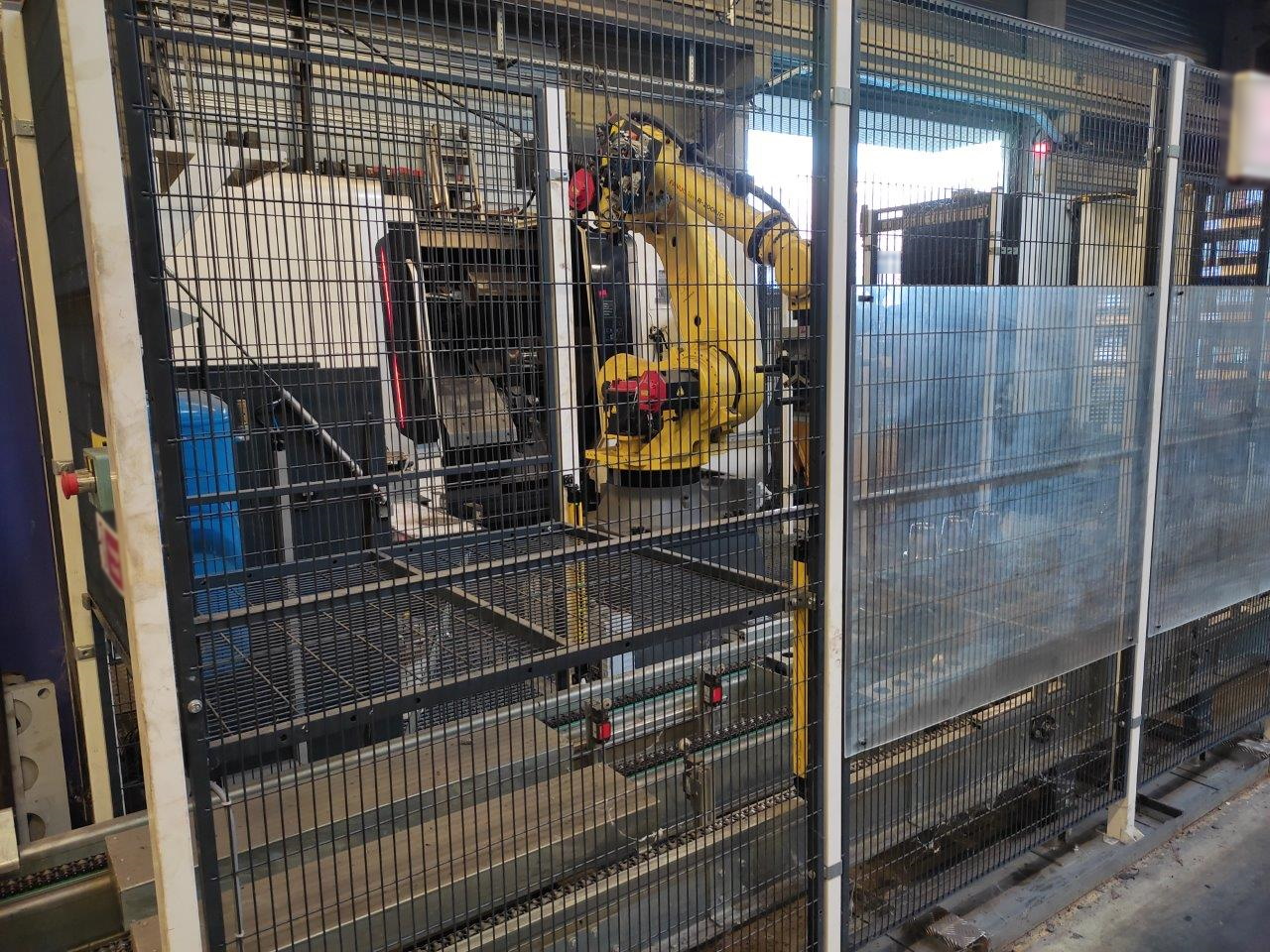

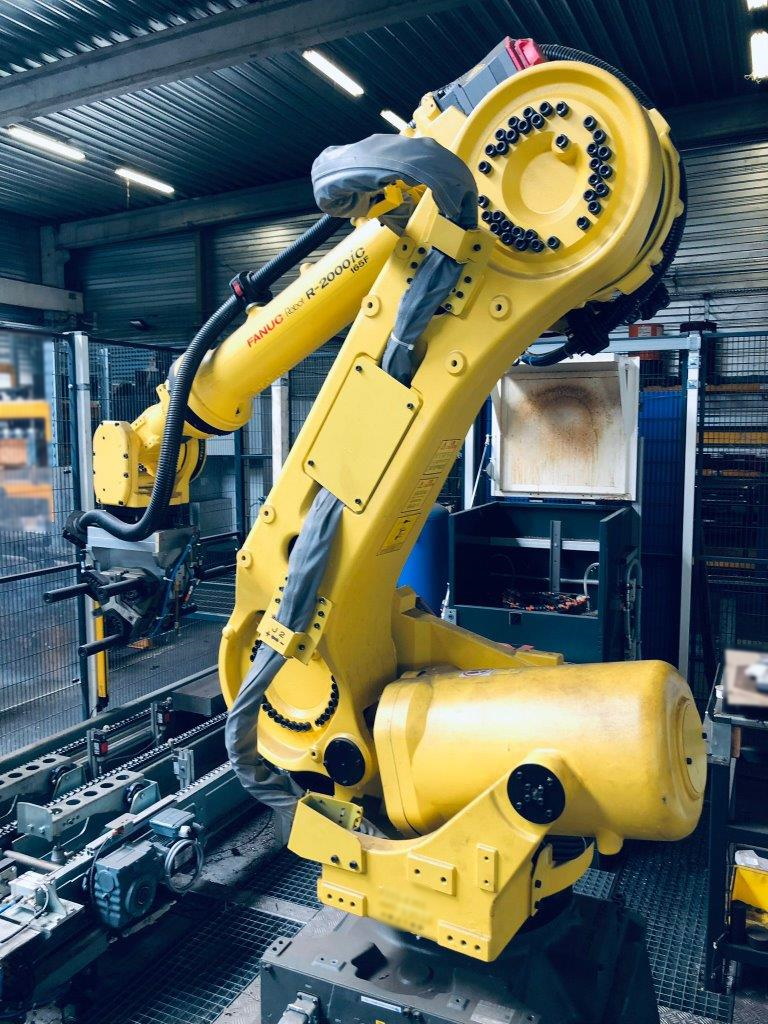

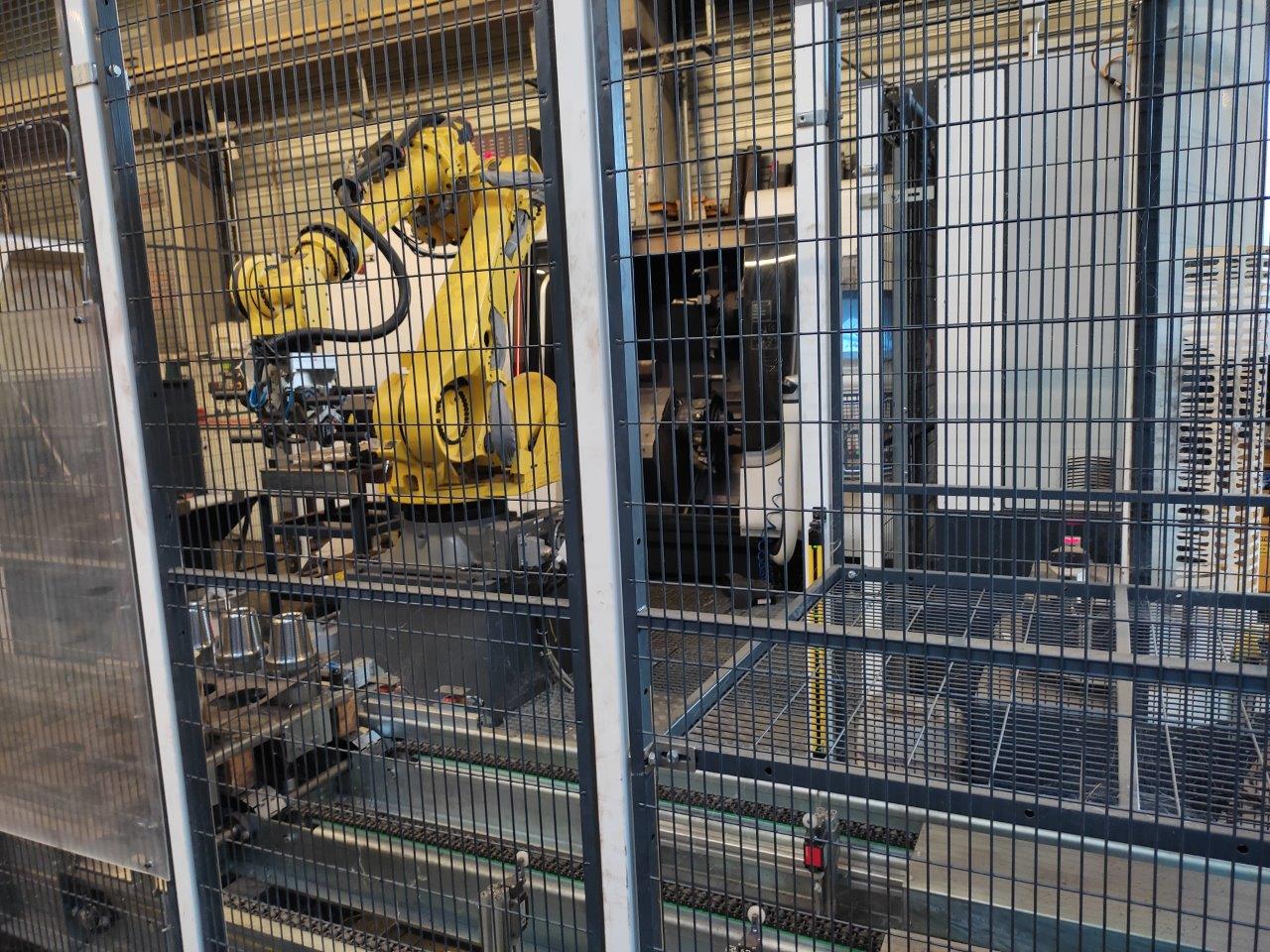

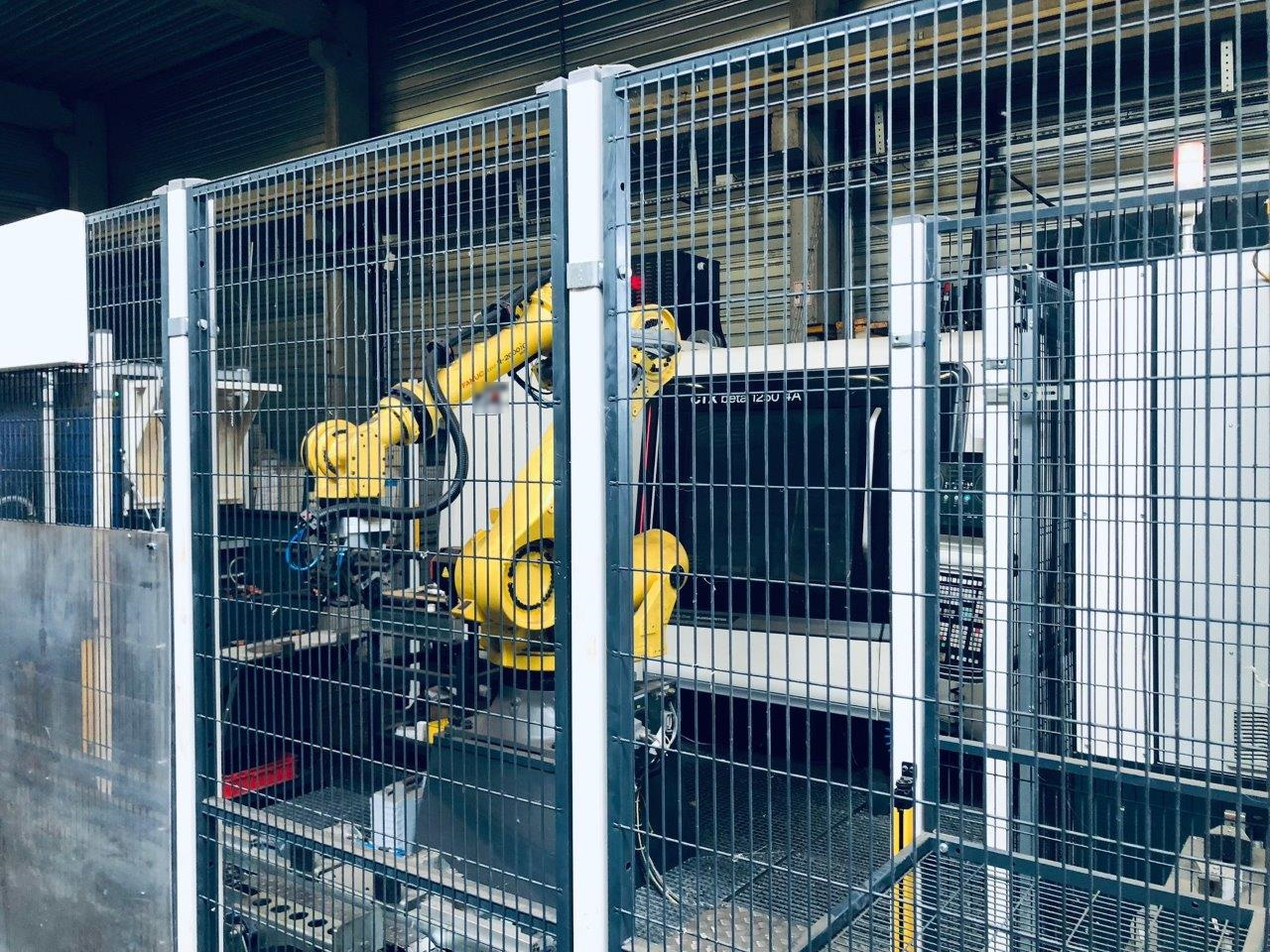

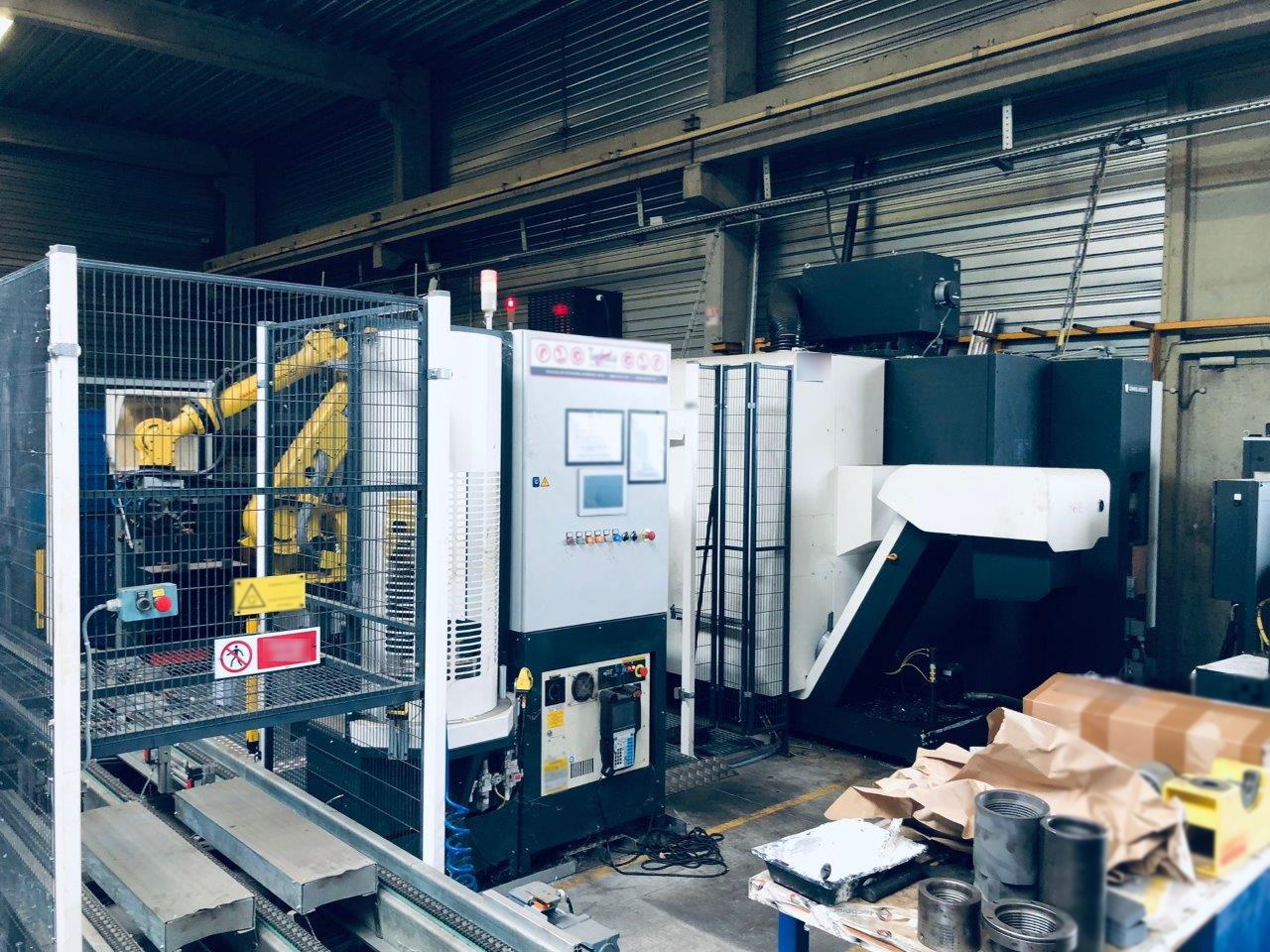

6-Axis Fanuc Robot for parts loading/offloading

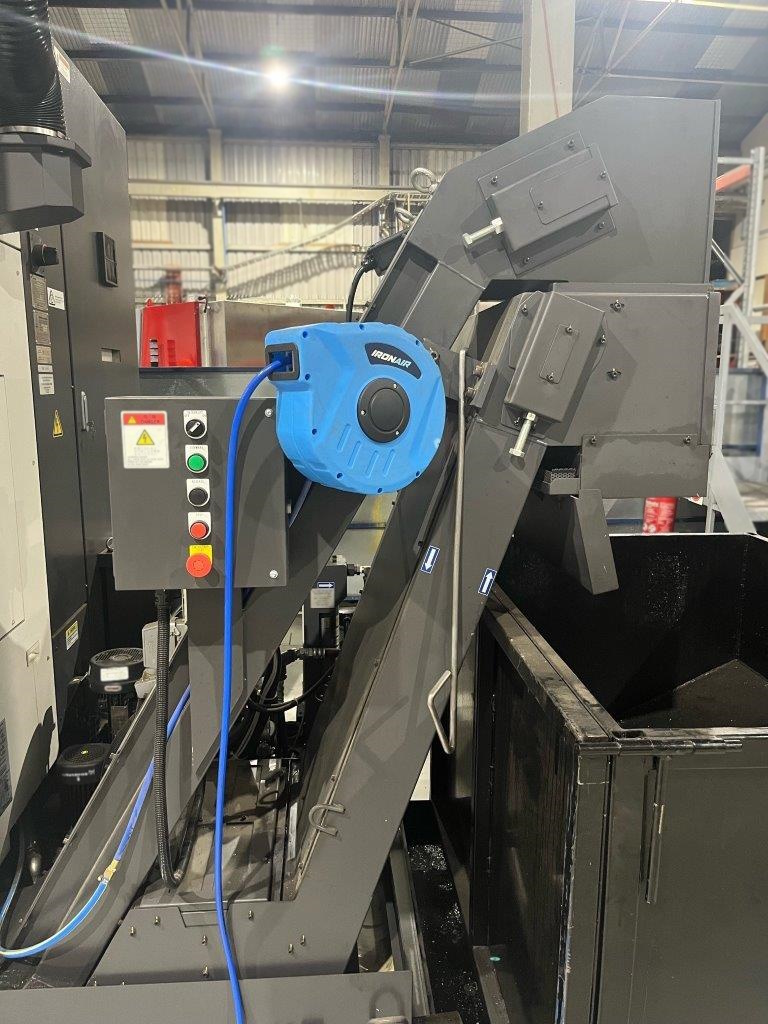

Chip conveyor
Prepared for steady rest in turret
Counter spindle with tailstock function
Coolant tank 980 l, high pressure pumps 8 bar and 20 bar
Coolant through disc turrets to all tool stations
Coolant Band filtration unit
Power ON hours 4185
Spindle ON hours 2620
Proposal Number: L-4839
Click here to Contact Us for more details

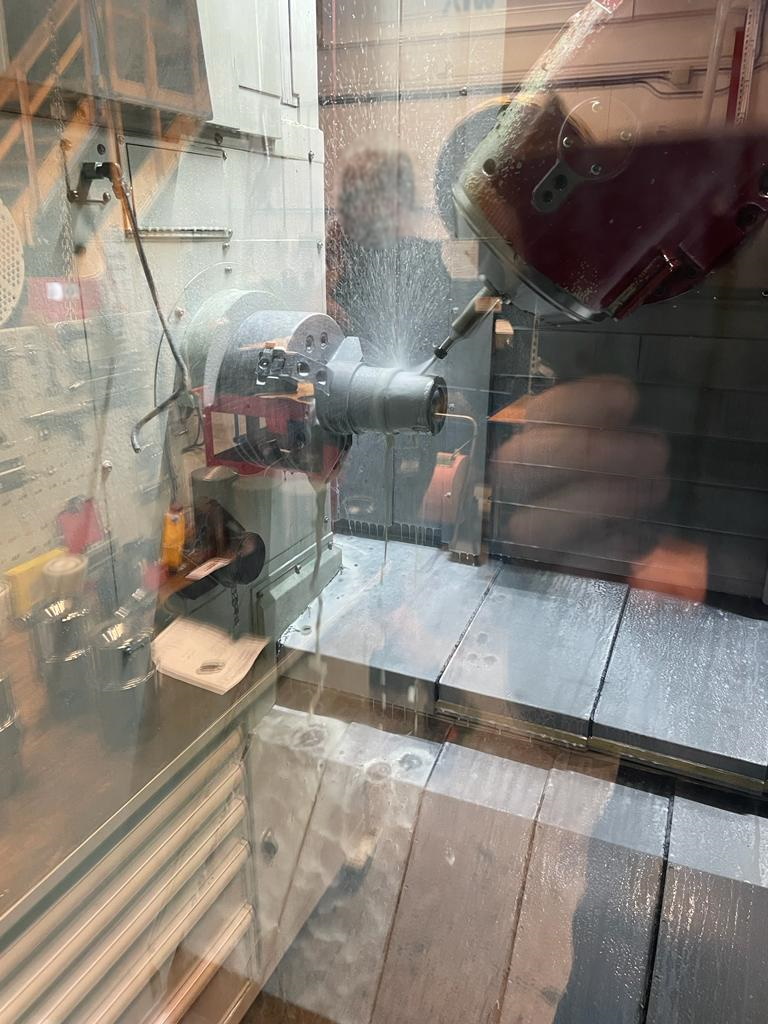

Twin Spindle Lathe - 5-Axis / 9-Axis

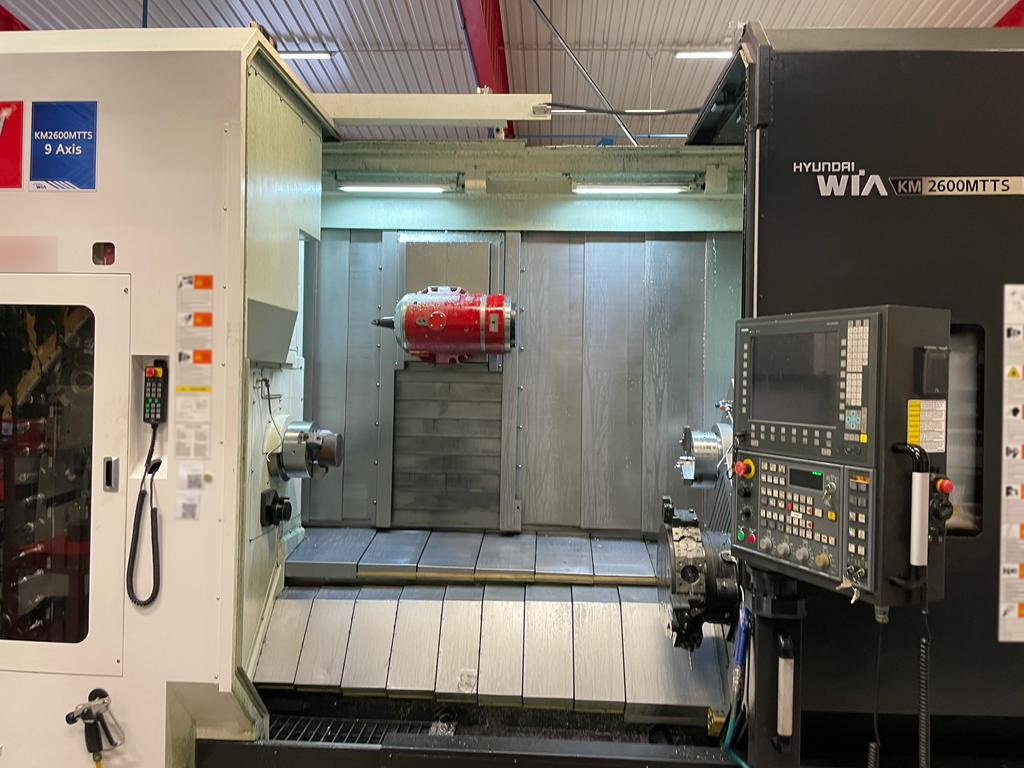

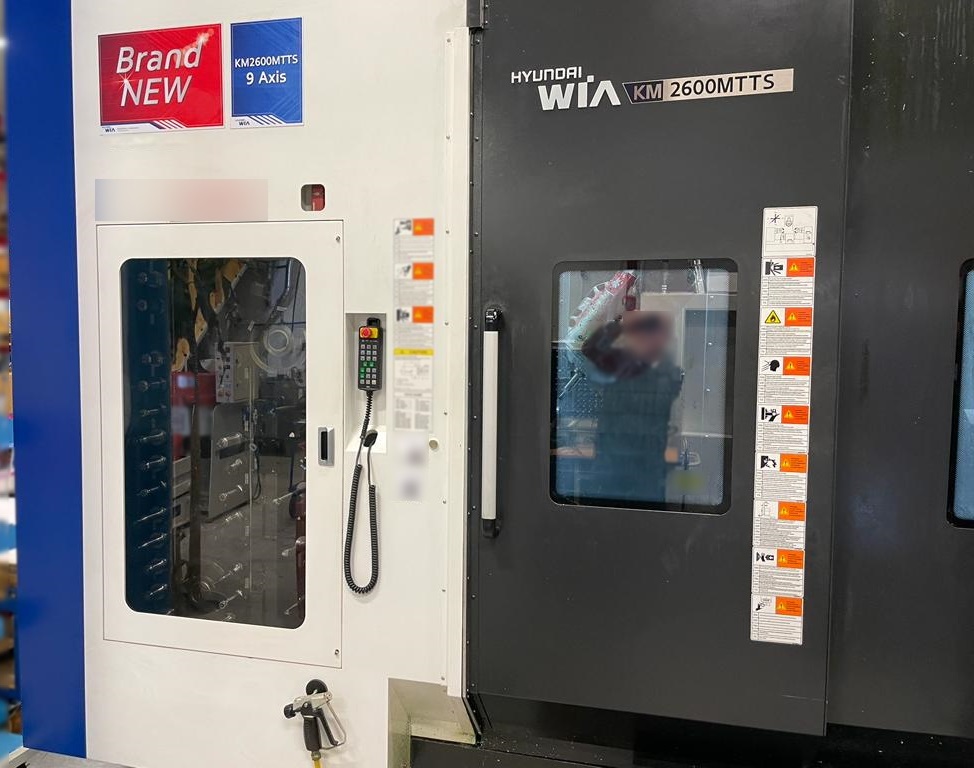

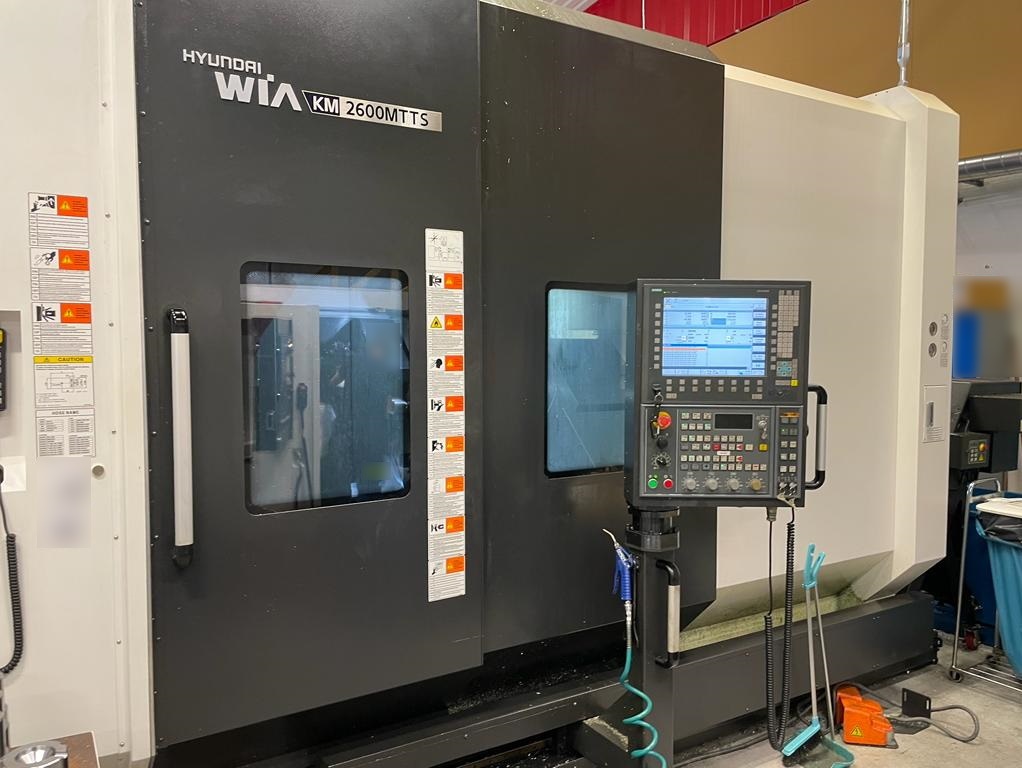

Hyundai Wia KM 2600 MTTS
New in 2017

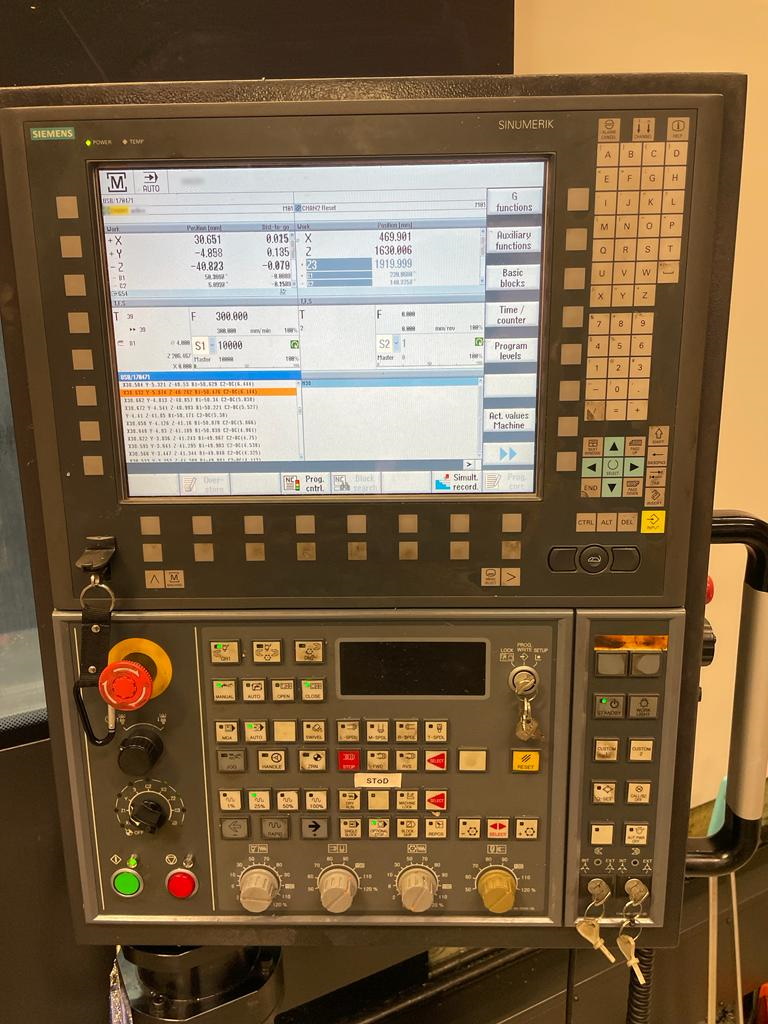

Siemens 840D Control
5-Axis / 9-Axis
2 x Spindles
2 x C-Axis
Swing diameter 750 mm
Turning length 1550 mm

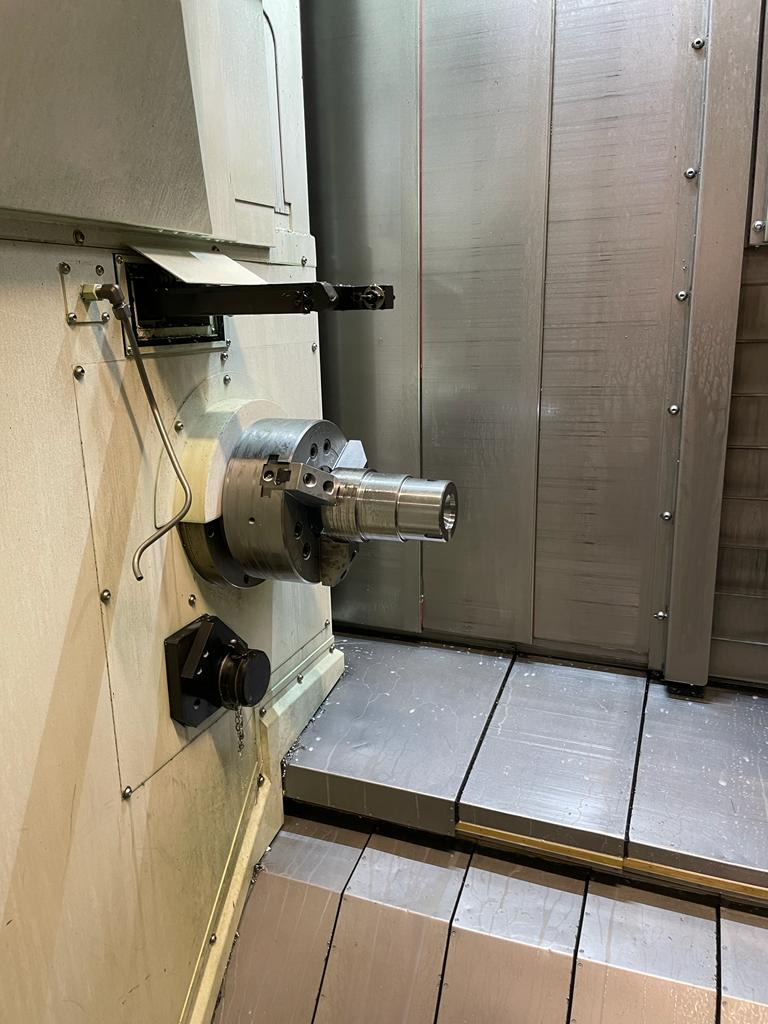

Chuck diameter left 250 mm
Turning length 1550 mm

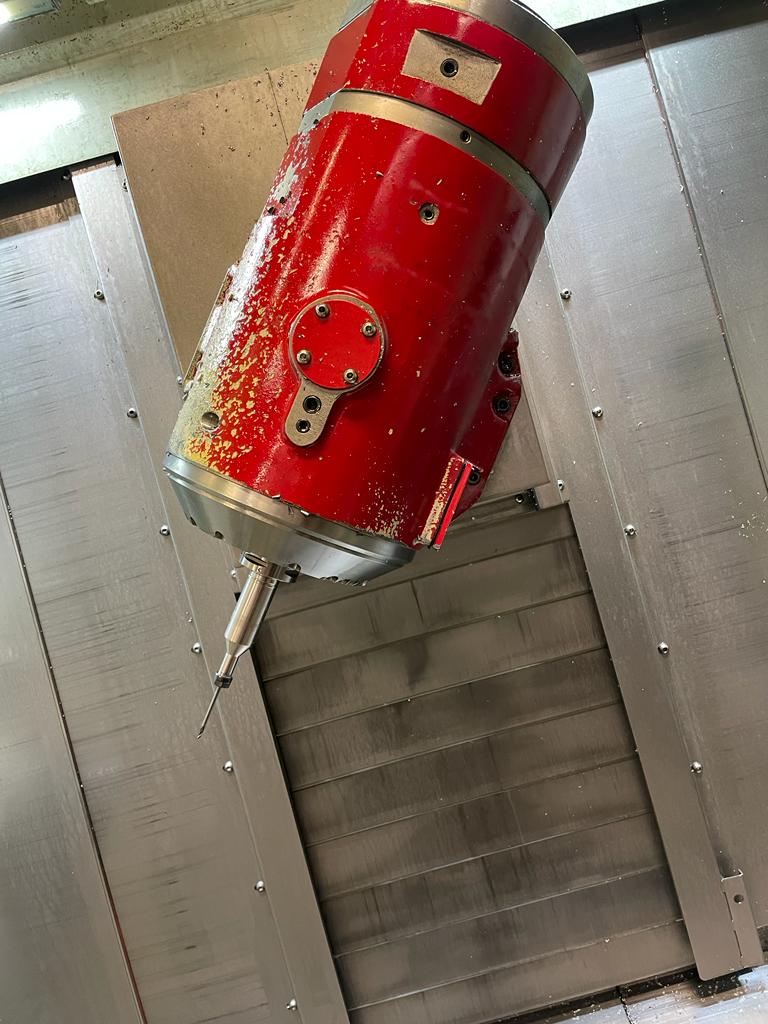

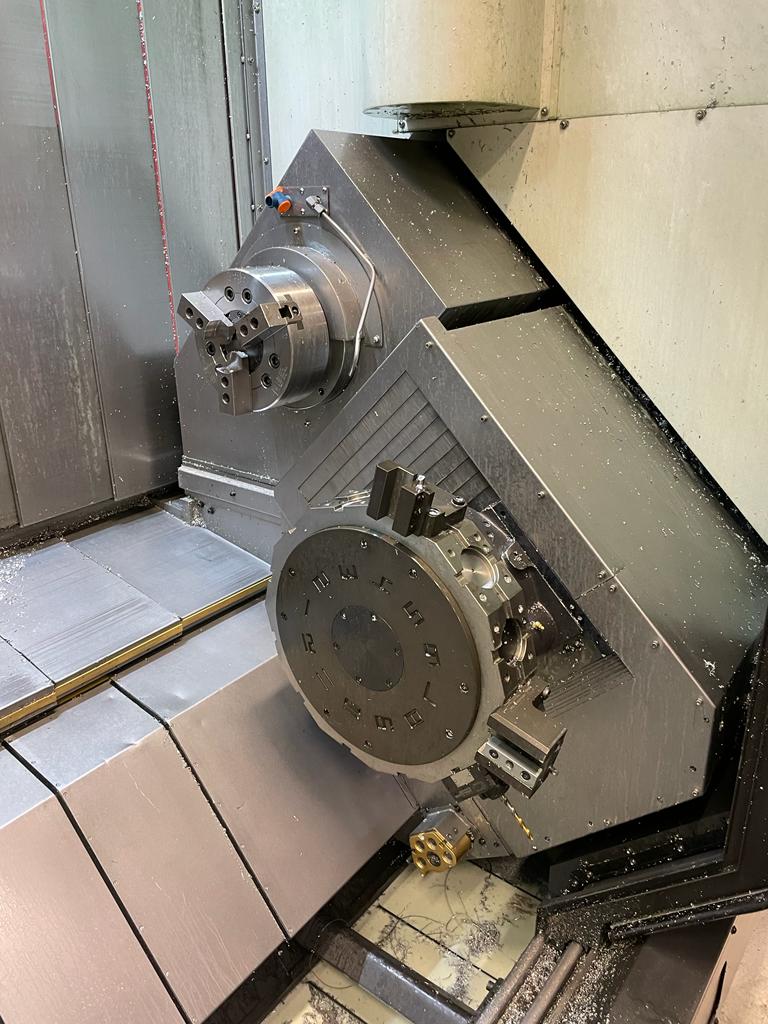

Upper tool support for 5-axis machining with Y-axis 250 mm and B-axis -30°/+210°

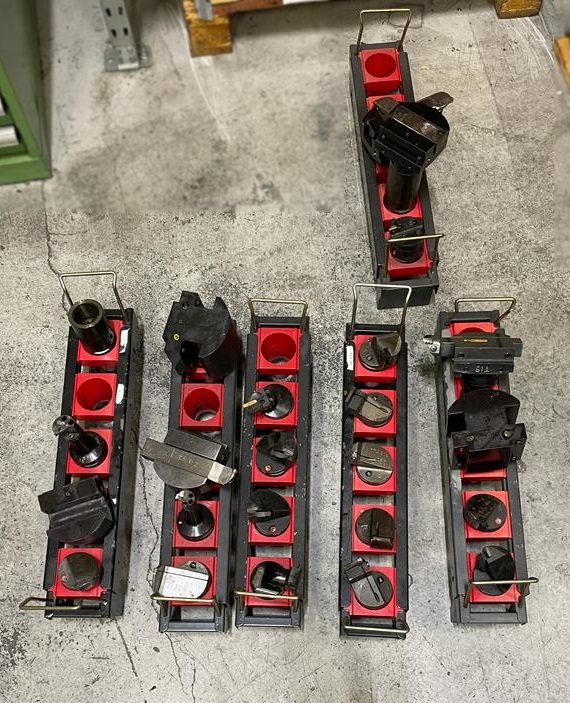

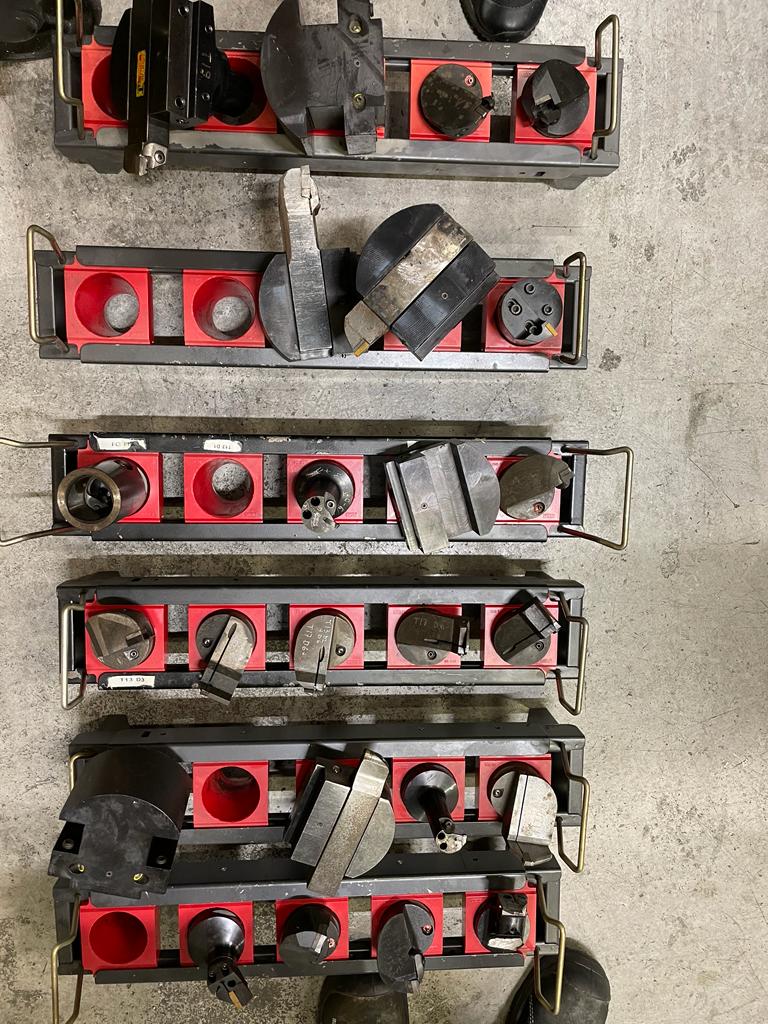

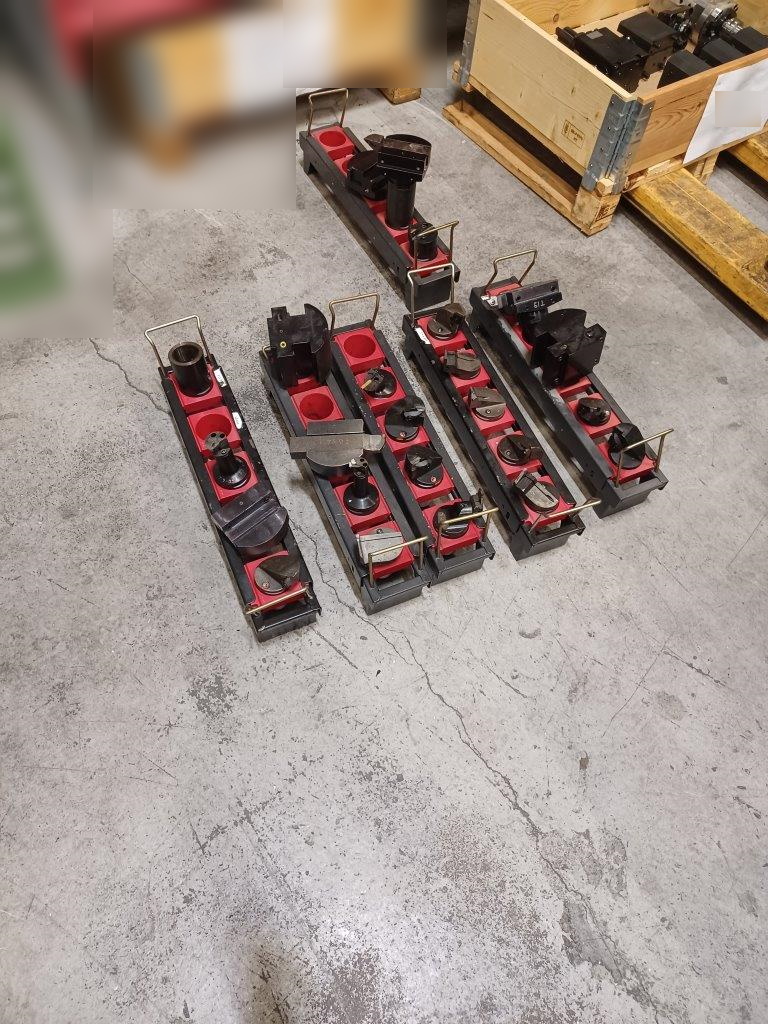

Complete with 72 station tool changer
Milling spindle speeds 12.000 rpm

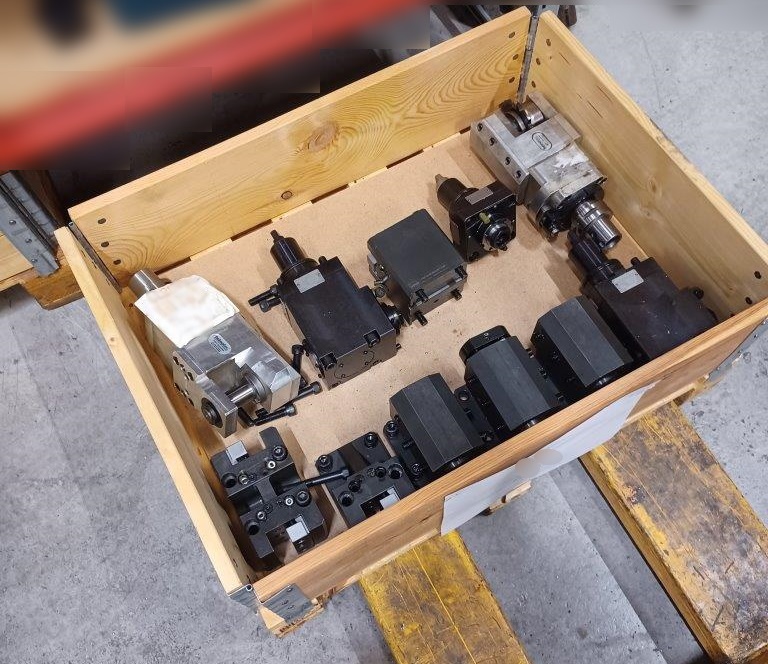

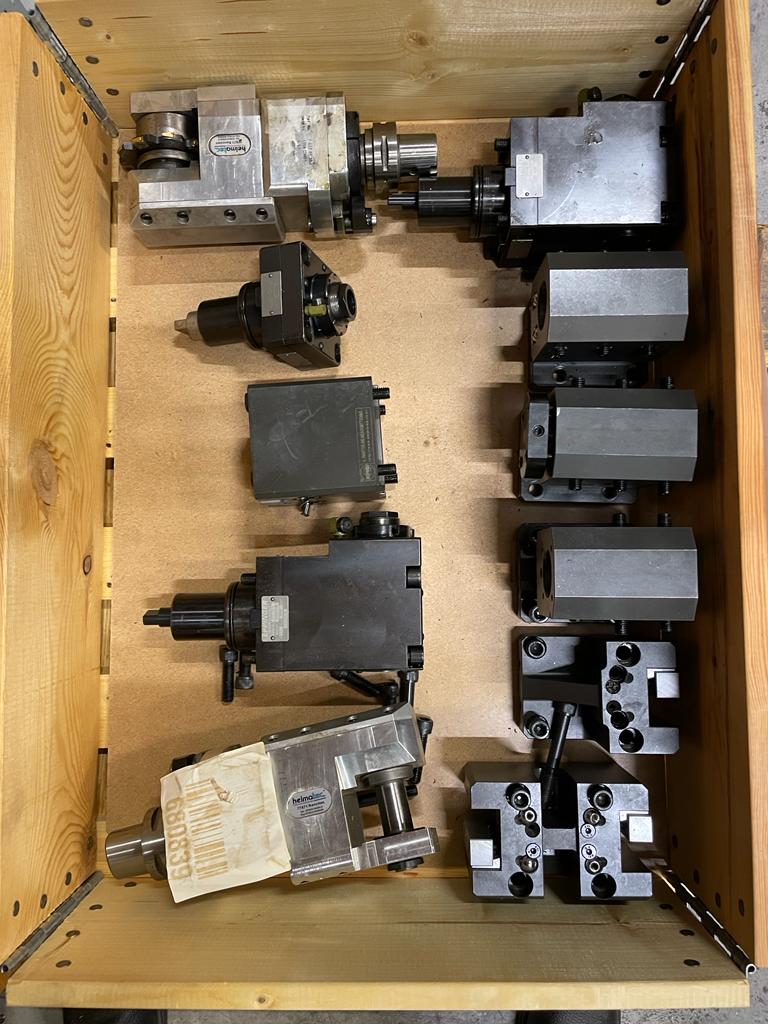

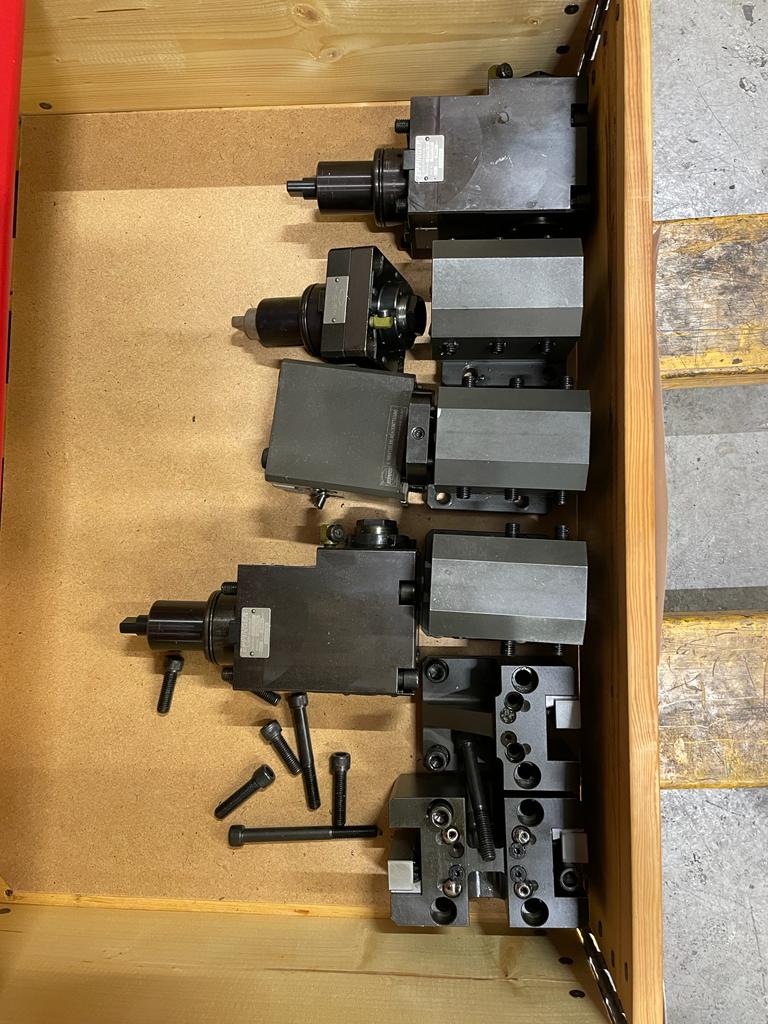

Lower tool support 12 station disc turret - all positions can be driven
5000 operating hours ONLY ! SUPER CONDITION - TOP OPPORTUNITY
Proposal Number: L-4842
Click here to Contact Us for more details

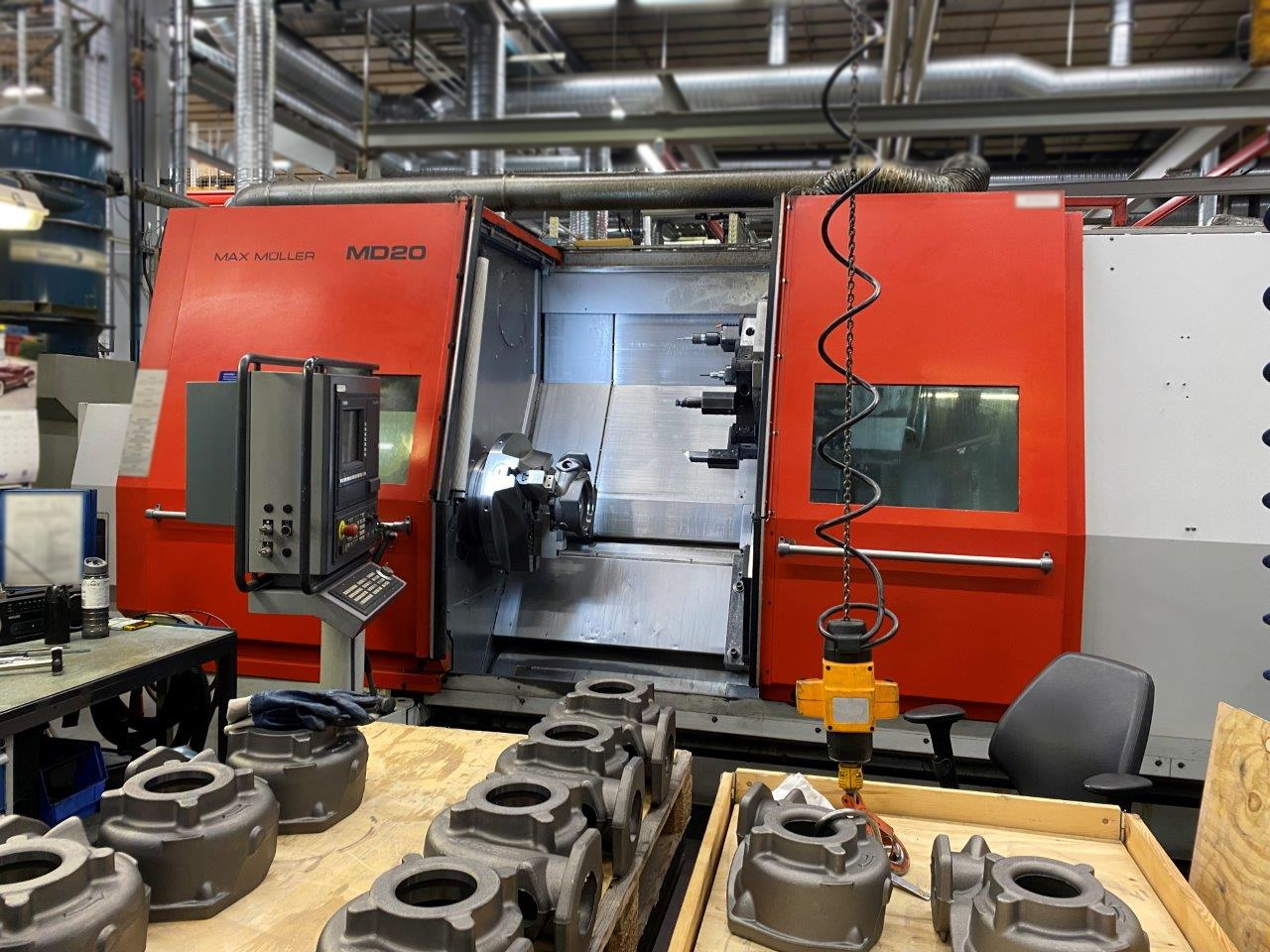

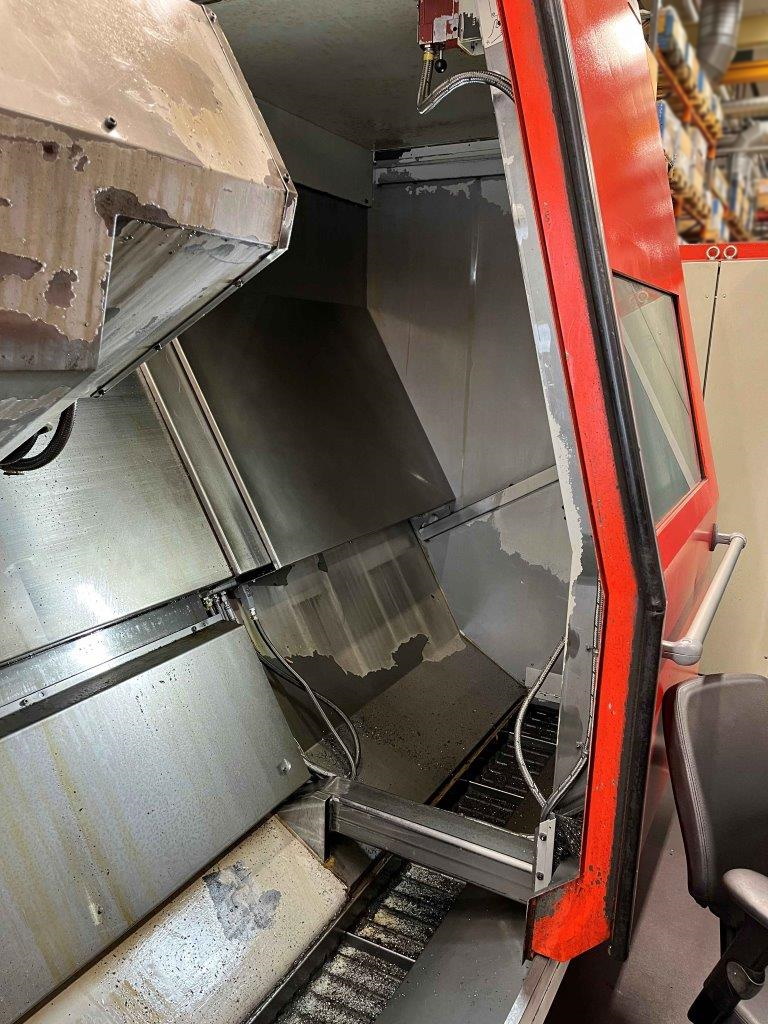

4-Axis CNC CHUCKER Lathe - C-Axis + Live tools + Y-Axis

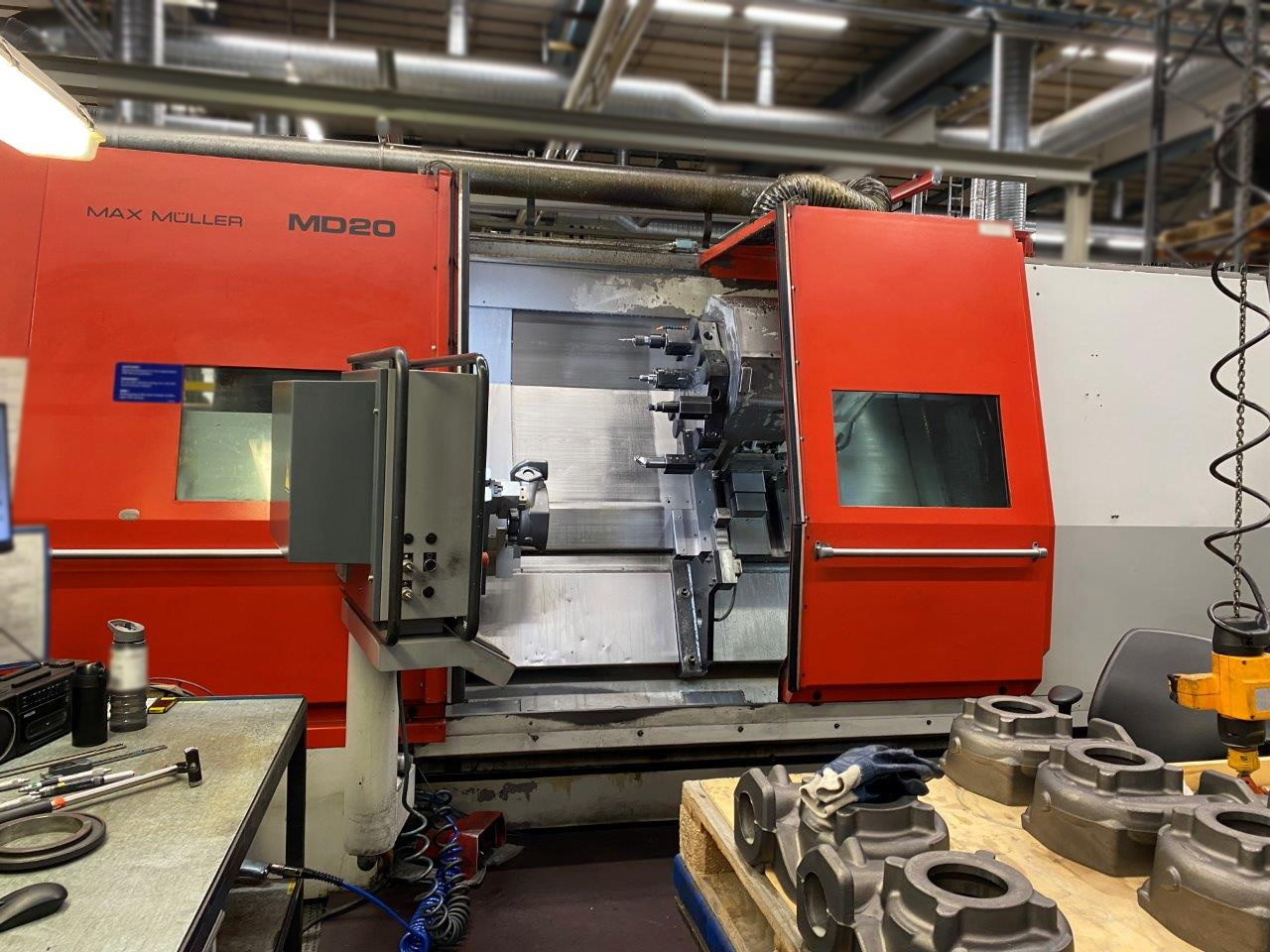

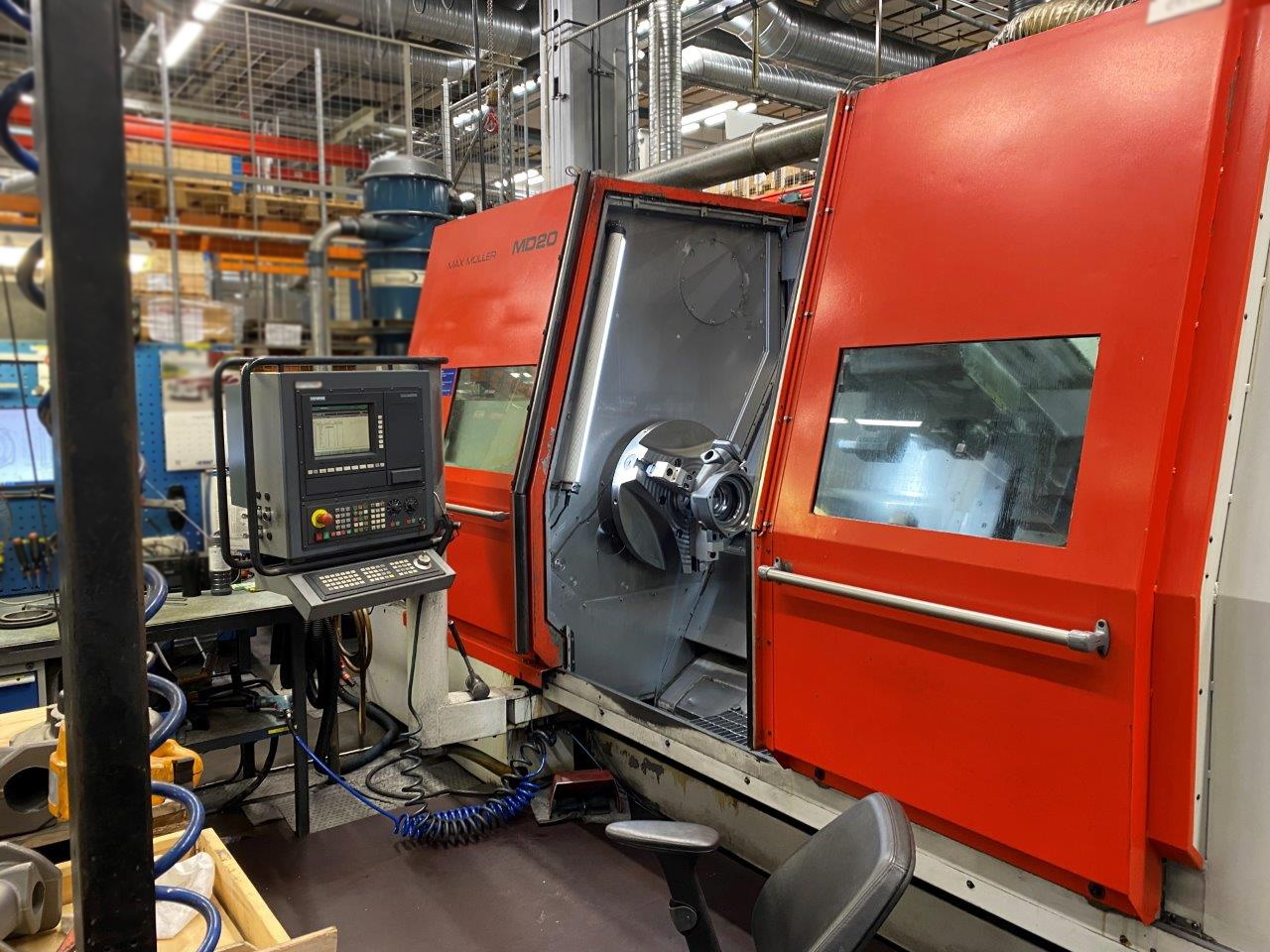

Max Müller MD20
New in 1997

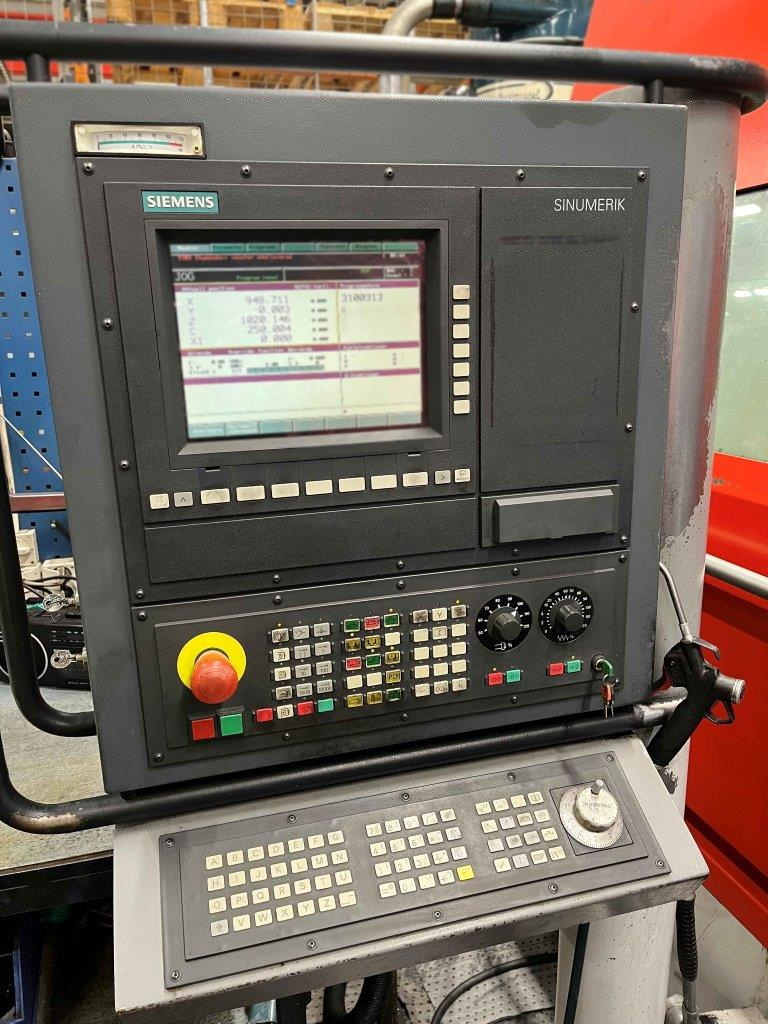

Siemens 840C control
Swing diameter over the bed: 850 mm
Swing diameter over the cross slides: 690 mm
Turning length: max. 1500 mm
Travels:
X 510 mm
Y 130 / +/- 65 mm
Z 1500 mm
Feeds: X/Y/Z n/a mm/min.
Rapids: X/Y/Z n/a mm/min.
Spindle nose: A15
Spindle drive motor rating: 65 KW
Spindle speed range: 7 - 1800 rpm
Spindle torque: max. n/a Nm
C-Axis on main spindle: C-Axis 0.001°

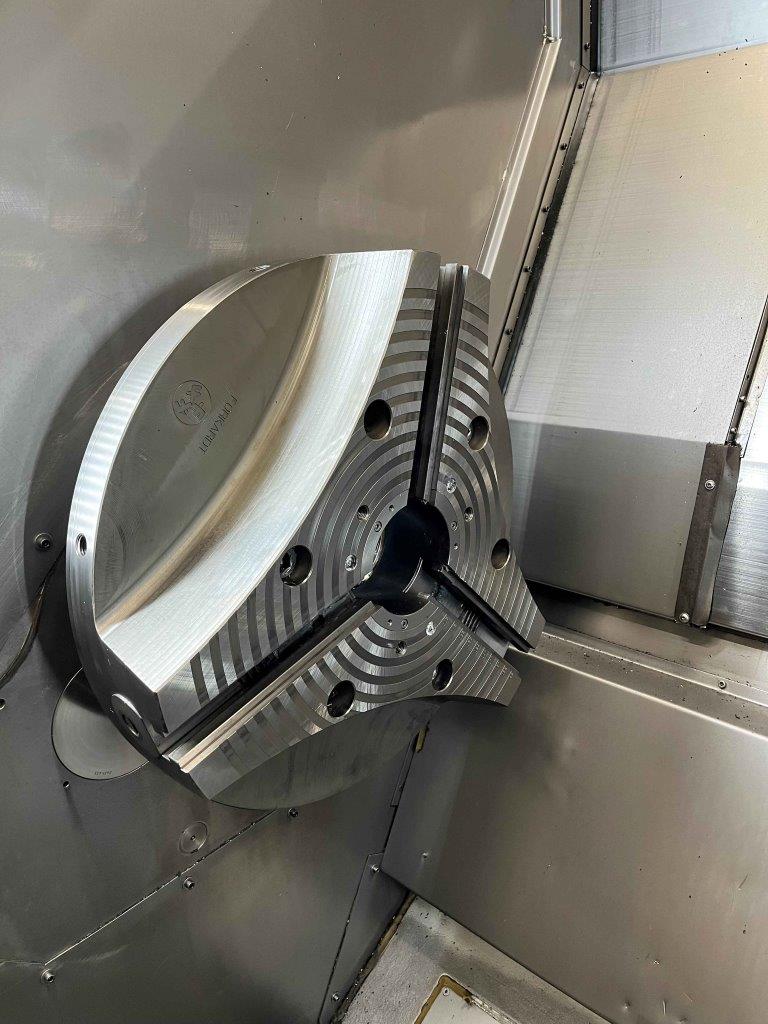

Chuck diameter: 630 mm
Chuck type: Forkardt FNC 630

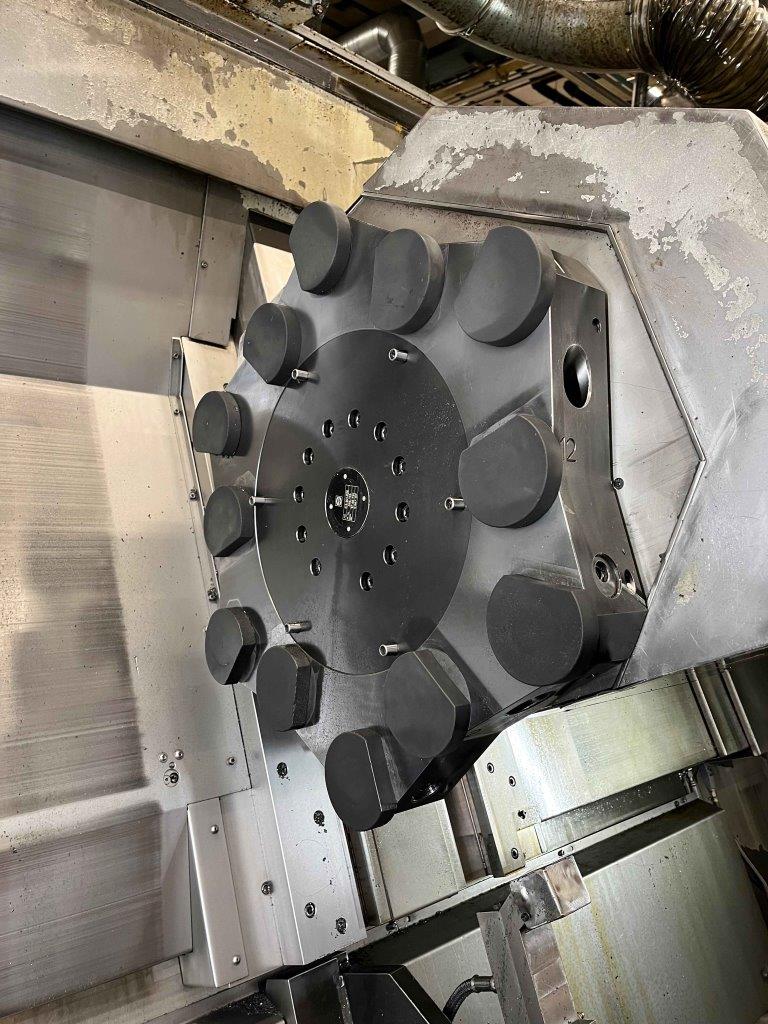

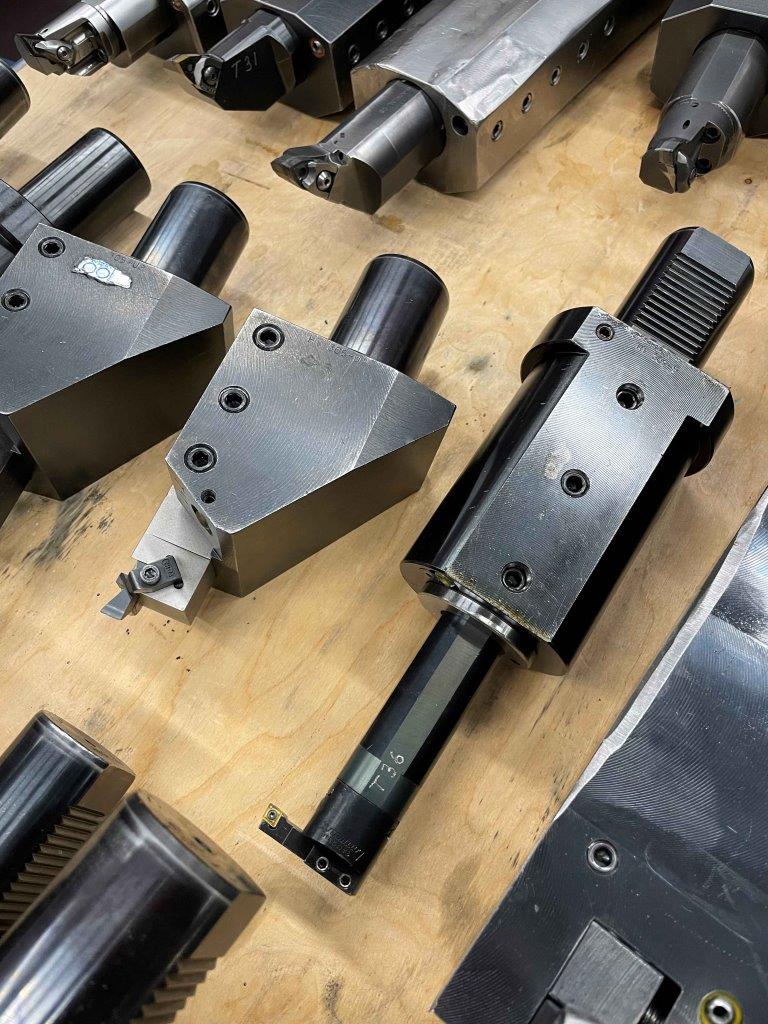

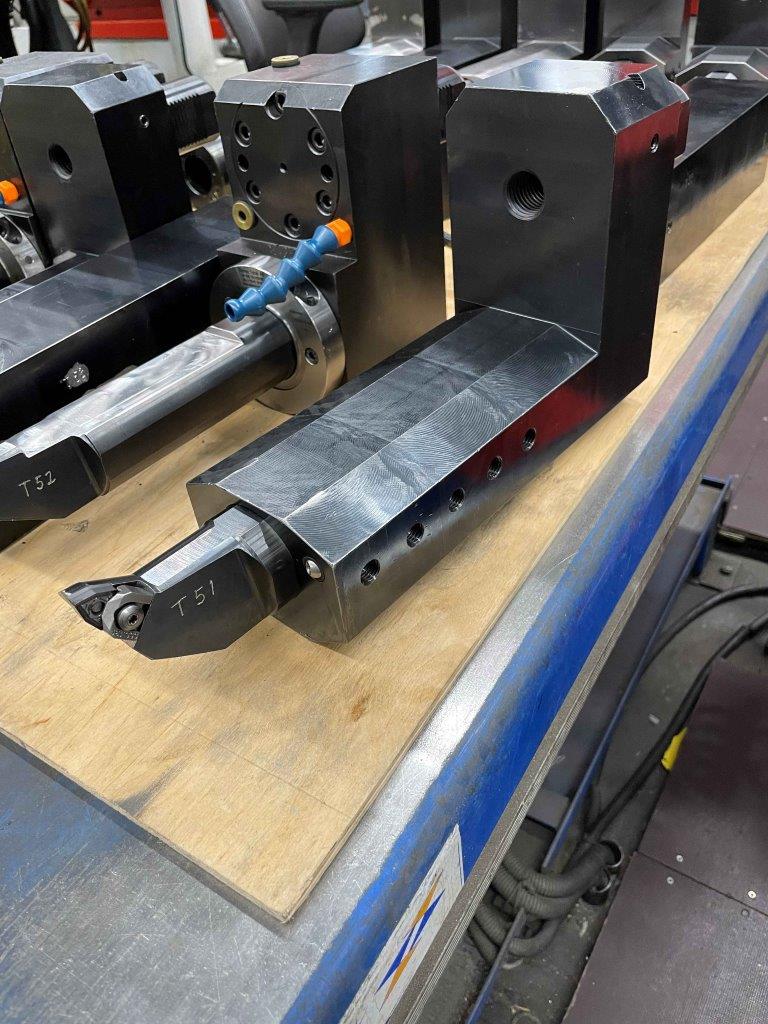

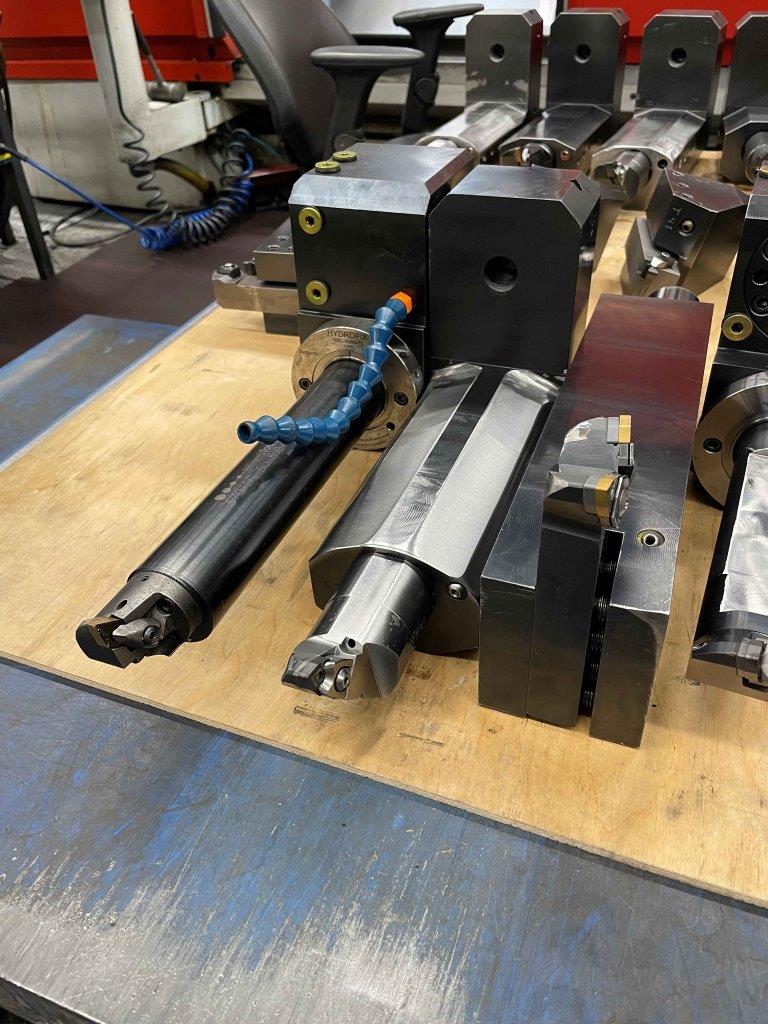

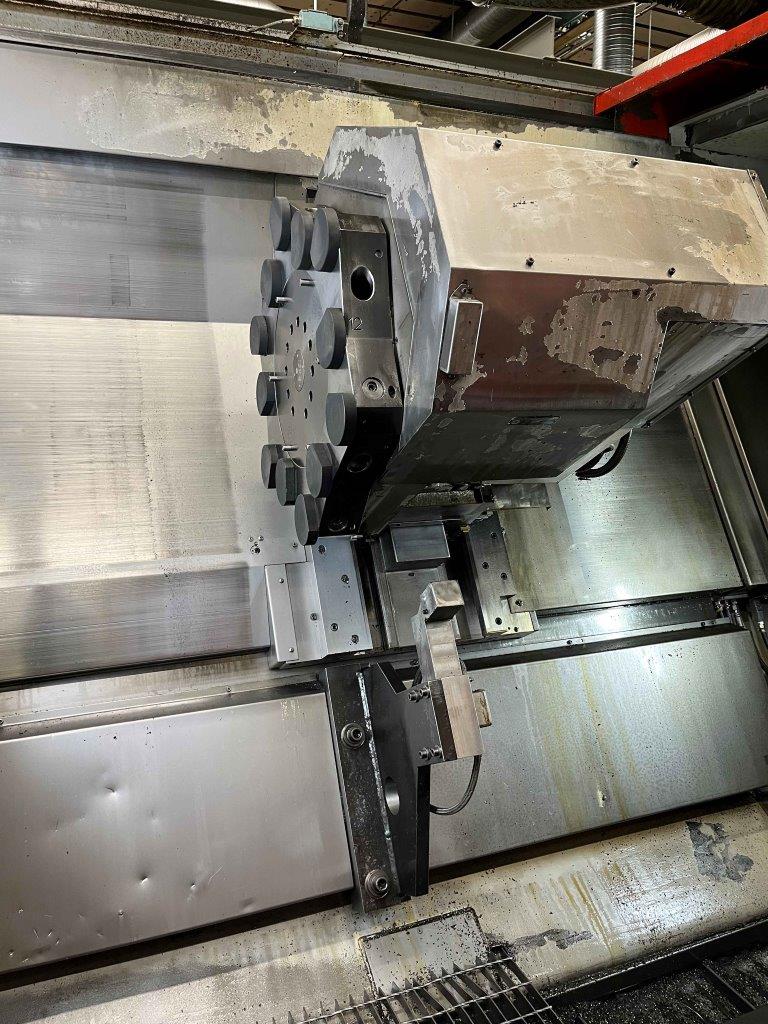

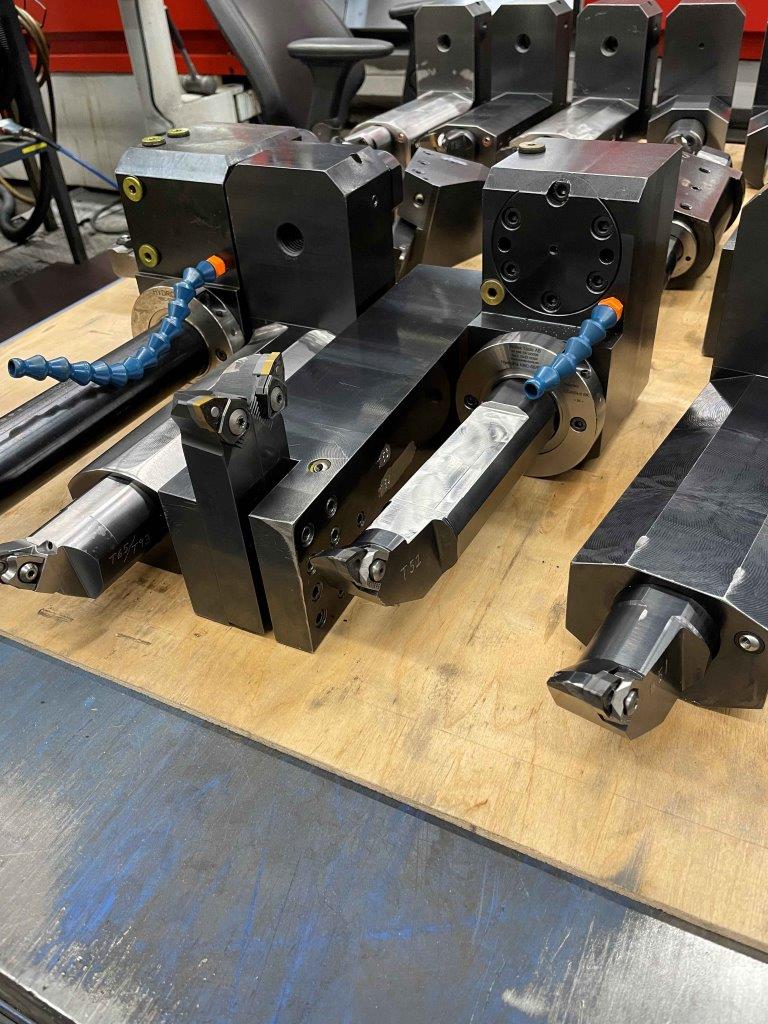

Turret tool positions: 12

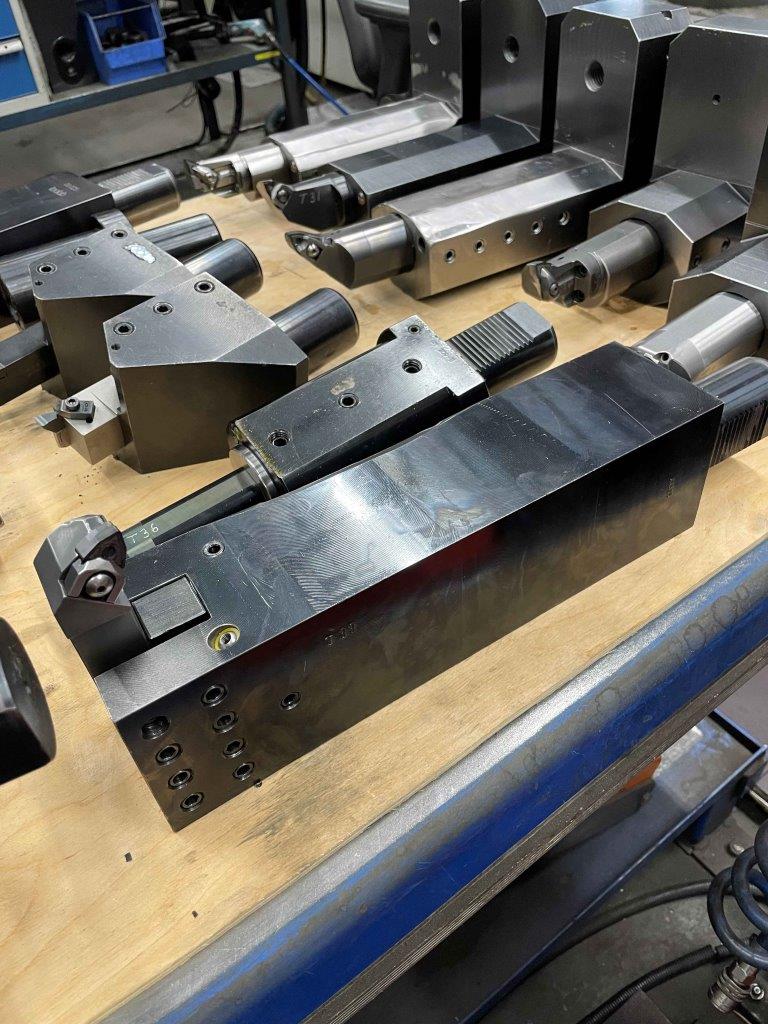

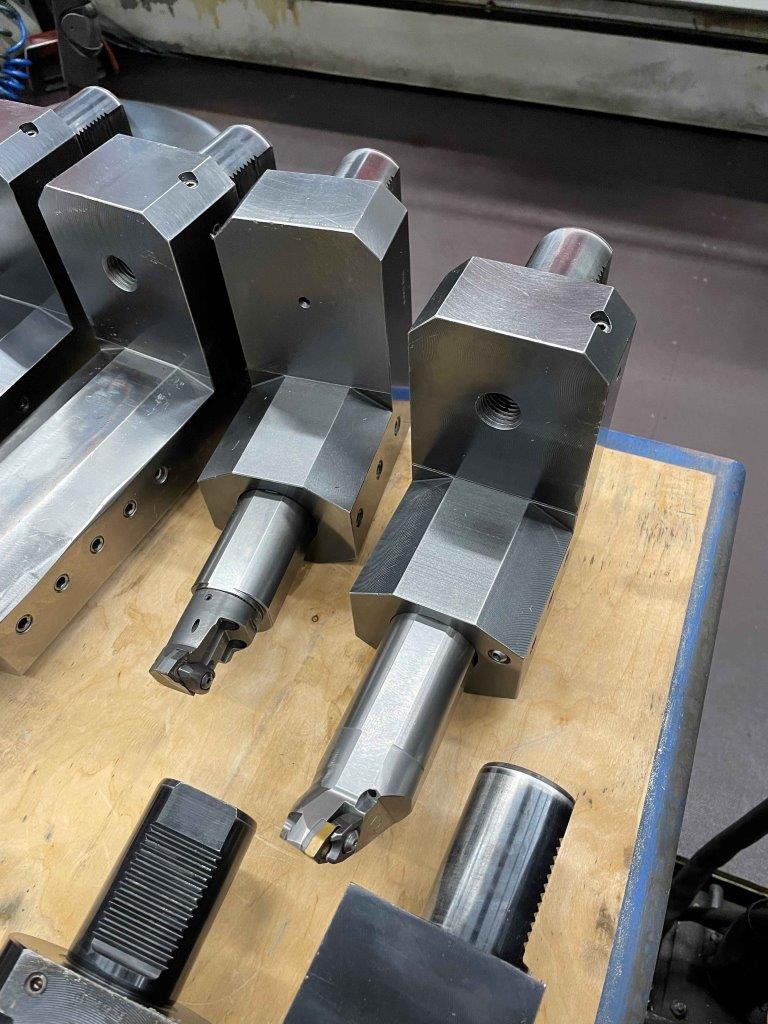

Driven/Live tool positions: 6
Tool taper: VDI 50
Driven / Live tool motor rating: n/a KW
Driven / Live tool speeds: 50 - 2000 rpm
Machine weight: approx. 13500 kg
Machine dimensions: L x W, app. 4510 x 2870 x 3200 mm

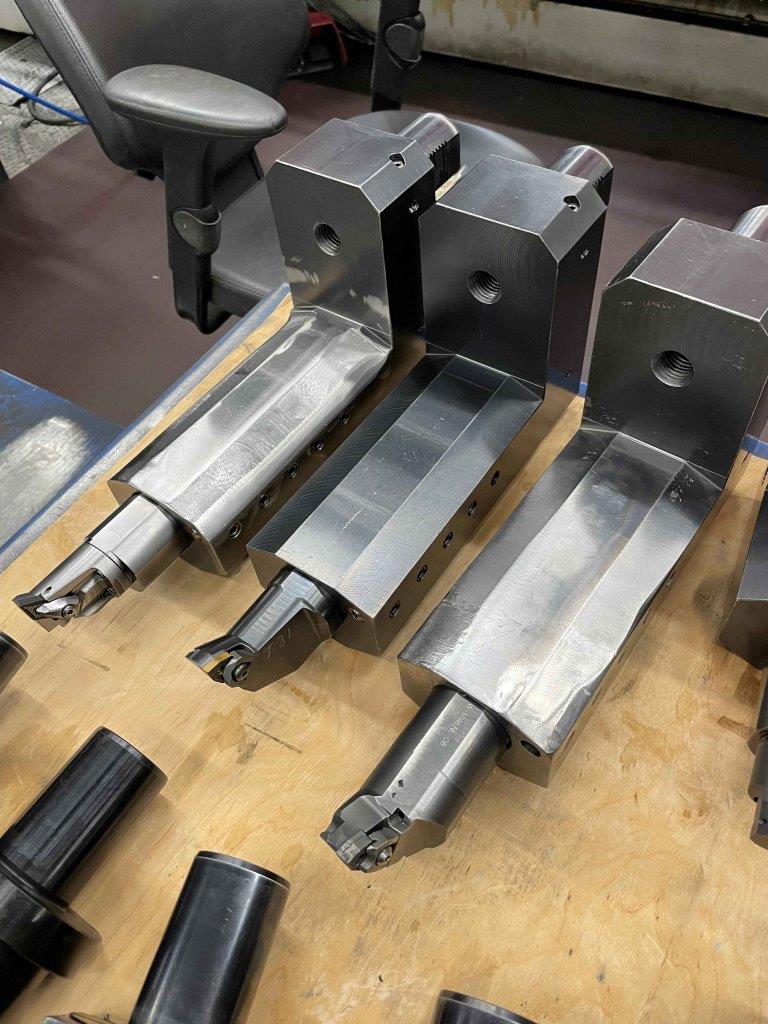

Equipped with:
Tool measuring device
Chip conveyor
Full C-Axis
Driven/Live tooling
Y-Axis
Condition: Good condition
Proposal Number: L-4838
Click here to Contact Us for more details

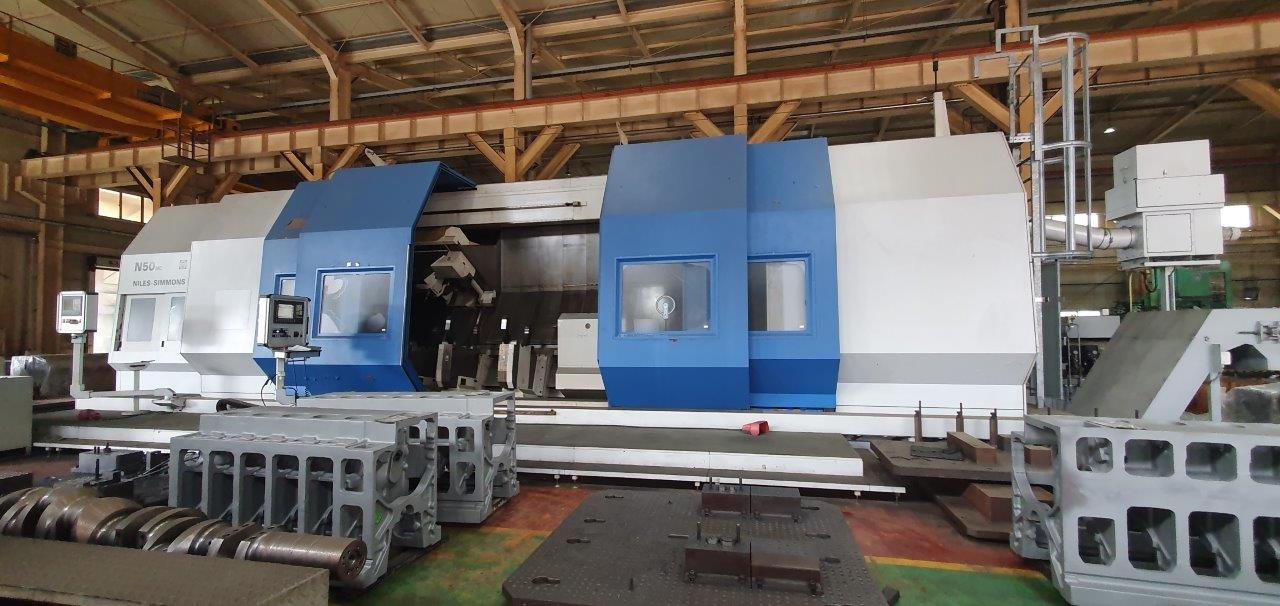

Niles Simmons N50MC/6000
5-Axis SLANT BED CNC Lathe / CNC Heavy Duty Turn-/Mill Lathe
5-Axis - Large Capacity. Built 2009. Siemens 840D CNC control. Swing Ø over the bed 1300 mm. Swing Ø over the support 1250 mm. Turning length 6000 mm. Spindle drive 78/87 KW. Spindle speeds to 1244 rpm. SMW 630 mm Chuck. C-Axis 0.001°. Single station tool carrier for Turning/Milling. Tool taper HSK-A100. Milling spindle drive 38/48.3 KW. Milling spindle speeds to 3500 rpm. Y-Axis –400/+395 mm. B-Axis –105°/+95°. 96 station tool magazine and automatic tool changer. 3 x Steady rests with NC Slides. Tailstock with NC slide. Chip conveyor.
Excellent condition – machine is basically unused.
Proposal Number: L-4628
