Jig Borer / Co-ordinate Boring Machines

CNC Double Column Vertical Spindle high precision Jig Borer - overhauled
Sip Hydroptic – 7A

Table size 1,570 x 1,024 mm. Table load 2,000 kgs . Traverses X 1400 mm, Y 1000 mm, Z 300 mm. Between columns 1,600 mm, Distance under spindle 365 – 1265 mm mm. Spindle motor 6 kW, spindle speeds 40 – 2000 rpm, spindle Ø 135 mm. With SIP rotary and rotary tilting tables, microscopes, tool holders and tooling! (EEC)

Proposal Number: V5731

Click here to Contact Us for more details

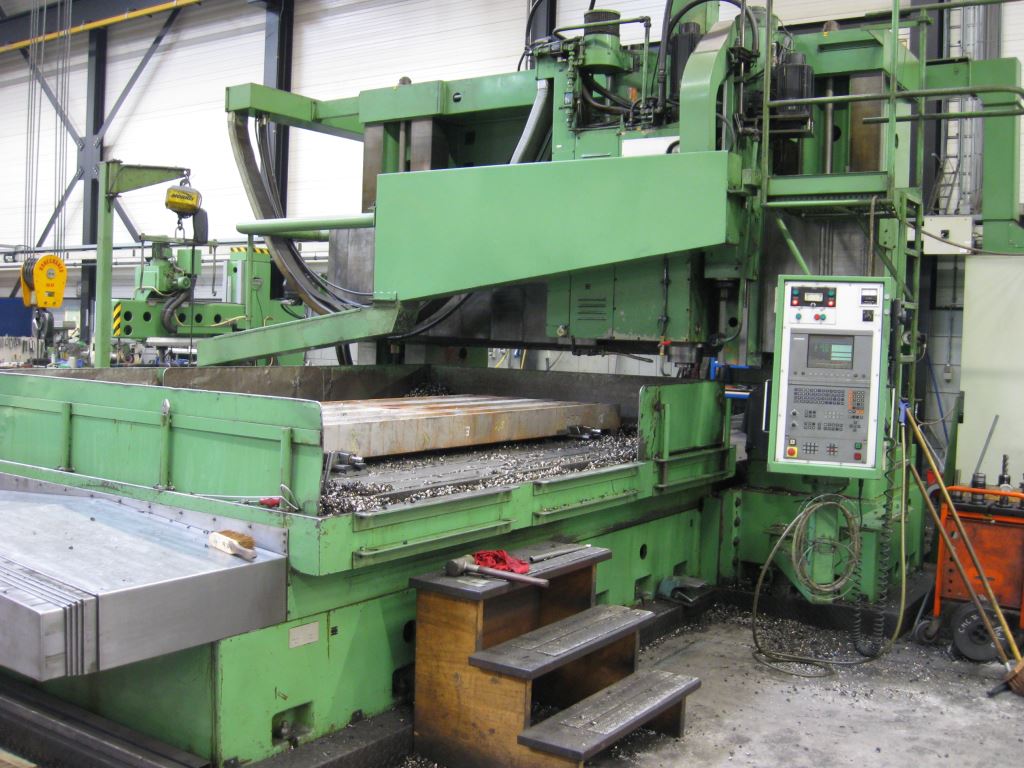

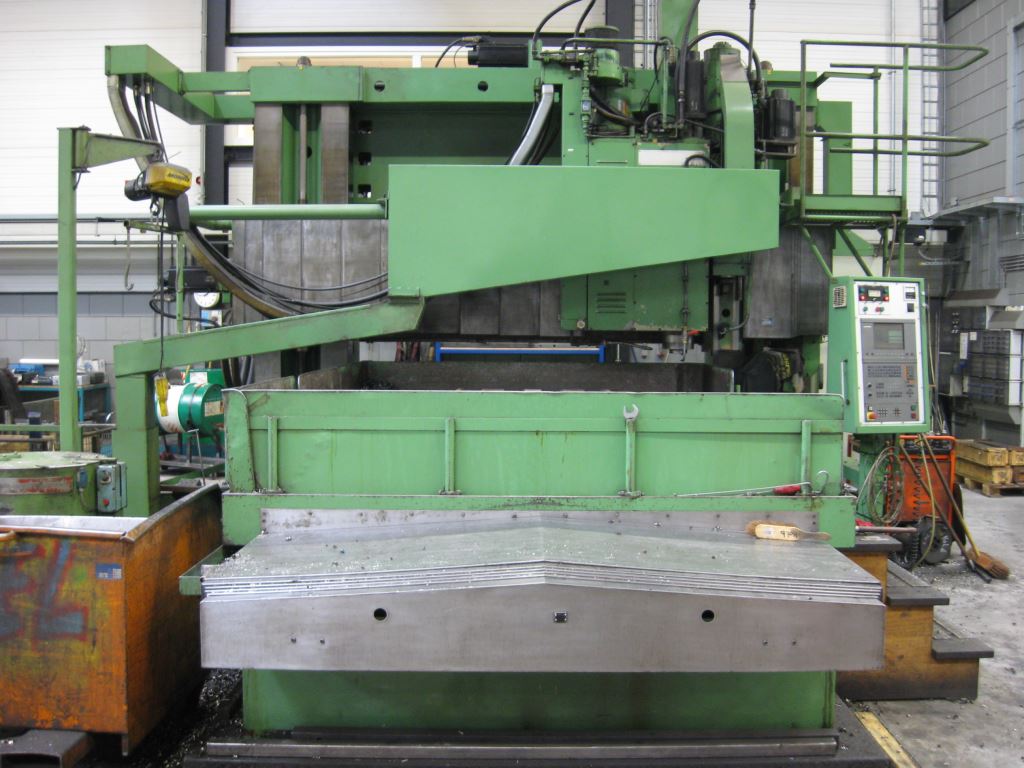

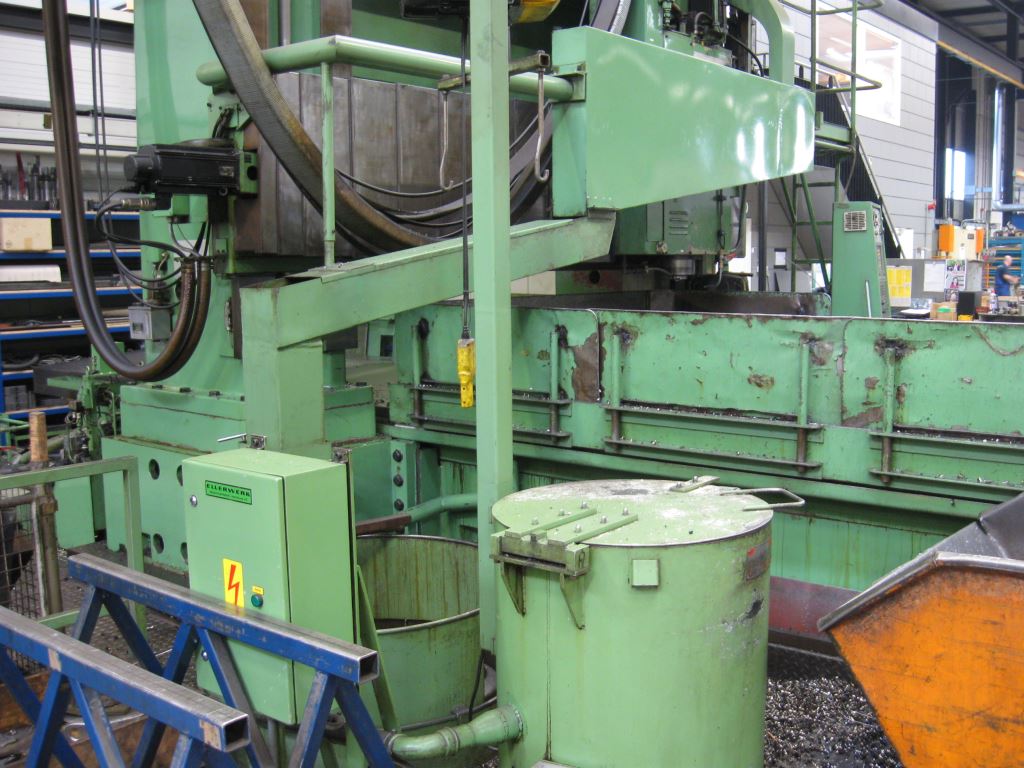

CNC Double Column Co-ordinate Boring Machine
With Deep hole drilling support
KOLB KBNG 120

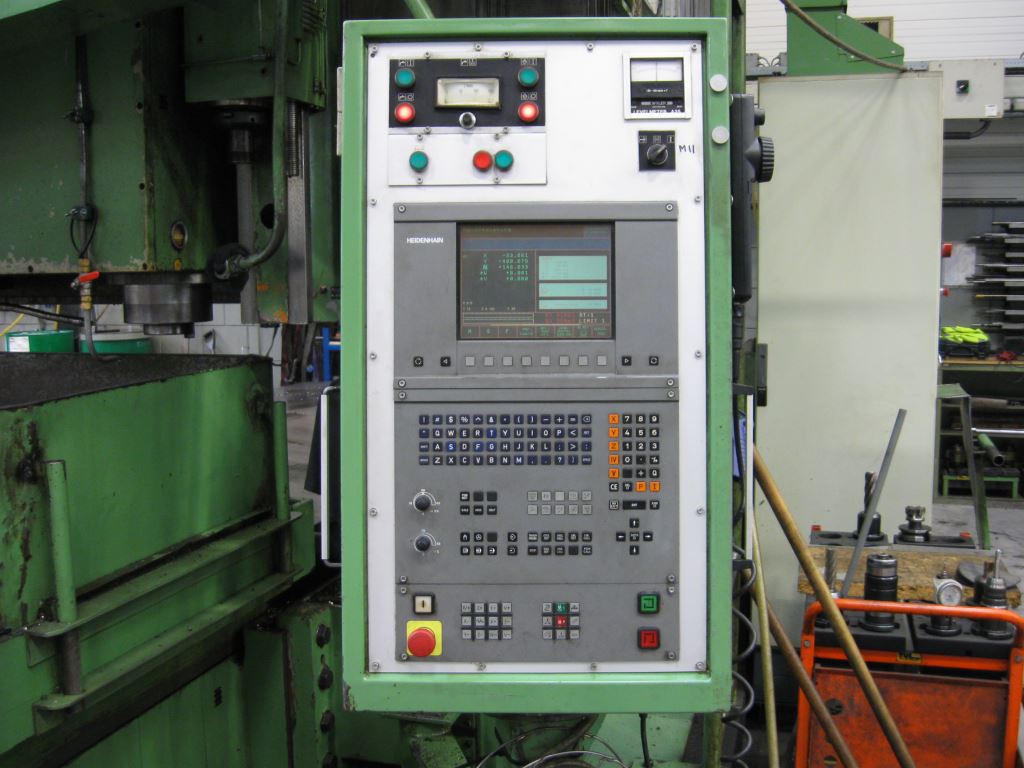

1984 machine with Heidenhain TNC426 control. Table 4250 x 2200 mm; Traverses: X 3000, Y1 2180, Y2 2000, Z 500, Z2 450 mm. Boring spindle 46 kW, 224 mm spindle Ø, Drilling / Boring / Tapping. Milling spindle Ø 250 mm, depth 5mm, capacity 730 cm³/min. Very Good condition. Attention heat exchanger manufacturers, tube sheet drilling work, deep hole drilling work – machine can do 30mm Ø x 450mm depth work with the drilling unit!

Proposal Number: VB5234

Click here
and receive a full specification by email

CNC Double column co-ordinate Borer
OERLIKON VC-6

1980/1998; Siemens 840C control; Table size 3200 x 1800 mm; between columns 2500 mm; Table load 10,000 kg; Boring spindle diameter 150 mm; Travels X 3000 mm, Y 1800 mm, Z 850 mm, W 400, U 250 mm; Spindle drive motor 15 KW; Spindle speed range 10 – 2240 rpm; 60 tool magazine positions; Spindle taper ISO 50; large tooling package, excellent condition.

Proposal Number: V(B)-4060

Click here
and receive a full specification by email

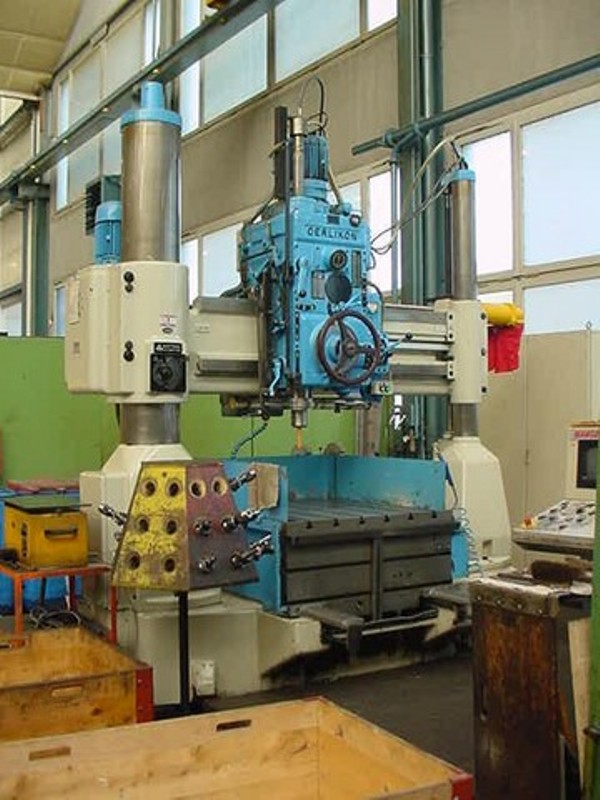

CNC Jig Borer / Double column co-ordinate Boring Machine
OERLIKON KB-4

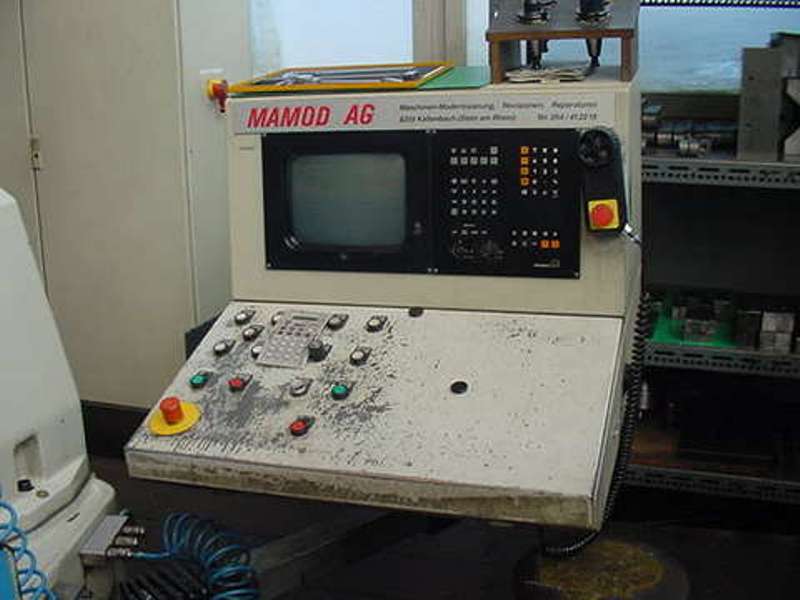

1966/1992; Heidenhain TNC 360 control; Table size 1000 x 1000 / 850 x 374 mm; between columns 1855 mm; Travels X 1400 mm, Y 900 mm, Z 850 mm, W 370, U 250 mm; Spindle speed range 30 – 1500 rpm; boring spindle dia 82 mm; large tooling package excellent condition from Swiss precision!

Proposal Number: V(B)-4059

Click here
and receive a full specification by email
